HAMPTON BAY STATESVILLE 742 379 Use And Care Manual

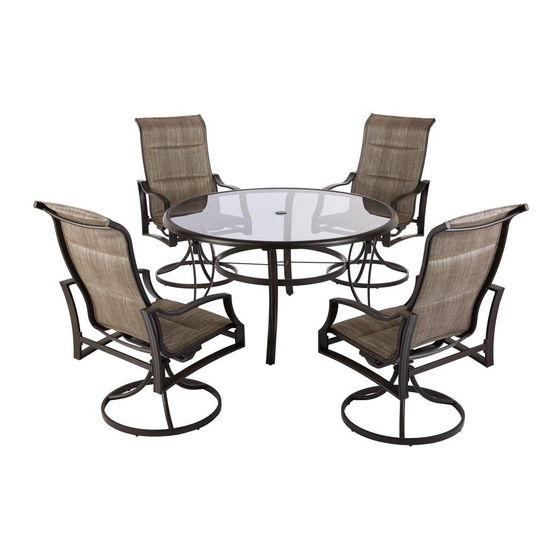

5-piece aluminum dining set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item # 742 379
Model #
FCA70357DS-ST2
USE AND CARE GUIDE
STATESVILLE 5-PIECE ALUMINUM DINING SET
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this dining set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STATESVILLE 742 379 and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY STATESVILLE 742 379

Summary of Contents for HAMPTON BAY STATESVILLE 742 379

  • Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Chair Package Contents ............4 Table Package Contents ............5 Warranty ................

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...

  • Page 4: Chair Package Contents

    Pre-Assembly (continued) CHAIR PACKAGE CONTENTS Part Description Quantity Chair bucket Left arm Right arm Support bar Front connection bar Rear connection bar Swivel base...
  • Page 5 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table top Table leg Leg connector HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Chair Assembly

    Chair Assembly Connecting the support bar to the chair bucket Place the chair bucket (A) upside down on a soft surface. Attach the support bar (D) to the bottom of the chair bucket (A) using M8x28 hex bolts (EE), M8 spring washers (FF) and M8 washers (GG).
  • Page 7 Chair Assembly (continued) Connecting the left arm to the chair bucket Attach the left arm (B) to the chair bucket (A) using M6x30 bolts (AA) and M6 washers (DD). NOTE : Loosely tighten all the bolts using the hex wrench (HH). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Chair Assembly (continued) Connecting the right arm to the chair bucket Repeat step 2 to attach the right arm (C) to the chair bucket (A). NOTE : Loosely tighten all the bolts using the hex wrench (HH).
  • Page 9 Chair Assembly (continued) Tightening all bolts, connecting the support bar to the swivel base Attach the front and the back connection bars (E & F) to the left and the right arms (B & C) using M6x18 bolts (CC) and washers (DD). NOTE : Loosely tighten all the bolts using the hex wrench (HH).
  • Page 10 Chair Assembly (continued) Tightening all bolts, connecting the support bar to the swivel base Turn the chair right side up. Fully tighten all bolts. Insert the support bar (D) into the swivel base (G).
  • Page 11 Chair Assembly (continued) Checking the chairs Ensure all connections are secure before use. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Table Assembly Connecting the table legs to the table top Place the table top (H) on a soft surface. Attach the table legs (I) to the table top (H) using M6x20 bolts (BB) and M6 washers (DD). NOTE : Loosely tighten all the bolts using the hex wrench (HH).
  • Page 13 Table Assembly (continued) Attaching the leg connector to the table legs Attach the leg connector (J) to the table legs (I) using M6x20 bolts (BB) and M6 washers (DD). Once all of the bolts and screws are in place, fully tighten the bolts and screws completely. NOTE : Loosely tighten all the bolts using the hex wrench (HH).

  • Page 14: Care And Cleaning

    Table Assembly (continued) Tightening the bolts Once all of the bolts are in place, fully tighten the bolts. Turn the table right side up. Ensure that all connections are secure before use. Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 15 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
