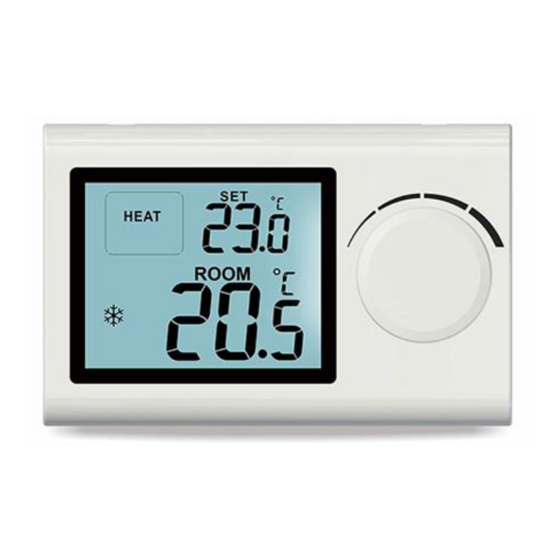

S2401 Instruction
Specification
1.Programmability: Non-programmable
2.Display Temperature Range：0°C~40°C (in 0.1°C increments)
3.Adjustable Temperature Range:5°C~35°C (in 0.5°C increments)
4.Temperature measurement accuracy:
±1°C (at 20°C)
5.Power source:
TX: 2x AAA 1.5V Alkaline Battery
6.Load Rating: 6(2)A, 230V
7.Low Battery Indicator: Display "
" when battery is less than 2.7V
8.Standby current:25uA, Lighting current ≤5.5mA
9. Dimensions: 120 x 77 x 28 mm

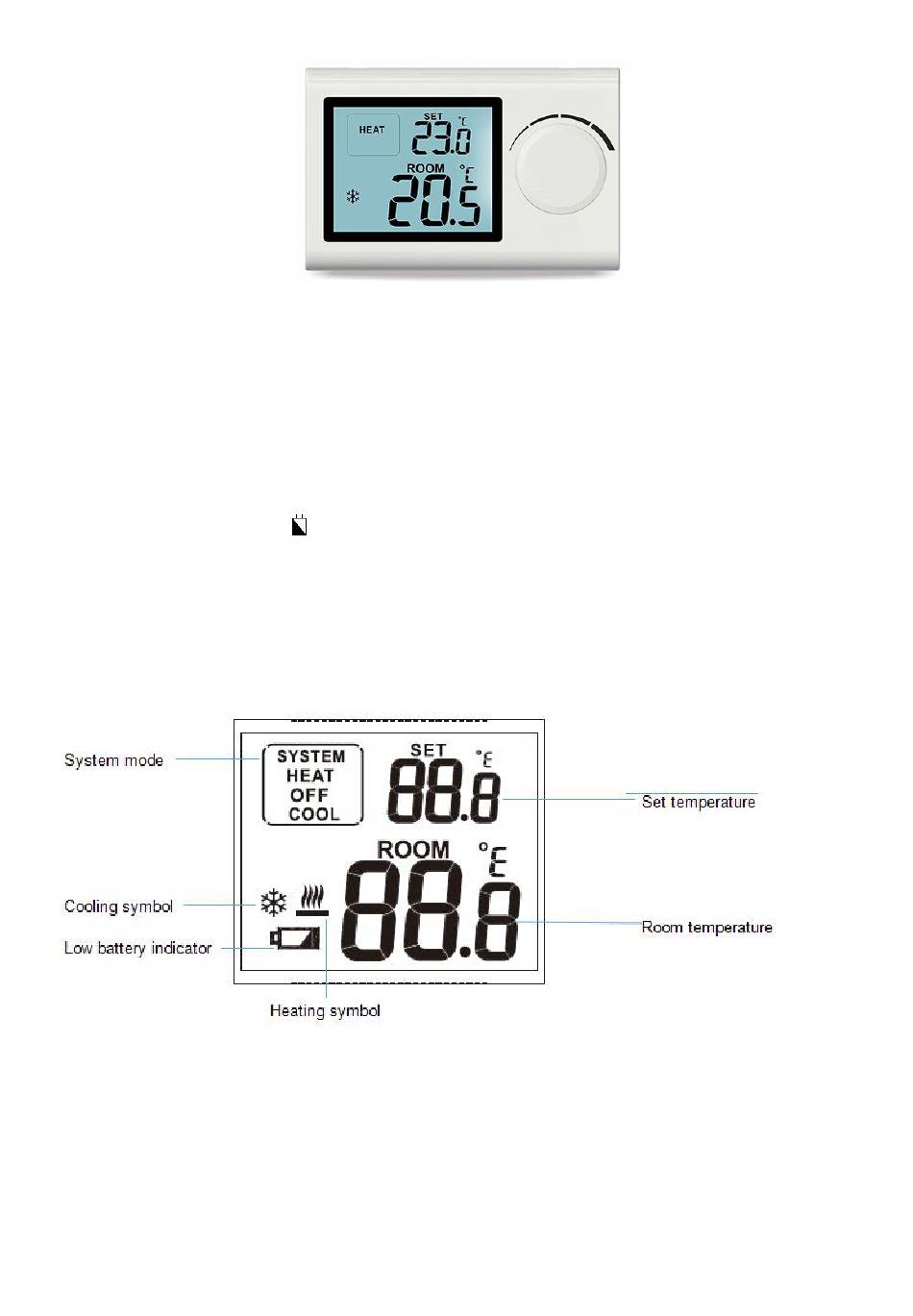

LCD Display
Backlight
The backlight will be ON by turn the dial and OFF if no any operation for 15 seconds.
Manual Setting
1. Turn the dial in clockwise to increase the temperature, and then press the dial to confirm or wait for 5 seconds to
automatically confirm.
2. Turn the dial in anti-clockwise to reduce the temperature, and then press the dial to confirm or wait for 5 seconds
to automatically confirm.
1
Wendy bani@ocstat.com
Advertisement
Table of Contents
Related Manuals for OCSTAT S2401
Summary of Contents for OCSTAT S2401
- Page 1 S2401 Instruction Specification 1.Programmability: Non-programmable 2.Display Temperature Range：0°C~40°C (in 0.1°C increments) 3.Adjustable Temperature Range:5°C~35°C (in 0.5°C increments) 4.Temperature measurement accuracy: ±1°C (at 20°C) 5.Power source: TX: 2x AAA 1.5V Alkaline Battery 6.Load Rating: 6(2)A, 230V 7.Low Battery Indicator: Display “...
- Page 2 COOL (Cooling): adjust the temperature by turn the dial OFF (Frost Protection): it will start heating when the room temperature is under 7°C Then press the dial again to confirm the running mode or wait for 10 seconds to confirm the setting automatically. Wendy bani@ocstat.com...
