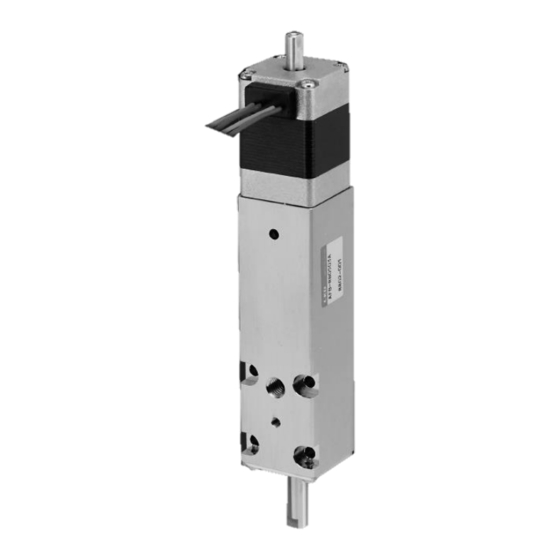

- Page 1 Active Fine Buffer AFB-RB Series INSTRUCTION MANUAL SM-A05706-A • Read this Instruction Manual before using the product. • Read the safety notes carefully. • Keep this Instruction Manual in a safe and convenient place for future reference.
-
Page 2: Preface
• Since there are a wide variety of customer applications, it is impossible for CKD to be aware of all of them. Depending on the application or usage, the product may not be able to exercise its full performance or an accident may occur due to fluid, piping, or other conditions. -
Page 3: Safety Information
SM-A05706-A SAFETY INFORMATION SAFETY INFORMATION When designing and manufacturing any device incorporating the product, the manufacturer has an obligation to ensure that the device is safe. To that end, make sure that the safety of the machine mechanism of the device, the pneumatic or fluid control circuit, and the electric system that controls such mechanism is ensured. -
Page 4: Precautions On Product Use
• For applications where life or properties may be adversely affected and special safety measures are required. (Exception is made if the customer consults with CKD prior to use and understands the specifications of the product. However, even in that case, safety measures must be taken to avoid danger in case of a possible failure.) -
Page 5: Precautions On Design And Selection
SM-A05706-A SAFETY INFORMATION Precautions on Design and Selection WARNING Do not use the product as a valve for ensuring safety such as an emergency shut-off valve. The product is not designed to be used as a valve for ensuring safety such as an emergency shut-off valve. -
Page 6: Table Of Contents
SM-A05706-A CONTENTS CONTENTS PREFACE ........................... i SAFETY INFORMATION ....................ii Precautions on Product Use ..................iii Precautions on Design and Selection ................iv CONTENTS ........................v PRODUCT OVERVIEW ..................... 1 Product Features ....................1 Part Name ......................1 Model Number Indication ..................2 Specifications ...................... -
Page 7: Product Overview
The degree of vacuum suction for holding the workpiece is maintained at the shaft end. Same magnet is used in CKD’s FBU Series. It generates buffer force. Ring magnet The 2-phase or 5-phase motor manufactured by Oriental Motor Co., Ltd. or the Stepping motor 2-phase motor manufactured by MinebeaMitsumi Inc. -
Page 8: Model Number Indication
SM-A05706-A 1. PRODUCT OVERVIEW 1.3 Model Number Indication Although the motor is a special order model number for AFB-RB, refer to the above model number to check motor specifications. 1.4 Specifications Model AFB-RB Item 0.5 ± 0.2, 1.0 ± 0.2 (selectable) Buffer force Note 1 ±15% or less... -
Page 9: Dimensions
SM-A05706-A 1. PRODUCT OVERVIEW 1.5 Dimensions 1.6 Description of Operation • The shaft rotates synchronously with the rotation of the stepping motor. (The motor driver, controller, and DC power supply for driving the stepping motor are not supplied with the product. They are to be supplied, wired, and controlled by the customer.) •... -
Page 10: Installation
SM-A05706-A 2. INSTALLATION 2. INSTALLATION WARNING Make sure that a qualified person (who fully understands the system and has read this Instruction Manual thoroughly) performs Installation, piping, and wiring. Incorrect installation and piping may cause problems not only with the product but also with the customer’s system and may result in death or serious injury to the user. -
Page 11: Unpacking
SM-A05706-A 2. INSTALLATION 2.2 Unpacking CAUTION Unpack the product in a clean and dust-free environment just before installation. If the product is taken out of the plastic bag before ready to begin installation, foreign matters may enter the product and cause a failure or malfunction. Do not store the product where water can splash, condensation may occur, or atmosphere contains corrosive gas or fluids. -
Page 12: Piping
SM-A05706-A 2. INSTALLATION 2.4 Piping CAUTION Do not apply stress such as bending, tension, and compression to the body when piping. Align the length of the tubes so that they are not bent when connecting. Bent tubes may cause operation faults. Check that there are no defects such as dust, scratches, and burrs on the seal before tightening the fitting. -
Page 13: Motor
SM-A05706-A 2. INSTALLATION 2.5.1 Motor Connect the motor according to one of the following diagrams. 2-phase motor 5-phase motor 2-phase motor manufactured by Oriental Motor manufactured by Oriental Motor manufactured by MinebeaMitsumi Motor model no.: PKP213D05 Motor model no.: PK513PB Motor model no.: 08PM-K049BSTDCN 1/Black 1/Black... -
Page 14: Usage
3. USAGE 3.1 Safety Instructions WARNING Consult CKD about the specifications before using the product outside the designated specifications or for a special application. Turn off the power before moving the product. Turn off the power when power outage occurs. -
Page 15: Jig
SM-A05706-A 3. USAGE 3.1.1 Jig CAUTION Make sure that the total weight of the jig and the workpiece is within the specifications. The product may not operate properly when a jig that exceeds the specified weight is attached. Attach a jig that is balanced and non-eccentric to the shaft. If the jig is not balanced, the product may not operate properly. -
Page 16: Maintenance And Inspection
SM-A05706-A 4. MAINTENANCE AND INSPECTION 4. MAINTENANCE AND INSPECTION DANGER Do not disassemble or modify the product. Disassembling the product will void the warranty. WARNING Secure sufficient space for maintenance and inspection. Thoroughly read and understand this Instruction Manual before maintenance and inspection. Turn off the power before maintenance and inspection. -
Page 17: Troubleshooting
There is connection failure or disconnection of Check the wiring and the power supply. power supply and motor lead wires. Motor does not energize. If you have any other questions or concerns, contact your nearest CKD sales office or distributor. 2019-03-11... -
Page 18: Warranty Provisions
If the product specified herein fails for reasons attributable to CKD within the warranty period specified below, CKD will promptly provide a replacement for the faulty product or a part thereof or repair the faulty product at one of CKD’s facilities free of charge.
