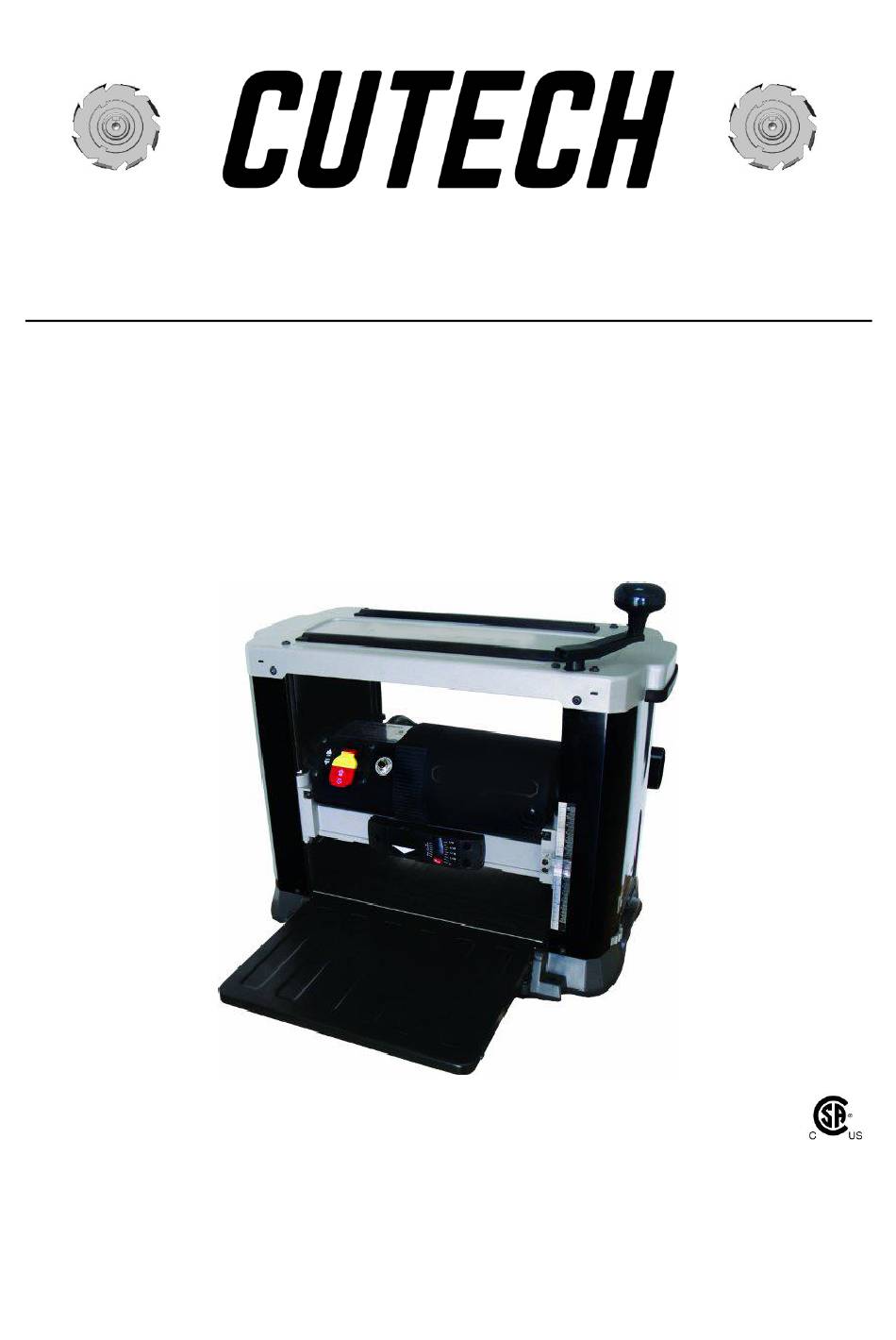

- Page 1 User Manual Read this manual before using machine to avoid serious injury and damage. 40300H-CT 13” SPIRAL CUTTERHEAD PLANER For technical support, email support@cutechtools.us or call at 858-886-7333 VER. 21.05.20...
-
Page 2: Table Of Contents
The drawings, illustrations, photographs, and specifications in this user manual represent your machine at time of print. However, changes may be made to your machine or this manual at any time with no obligation to CUTECH. -
Page 3: Warranty
2 YEAR LIMITED WARRANTY CUTECH warrants its machinery to be free of defects in workmanship and materials for a period of two (2) years from the date of the original purchase by the original owner. This warranty applies to products sold in the United States only. -
Page 4: Product Specifications
PRODUCT SPECIFICATIONS Feed speed F/min 26 FPM Cutterhead speed RPM 10,000 Motot RPM 23000+/-10% (No Load) 2” Cutterhead diameter Max planer capacity 6" x 13" Max depth of cut @ 6” 1/8" Max depth of cut @ 13” 1/16" Cutter inserts qty Motor power input 120 V, 60 Hz, AC Only, 15 Amp Shipping Weight... -
Page 5: Featureidentification
FEATURE IDENTIFICATION Raise/Lower Handle Power Switch Dust Port Depth-of-Cut Indicator Thickness Scale Infeed Table... -
Page 6: General Safety
GENERAL SAFETY TO AVOID serious injury and damage to the machine, read and follow all Safety and Operating Instructions before assembling and operating this machine. This manual is not totally comprehensive. It does not and can not convey every possible safety and operational problem which may arise while using this machine. - Page 7 ALWAYS unplug the machine from the electrical receptacle when making adjustments, changing parts or performing any maintenance. AVOID ACCIDENTAL STARTING. Make sure that the power switch is in the “OFF” position before plugging in the power cord to the electrical receptacle. AVOID a dangerous working environment.
- Page 8 soled shoes. Keep floor clear of debris, grease, and wax. MAINTAIN all machines with care. ALWAYS KEEP machine clean and in good working order. KEEP all blades and tool bits sharp. NEVER leave a machine running, unattended. Turn the power switch to the OFF position. DO NOT leave the machine until it has come to a complete stop.
- Page 9 1121 Spring Lake Drive Itasca, IL 60143-3201 American National Standards Institute 25 West 43rd Street, 4th floor New York, NY 10036 www.ansi.org ANSI 01.1 Safety Requirements for Woodworking Machines, and the U.S. Department of Labor regulations www.osha.gov...
-
Page 10: Product Safety
DO NOT handle the plug or jointer with wet hands 10. USE only accessories as described in this manual. USE accessories only recommended by CUTECH. 11. DO NOT pull the jointer by the power cord. NEVER allow the power cord to come in contact with sharp edges, hot surfaces, oil or grease. - Page 11 embedded in the wood, loose knots, or knots that may become loose during operation. 23. DO NOT attempt to remove jams until power is disconnected and all moving parts have come to a complete stop. 24. MAKE SURE that there is adequate operating space on both the infeed and outfeed sides of the jointer before operating.
-
Page 12: Grounding Instructions
GROUNDING INSTRUCTIONS This machine MUST BE GROUNDED while in use to protect the operator from electric shock. In the event of a malfunction or breakdown, GROUNDING provides the path of least resistance for electric current and reduces the risk of electric shock. The plug MUST be plugged into a matching electrical receptacle that is properly installed and grounded in accordance with ALL local codes and ordinances. - Page 13 USE ONLY a 3-wire extension cord that has a 3-prong grounding plug and a 3-pole receptacle that accepts the machine’s plug. If you are using an extension cord outdoors, be sure it is marked with the suffix “W-A” (“W” in Canada) to indicate that it is acceptable for outdoor use. Make certain the extension cord is properly sized, and in good electrical condition.
-
Page 14: Unpacking & Inventory
If any parts are missing, do not attempt to plug in the power cord and turn “ON” the machine. The machine should only be turned “ON” after all the parts have been obtained and installed correctly. For missing parts, contact CUTECH at 858-886-7333. Handle... -
Page 15: Assembly
ASSEMBLY MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE. ATTACHING DEPTH ADJUSTMENT HANDLE 1. Attach the depth adjustment handle (A) to the shaft (B) and fasten in place with 1 Hex Soc Head screw. Tighten screw using supplied hex wrench. SEE FIG 1. FIG 1 ATTACHING DUST PORT The Dust Port is to be used when the planer to be connected to a dust collector. - Page 16 SECURING PLANER TO A TABLE OR WORKBENCH During operation, if there is any tendency for the planer to tip over, slide or walk, the planer MUST be secured to a supporting surface such as a workbench or table. Four holes are provided (2 are shown at (A)) to securely mount the planer. The surface you are mounting the planer to should be perfectly flat.
-
Page 17: Adjustment
ADJUSTMENTS MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE. LEVELING EXTENSION TABLES The extension tables must be level with the planer table. To check the extension tables and adjust if necessary: Lay a straight edge (A) on the planer table (C) with one end of the straight edge over the infeed table (B). - Page 18 FIG 5 NOTE: when lowering the head assembly, ensure the quick set thickness indicator is in the lowest position. Failure to do so may result in excess downward pressure and cause damage to the adjustment rod and upper frame. Refer to FIG 5 crank handle, FIG 11 indicator.
- Page 19 Clean all dust and dirt off the cutter insert and the cutterhead pocket from which the cutter insert was removed, and replace the cutter insert so a fresh, sharp edge is facing outward. If available, try using pitch and gum remover to be sure all of the wood residue is off the cutterhead and cutter insert before attempting to rotate them.
-
Page 20: Operations
operations of this planer. However, it is in no way comprehensive of every planer operation. It is strongly recommended that you read books, trade magazines, or get formal training to maximize the potential of your planer while minimizing the risks. NOTICE: This planer is designed to process wood ONLY. - Page 21 FIG 10 QUICK SET THICKNESS INDICATOR The Quick Set Thickness Indicator (A) provide a simple way to set the finished thickness of a workpiece. The scale come in settings of 1/8”, 1/4”, 1/2”, 3/4”. Rotate the wheel of the indicator to the desired finished thickness. Use this feature when thickness planning multiple workpieces to ensure a uniform thickness of all workpieces.
- Page 22 GETTING PREPARED It is always a good idea to use a piece of scrap wood for your first planing attempt. Also, before each use of the planer, make it a habit of checking for loose fasteners, fittings or hardware. Turn the planer ON and allow it to reach full speed. Pay close attention to any excessively loud noises that may be coming from the planer or any excessive vibration.
- Page 23 If a smooth cut is not obtained, try reversing the board for proper grain orientation. AVOIDING SNIPE Snipe, gouging or depression of the board at the ends, can occur when the board is not properly supported. For workpieces longer than 4 ft, greater care must be taken to reduce the problem because the additional length of the workpiece translates into more unsup- ported weight pulling down on the end of the board.
-
Page 24: Maintenance
MAINTENANCE MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE. Your planer should provide you with a long time of service provided you take the time to perform the following maintenance operations. Clean Sawdust buildup and other debris can cause the tool to place inaccurately. Periodic cleaning and waxing is needed for accurate, precision planning. - Page 25 FIG 12 Remove the side panel to expose the gear box cover (B). SEE FIG 13. FIG 13 Remove the two screws order remove the gear box cover and access the gear box Place a light coat of multi purpose grease on the teeth of the gears (D) and a light coat of spray lubricant on the chain (E).
- Page 26 FIG 14 Replace all covers and guards that you removed once lubrication is complete. BRUSH REPLACEMENT Brush life will vary depending on the load placed on the motor. The brushes should be inspected every 10-15 hours of use. To inspect Remove the Brush Holders, one of which is shown at (A).
- Page 27 Once the brush has been removed, inspect the carbon (B), the spring (C), and the wire (D). SEE FIG 16. FIG 16 If the carbon of either brush is worn down to 3/16” or less, both brushes should be replaced. Also if the spring or wire are burned or damaged in any way, both brushes should be replaced.
-
Page 28: Troubleshooting
TROUBLESHOOTING GUIDE Motor and Machine Operation PROBLEM LIIKELY CAUSE SOLUTION Snipe Dull Blades Replace or turn blades (depressions at Infeed or outfeed tables out of Readjust tables end of workpiece) adjustment. Torn grain. Too deep a blade setting. Reduce the depth of cut Workpiece being fed against Feed other end of board first. - Page 29 PARTS...
- Page 31 ITEM DESCRIPTION Size HANDLE ASSEMBLY HEX SOC HD SCR M5xP0.8x20L HEX SOC HD CAP SCR M6xP1.0x8L T=1.2 ㎜ TOP COVER LEAD SCREW BUSHING BEARING RATAINER HANDLE BAR 60-80° SPACER NYLOCK SCR SOC SET CUP PT M5xP0.8x5L ELEVATION NUT RIGHT SIDE COVER T=1.0mm SCALE t=0.3mm...
- Page 32 ITEM DESCRIPTION Size NYLOCK HEX SOC HD SCR M4xP0.7x12L T=1.5 ㎜ BASE GUIDE RAIL LEFT IDLE WHEEL IDLE WHEEL SHAFT HEX SOC HD SCR M5xP0.8x25L T=1.0 ㎜ LEFT SIDE COVER PAN HD SCR W/WASH M4xP0.7x6L T=4 ㎜ TABLE SUPPORT SPRING WASHER TABLE BUSHING PAN HD SCR M6xP1.0x16L...
- Page 33 ITEM DESCRIPTION Size POWER CORD CLAMP ADAPTER HEX SOC HD CAP SCR M6xP1.0x10L T=1.0 ㎜ DEFLECTOR UPPER FRAME NYLOCK CONE SET SCR M5xP0.8x6L CUTTERHEAD PINION GEAR HEX SOC HD CAP SCR M6xP1.0x12L T=3.0 ㎜ MOTOR MTG PLATE CURSOR H=15 PAN HD SCR M3xP0.5x15L PAN HD SCR L/WASH M5xP0.8x10L...
- Page 34 ITEM DESCRIPTION Size T=1.6 ㎜ BEARING BLOCK RETAINER INFEED ROLLER MOTOR PULLEY PAN HD SCR W/WASH M4xP0.7x10L CUSHION ROLLER ASSY MOTOR ASSY BRUSH BRUSH CAP M20*P1.0 SWITCH HT-18...
