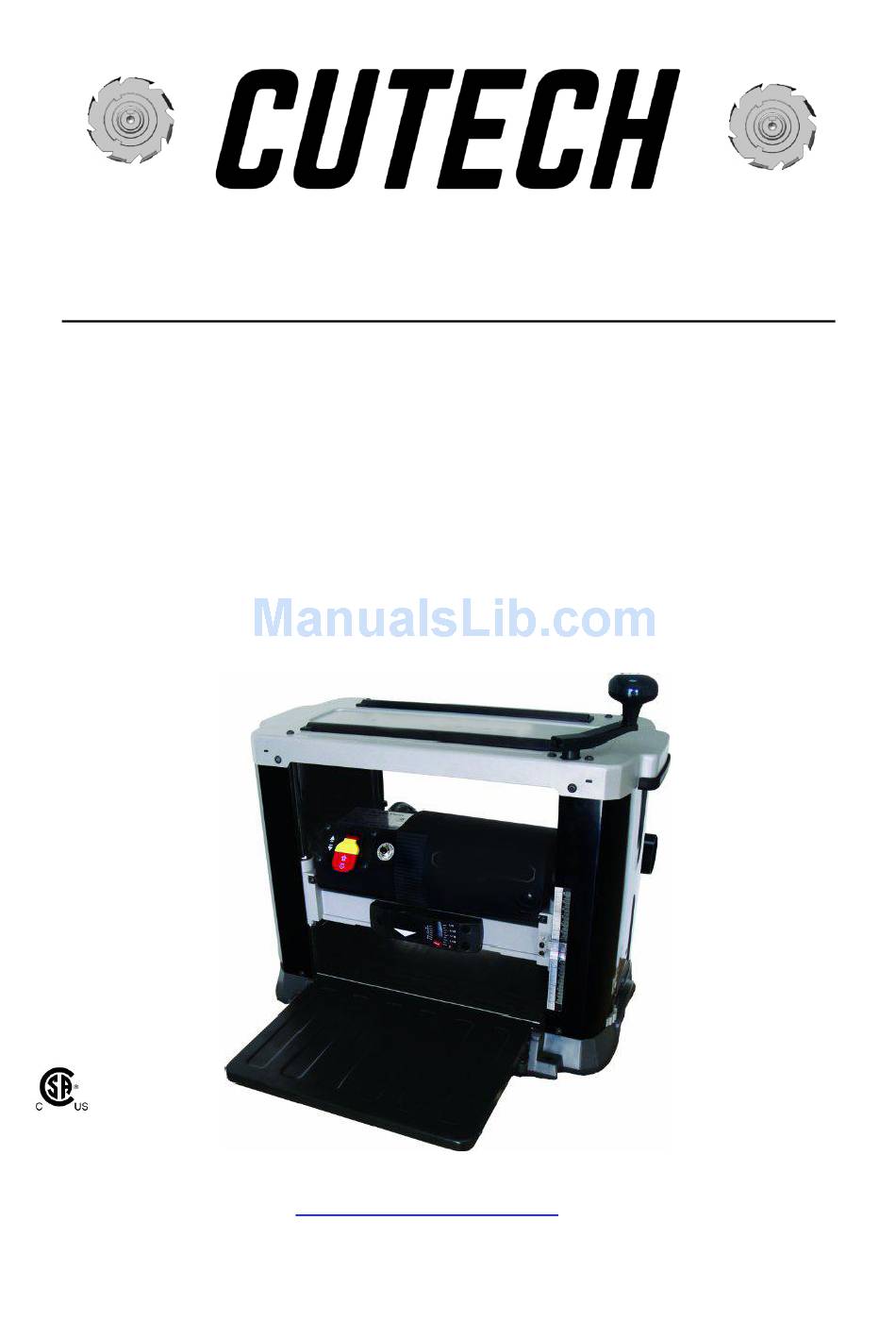

- Page 1 User Manual Read this manual before using machine to avoid serious injury and damage 40300H-CT 13” PORTABLE PLANER with Spiral Style Cutterhead techservices@cutechtool.com For technical support, email or call at 877-568-8879 VER. 15.07.07...
-
Page 2: Table Of Contents
The drawings, illustrations, photographs, and specifications in this user manual represent your machine at time of print. However, changes may be made to your machine or this manual at any time with no obligation to CUTECH. -
Page 3: Warranty
The warranty card must be submitted to CUTECH within 90 days from the date of the purchase with a copy of the sales receipt to have your warranty in effect. -
Page 4: Product Specifications
PRODUCT SPECIFICATIONS Feed speed F/min 26 FPM Cutterhead speed RPM 10,000 Motor RPM 23000+/-10% (No Load) 2” Cutterhead diameter Max planer capacity 6" x 13" Max depth of cut @ 6” 1/8" Max depth of cut @ 13” 1/16" Minimum Length of Stock 7”... -
Page 5: Feature Identification
FEATURE IDENTIFICATION Raise/Lower Handle Power Switch Dust Port Depth-of-Cut Indicator Quick Set Indicator Thickness Scale Infeed Table... -
Page 6: General Safety
GENERAL SAFETY NOTE: The WARNING! and CAUTION! symbols indicate a potentially hazardous situation which, if not avoided, COULD result in death or serious injury. READ THIS MANUAL completely before assembling and operating this machine. WARNING! TO AVOID serious injury, death, or damage to the machine, please read, understand, and follow, all Safety and Operating Instructions before assembling and operating this machine. - Page 7 GENERAL SAFETY (cont.) ALWAYS keep the work area clean, well lit, and organized. DO NOT work in an area that has slippery floor surfaces from debris, grease, and wax. CAUTION! ALWAYS unplug the machine from the electrical receptacle when making adjustments, changing parts or performing any maintenance.
- Page 8 GENERAL SAFETY (cont.) KEEP protective guards in place and in working order. CAUTION! MAINTAIN your balance. DO NOT extend yourself over the tool. Wear oil resistant rubber soled shoes. Keep floor clear of debris, grease, and wax. MAINTAIN all machines with care. ALWAYS KEEP machine clean and in good working order. KEEP all blades and tool bits sharp.
-
Page 9: Product Safety
WARNING! DO NOT handle the plug or planer with wet hands USE only accessories as described in this manual and recommended by CUTECH. 10. DO NOT pull the planer by the power cord. NEVER allow the power cord to come in contact with sharp edges, hot surfaces, oil or grease. - Page 10 PRODUCT SAFETY (cont.) 14. ENSURE that the machine sits firmly before using. If the machine wobbles or is unstable, correct the problem by using shims or blocks prior to operation. 15. This machine is designed to process wood ONLY. WARNING! NEVER position fingers or thumbs near the infeed/ outfeed rollers or cutterhead.
-
Page 11: Grounding Instructions
GROUNDING INSTRUCTIONS WARNING! This machine MUST BE GROUNDED while in use to protect the operator from electric shock. In the event of a malfunction or breakdown, GROUNDING provides the path of least resistance for electric current and reduces the risk of electric shock. The plug MUST be plugged into a matching electrical receptacle that is properly installed and grounded in accordance with ALL local codes and ordinances. - Page 12 GROUNDING INSTRUCTIONS (cont.) Make certain the extension cord is properly sized, and in good electrical condition. Always replace a worn or damaged extension cord immediately or have it repaired by a qualified person before using it. Protect your extension cords from sharp objects, excessive heat, and damp or wet areas. MINIMUM RECOMMENDED GAUGE FOR EXTENSION CORDS (AWG) 115 VOLT OPERATION ONLY 25’...
-
Page 13: Unpacking & Inventory
If any parts are missing, do not attempt to plug in the power cord and run the machine. The machine should only be turned “ON” after all the parts have been obtained and installed correctly. For missing parts, contact CUTECH at 877-568-8879. Raise / Lower Handle... -
Page 14: Assembly
ASSEMBLY WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE. ATTACHING DEPTH ADJUSTMENT HANDLE Attach the raise/lower adjustment handle (A) to the shaft (B) and fasten in place with 1 Hex Socket Head screw. Tighten screw using supplied hex wrench. SEE FIG 1. FIG 1 ATTACHING DUST PORT The Dust Port is to be used when the planer to be connected to a dust collector. - Page 15 ASSEMBLY (cont.) SECURING PLANER TO A TABLE OR WORKBENCH During operation, if there is any tendency for the planer to tip over, slide or walk, the planer MUST be secured to a supporting surface such as a workbench or table. Four holes are provided (2 are shown at (A)) to securely mount the planer.
-
Page 16: Adjustments
ADJUSTMENTS WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE BEFORE ANY ADJUSTMENTS ARE MADE. LEVELING EXTENSION TABLES The extension tables must be level with the planer table. To check the extension tables and adjust if necessary: Lay a straight edge (A) on the planer table (C) with one end of the straight edge over the infeed table (B). - Page 17 ADJUSTMENTS (cont.) RAISING AND LOWERING HEAD ASSEMBLY The head assembly consists of the cutterhead, knives, feed rollers, cutterhead guard, and the motor. Raising and lowering of the head assembly controls the depth of cut on the planer. To adjust: To raise the head assembly (A), turn the adjusting handle (B) clockwise. SEE FIG 5. To lower the head assembly, turn the adjusting handle counterclockwise.
- Page 18 ADJUSTMENTS (cont.) ADJUSTING / REPLACING KNIVES FOR 40300H-CT SPIRAL CUTTERHEAD WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE BEFORE ANY ADJUSTMENTS ARE MADE. WARNING! *** Be VERY CAREFUL when handling the knives or cutter tips as they are EXTREMELY SHARP and can cause serious injury!!! *** This 13"...
- Page 19 ADJUSTMENTS (cont.) FIG. 7 Note: Proper cleaning of tips and cutterhead is critical to achieving a smooth finish. Dirt or dust trapped between the cutter insert and cutterhead will slightly raise the cutter insert, and make noticeable marks on your workpiece the next time you plane. THICKNESS SCALE ADJUSTMENT The thickness scale, located on the right of the planer, shows the thickness of the finished workpiece.
-
Page 20: Operations
FIG. 8 OPERATIONS NOTE: This operations section was designed to give instructions on the basic operations of this planer. However, it is in no way comprehensive of every planer operation. It is strongly recommended that you read books, trade magazines, or get formal training to maximize the potential of your planer while minimizing the risks. - Page 21 OPERATIONS (cont.) QUICK SET THICKNESS INDICATOR The Quick Set Thickness Indicator (D), located on the bottom right side of the planer, provides a simple way to preset the finished thickness of a workpiece. The indicator can be set to 1/8”, 1/4”, 1/2”, or 3/4”.
- Page 22 OPERATIONS (cont.) GETTING PREPARED It is always a good idea to use a piece of scrap wood for your first planing attempt. Also, before each use of the planer, make it a habit of checking for loose fasteners, fittings or hardware. Turn the planer ON and allow it to reach full speed.
-
Page 23: Maintenance
OPERATIONS (cont.) AVOIDING SNIPE Snipe, gouging or depression of the board at the ends, can occur when the board is not properly supported. For workpieces longer than 4 ft, greater care must be taken to reduce the problem because the additional length of the workpiece translates into more unsupported weight pulling down on the end of the board. - Page 24 MAINTENANCE (cont.) GEAR LUBRICATION The gears in the gear box should be lubricated periodically. Facing the front of the machine, remove the raise/ lower handle. SEE FIG. 1 page 13. Remove the 9 screws holding the top cover on the machine. 5 screws are located on top and 4 on the upper sides.
- Page 25 MAINTENANCE (cont.) Place a light coat of multi-purpose grease on the teeth of the gears (D) and a light coat of spray lubricant on the chain (E). Do not over-lubricate. SEE FIG 17. Replace all covers, panels and guards, that you removed once lubrication is complete. BRUSH REPLACEMENT Brush life will vary depending on the load placed on the motor.
- Page 26 MAINTENANCE (cont.) Once the brush has been removed, inspect the carbon (B), the spring (C), and the wire (D). SEE FIG 16. FIG 16 If the carbon of either brush is worn down to 3/16” or less, both brushes should be replaced. Also if the spring or wire are burned or damaged in any way, both brushes should be replaced.
-
Page 27: Troubleshooting
TROUBLESHOOTING GUIDE Motor and Machine Operation PROBLEM LIIKELY CAUSE SOLUTION Snipe Dull Blades Replace or turn blades. Readjust (depressions at Infeed or outfeed tables out of tables. Feed scrap of same thickness end of workpiece) adjustment. before and after workpiece. Residue on rollers. -
Page 28: Parts List
PARTS... - Page 31 DESCRIPTION Size DESCRIPTION Size SPECIAL HEX SOC HD CAP HANDLE ASSEMBLY M5xP0.8x12L ∮10.3x∮18x1t HEX SOC HD SCR M5xP0.8x20L FLAT WASHER HEX SOC HD CAP SCR M6xP1.0x8L SPINDLE SPROCKET T=1.2 ㎜ ∮4.2x∮15x2t TOP COVER FLAT WASHER SHAFT BUSHING NYLOCK HEX SOC HD SCR M4xP0.7x12L T=1.5 ㎜...
- Page 32 DESCRIPTION Size DESCRIPTION Size TIPS TORX SCREW M5xP0.8 HEX SOC HD CAP SCR M8xP1.25x20L TORX WRENCH 100 GEARBOX ASSY T=2.0 ㎜ HEX WRENCH 4x120mmL 101 REAR GEARBOX PLATE DUST CHUTE MT-11030 102 SPACER A POWER CORD CLAMP GCL 5/16 S 103 SPACER B ADAPTER MF 11030...
- Page 33 DESCRIPTION Size 150 MOTOR ASSY 173 BRUSH 174 BRUSH CAP M20*P1.0 178 SWITCH HT-18 179 SWITCH KEY...
