- Page 1 o p e r at i n g i n st r u ct i o n s Sp y d c p ocke t ® je e pme te r DCPJM mo d e l...
- Page 2 ® website at spyinspect.com. The SPY Model DCPJM DC Pocket JeepMeter meets the ® Electromagnetic Compatibility and Low Voltage Directive. This product is a Class B, Group 1 ISM equipment according to CISPR 11. Group 1...
-
Page 3: Table Of Contents
Principles of Operation ......5 DC Pocket JeepMeter Overview ....6 User Safety . -
Page 4: Unit Calibration
Center due to the unique calibration process, test equipment utilized and properly trained SPY technicians. ® We DO NOT recommend using any other calibration service other than a SPY ® Authorized Service Center; using an outside service with technicians not trained to work on SPY brand equipment could damage the unit and if the enclosure is ®... -
Page 5: Principles Of Operation
The SPY Model DCPJM DC Pocket JeepMeter (voltmeter) is an ® instrument designed to provide accurate and reliable measuring of high voltage DC current. -
Page 6: Dc Pocket Jeepmeter Overview

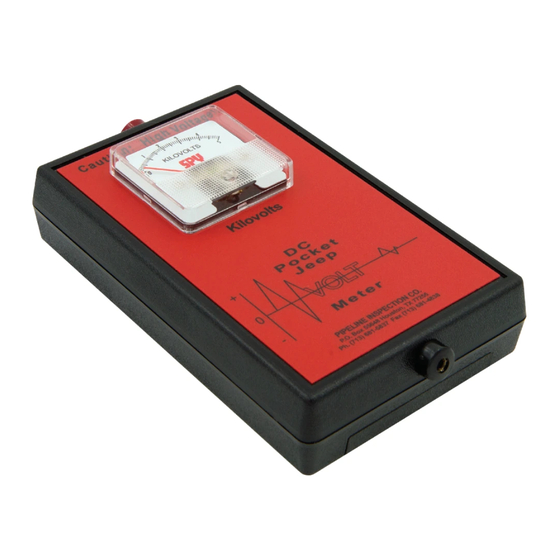

Jeepme ter overvie w The DC Pocket JeepMeter is designed to accurately measure the high voltage output voltage of Direct Current (DC) Only Holiday Detector such as our model 780 Portable Holiday Detectors or our 115 In-Plant Holiday Detector. - Page 7 High Voltage DC Input Terminal Ground Cable Output Voltage Analog Display High Voltage Cable Ground Input Terminal...
-
Page 8: User Safety
User safe t y CAUTION! This meter is used measure energy high voltage. The operator KiloVolts may be subject to electrical shock if the meter is not properly grounded and / or operated in accordance with the instructions KiloVolts and procedures described within these operating instructions. -
Page 9: Technical Specifications
MODEL DC POCKET JEEPMETER Measurement Type Voltage Range 1-5 kV Measurement Accuracy ±5% Display Type Analog Battery None Unit Weight (w/ battery only) 0.36 Unit Dimensions (L x W x H) 6” x 3.5” x 1.75” Factory Warranty... -
Page 10: Dc Pocket Jeepmeter Operation
To start dc pocke t Jeepme ter opErAT IoNs CAUTION! This meter is used to measure low energy high voltage. Operator may be subject to electrical shock if meter is not properly grounded and / or operated in accordance with the instructions and procedures prescribed below. - Page 11 Extreme heat or moisture can cause damage or false readings. Long life and reliability is only warranted if the instrument is properly handled, cared for and operated in accordance with the procedures as prescribed by SPY Inspection Equipment.
-
Page 12: Maintenance & Repair
Regular care and maintenance of the unit is a requirement of good quality preventative maintenance practices. WARNING! This voltmeter does not contain any user- serviceable parts; your warranty will be voided if the SPY unit is ®... -
Page 13: Warranty
SPY Inspection Equipment, hereafter referred to as (SPY ) warrants that ® Model DCPJM DC Pocket JeepMeter shall, under normal use and ® service, be free from defects in material and workmanship. SPY ‘s entire ® warranty obligation shall be limited to, at SPY ’s option, the repair or... -
Page 14: Related Equipment
rel ated equipment MODEL JM MODEL PJM ® ® JEEPMETER POCKET JEEPMETER Please call our office at (713) 681-5837 or email us at sales@spyinspect.com for more product details or to place an order. - Page 15 User notes...
- Page 16 s p y in s p e c t.com...
