  • Page 1 ® pocke t Jeepme ter o p e r at i n g i n st r u ct i o n s p i clt d.com PIPELINE INSPECTION COMPANY...
  • Page 2 ® website at picltd.com. The SPY Model PJM Pocket JeepMeter meets the Electromagnetic ® Compatibility and Low Voltage Directive. This product is a Class B, Group 1 ISM equipment according to CISPR 11. Group 1 ISM product: A product...
  • Page 3: Table Of Contents

    Table of contents Unit Calibration ....... . . 4 Principles of Operation ......5 Pocket JeepMeter Overview .
  • Page 4: Unit Calibration

    Center due to the unique calibration process, test equipment utilized and properly trained SPY technicians. ® We DO NOT recommend using any other calibration service other than a SPY ® Authorized Service Center; using an outside service with technicians not trained to work on SPY brand equipment could damage the unit and if the enclosure is ®...
  • Page 5: Principles Of Operation

    The SPY Model PJM Pocket JeepMeter (voltmeter) is an instrument ® designed to provide accurate and reliable measuring of the crest value of high voltage non-sinusoidal waveforms. The output wave form of holiday detectors typically has this type of shape and therefore prevents the use of conventional RMS voltmeters.
  • Page 6: Pocket Jeepmeter Overview

    785 & 790 Portable Holiday Detectors or our 125 & 135 In-Plant Holiday Detectors. The SPY Model PJM Pocket JeepMeter provides the ultimate in ® convenience and versatility. The Pocket JeepMeter measures pulse only high voltage output and will measure up to 20 kV.

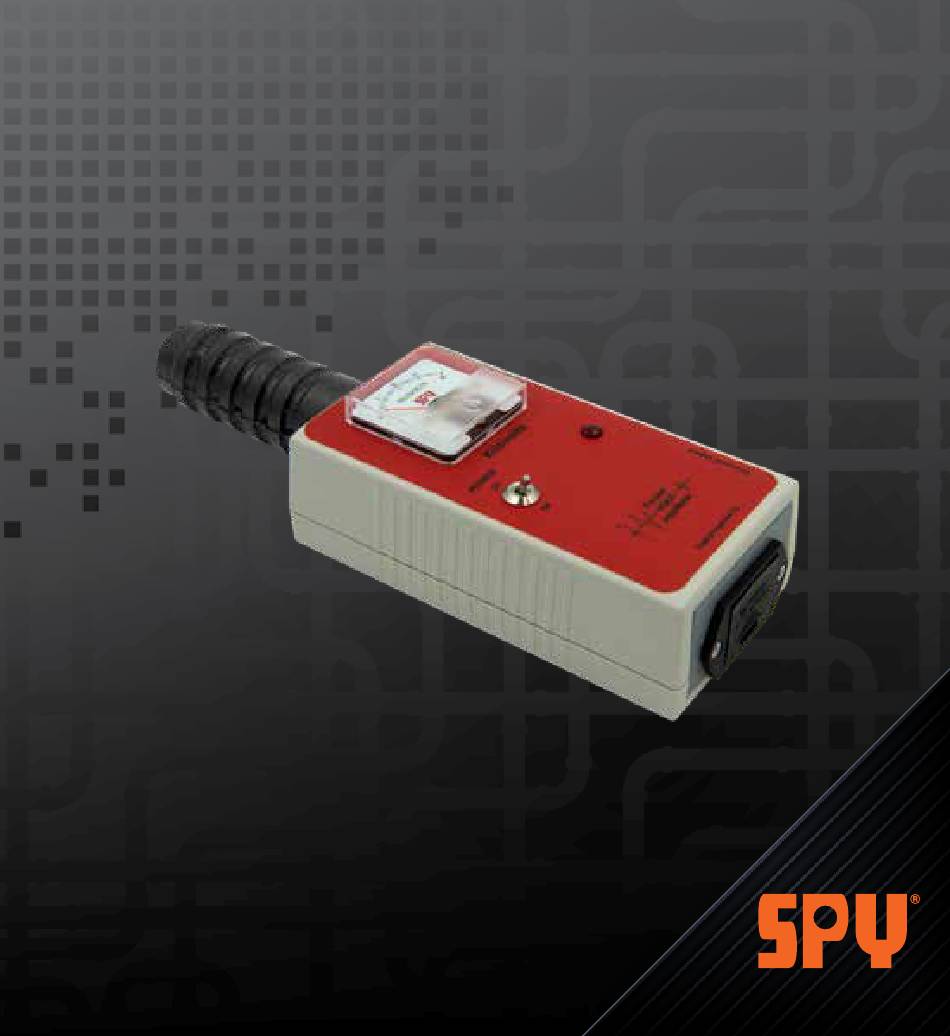

  • Page 7 Output Voltage Analog Display On / Off Bat Switch Power / Battery Indicator Light Quick Change 9 Volt Battery Compartment Ground Input Terminal Ground Cable High Voltage Pulse Input Terminal High Voltage Cable p i clt d.com...
  • Page 8: Battery Instructions

    TErY INSTrUcT IoNs The SPY Model PJM operates on one 9 volt alkaline battery. ® The battery compartment is located on the bottom side of the unit. STEP 1: Make sure the detector power switch is in the off position.
  • Page 9: User Safety

    User safe t y CAUTION! THIS IS A NOT A HANDLE! This is a High Voltage Pulse Input Terminal and the operator may be subject to electrical shock if held with hand. CAUTION! This meter is used to measure low energy high voltage.
  • Page 10: Pocket Jeepmeter Operation

    To start pocke t Jeepme ter opErAT IoNs CAUTION! This meter is used to measure low energy high voltage. Operator may be subject to electrical shock if meter is not properly grounded and / or operated in accordance with the instructions and procedures prescribed below.
  • Page 11 NOTE: The meter ground may be connected to the detector ground for measuring detector output voltage only. This does not take into consideration ground path losses. STEP 6: After double checking that all connections in Steps 1 – 6 are proper, turn the Pocket JeepMeter power switch to “ON”.
  • Page 12: Troubleshooting Guide

    troubleshooting guide PROBLEM POSSIBLE SOLUTION CORRECTION METHOD NO VOLTAGE Low Battery Replace the 9V battery on the bottom READING of the unit with a new battery. technical specifications MODEL POCKET JEEPMETER Measurement Type Pulse Voltage Range 1-20 kV Measurement Accuracy ±5% @ 75 deg F Display Type Analog...
  • Page 13: Maintenance & Repair

    Regular care and maintenance of the unit is a requirement of good quality preventative maintenance practices. WARNING! This voltmeter does not contain any user- serviceable parts; your warranty will be voided if the SPY unit is ®...
  • Page 14: Warranty

    Pipeline Inspection Company, hereafter referred to as (SPY ) warrants that ® Model PJM Pocket JeepMeter shall, under normal use and service, ® be free from defects in material and workmanship. SPY ‘s entire warranty ® obligation shall be limited to, at SPY ’s option, the repair or replacement free...
  • Page 15: Related Equipment

    rel ated equipment MODEL JM MODEL DCPJM ® ® JEEPMETER DC POCKET JEEPMETER Please call our office at (713) 681-5837 or email us at sales@picltd.com for more product details or to place an order. p i clt d.com...
  • Page 16 PIPELINE INSPECTION COMPANY p i clt d.com...
