related literature | Search www.corning.com/opcomm. Click on "Resources."
000-255
0202_NAFTA_AEN Specification Sheet, Fiber Distribution Terminal (FDT)
1.
Carton Contents
•
Prestubbed FDT (Figure 1)
•
Mounting plate
•
Packaging reel
Mounting Plate
2.
Tools and Materials Required
2.1
Tools
•
Tools appropriate for the wall or wooden pole fasteners
•
Snips or cutters (for installing optional skirt)
2.2
Materials
•
#8 hardware appropriate for wall application (not provided)
•
Lag bolts or screws for wooden pole application (not provided)
•
SCAPC connectorized ClearCurve
OR
•
SCAPC connectors for field-termination (ordered separately)
•
Connector cleaning supplies (not provided)
STANDARD RECOMMENDED PROCEDURE 003-755 | ISSUE 5 | DECEMbER 2014 | PAGE 1 OF 8
Instruction, Skirt Kit for OptiSheath
Locking Tabs
Adapters
Terminal
Base
OptiSheath
Distribution Terminal
003-755, Issue 5
Fiber Distribution Terminal
®
Grommet
optical fiber drop cables (ordered separately)
®
Fiber
®
Terminal
Cover
KPA-1490

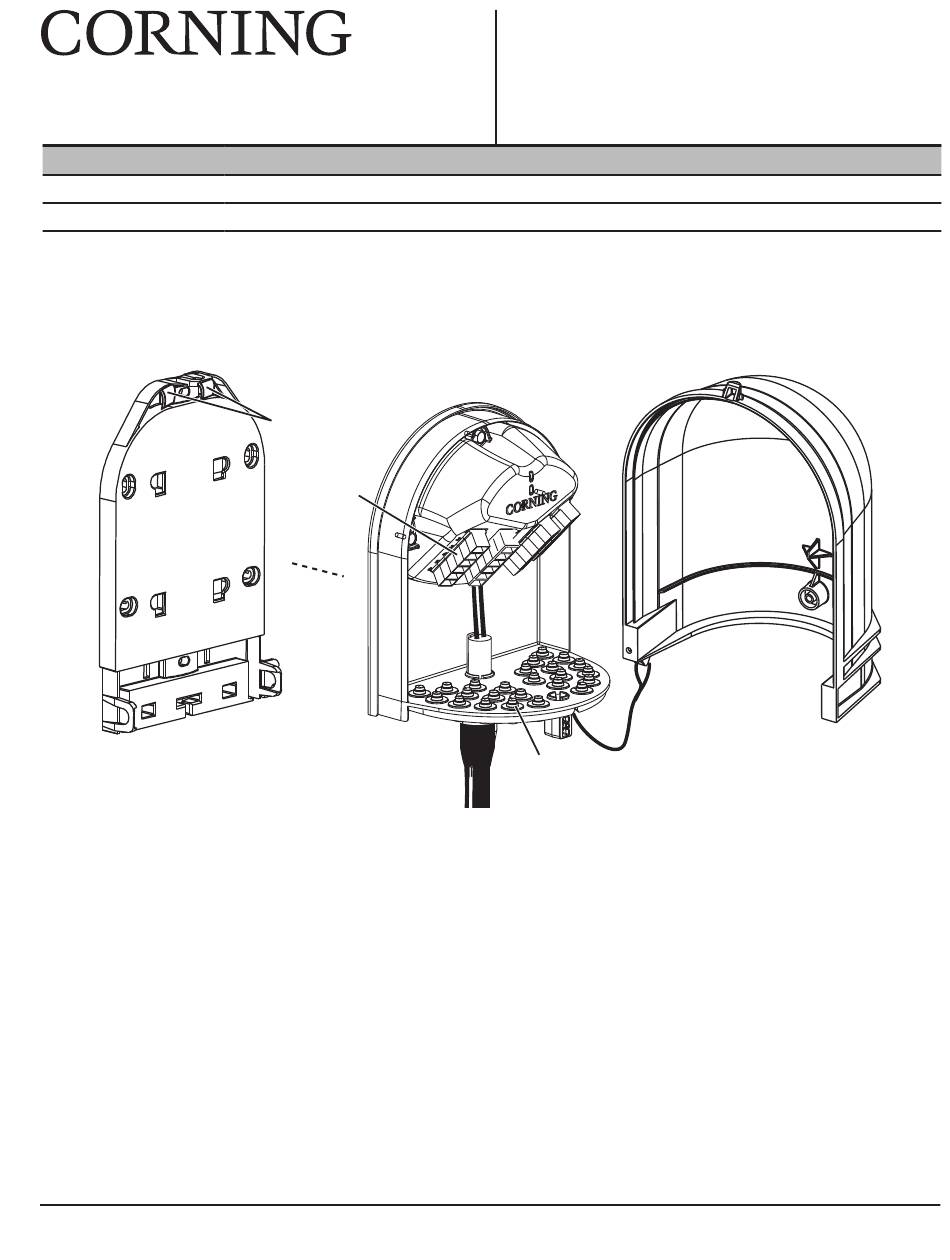

Figure 1
Advertisement
Table of Contents
Related Manuals for CORNING OptiSheath Fiber
Summary of Contents for CORNING OptiSheath Fiber
- Page 1 OptiSheath Fiber ® Distribution Terminal 003-755, Issue 5 related literature | Search www.corning.com/opcomm. Click on “Resources.” 000-255 Instruction, Skirt Kit for OptiSheath Fiber Distribution Terminal ® 0202_NAFTA_AEN Specification Sheet, Fiber Distribution Terminal (FDT) Carton Contents • Prestubbed FDT (Figure 1) •...
- Page 2 Route Distibution Cable Pay off the distribution cable from the reel (Figure 2). Route the distribution cable stub to its destination according to your installation plan and splice per standard company practices. Unpackaging the Unit Step 1: Pry out the tabs holding the reel’s cover (Figure 3) and set the cover aside.
- Page 3 Mount the Unit Step 1: Attach the mounting plate (Figure 4) to the mounting surface using #8 hardware appropriate for the application. Use Del-Tec -type spacers if required for the application. ® Mounting Plate Step 2: If this terminal uses the optional skirt, locate the extension plate from the skirt kit.
- Page 4 • For additional stability on flat surfaces, knock out the small oval-shaped openings in the extension plate and drive screws through the openings into the mounting surface using #8 hardware appropriate for the application. NOTE: If spacers were used behind the terminal base plate to allow for cable routing, install the same number of spacers behind the skirt extension plate.
- Page 5 Feed connector through opening. Reinsert grommet into opening. KPA-1499 Cut shaded plug off to open grommet. Figure 8 Step 3: If necessary, field-connectorize the drop cable; then, insert the connectorized cable into the terminal through the port opening. Step 4: Remove the dust cap from the adapter where the connector will be installed and clean inside the adapter per standard company practices.
- Page 6 Step 2: If using the optional skirt, drop cables can exit the skirt extension plate through the rear or through either conduit opening at the outer edge of the skirt cover as shown in Figure 10. Align the skirt cover with the ridge in the terminal and snap skirt cover into place around the cables.
- Page 7 FDT Connectorized with an OptiTip Connector ® *This layout is only used when the FDT is connectorized with an OptiTip connector. Active Active Active Active FDT Fiber Fiber FDT Fiber Fiber FDT Fiber Fiber FDT Fiber Fiber Fiber Fiber Fiber Fiber Count Position...
- Page 8 A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/trademarks. All other trademarks are the properties of their respective owners. Corning Optical Communications is ISO 9001 certified. © 2007, 2010-2011, 2014 Corning Optical Communications.
