Contents
1. General ............................................................................................................................................. 1
2. Description ....................................................................................................................................... 2
3. Precautions ....................................................................................................................................... 2
4. Tools and Materials .......................................................................................................................... 3
5. Components ..................................................................................................................................... 3
6. Mounting the Unit ........................................................................................................................... 4
7. Preparing the Cable .......................................................................................................................... 4
8. Splicing ............................................................................................................................................. 5
9. Routing the Fiber ............................................................................................................................. 6
10. Maintenance ..................................................................................................................................... 7
Customer Service and Information .................................................................................................. 8
1.

General

1.1
This instruction describes the recommended procedure for installing the Mini Wall-
mount Building Terminal (WBM) manufactured by Corning Cable Systems.
1.2
This document is being reissued to illustrate addition of side entry ports.
NOTE: Read and understand this procedure (as well as the instructions provided with related
assemblies) before beginning an installation. Familiarize yourself to understand the unit's
placement in your network. Make sure you know where the cable will enter the unit, how
jumpers will be routed and other details of the installation plan.
p/n 003-516
Standard Recommended Procedure (SRP) 003-516
Mini Wall-mount Building Terminal (WBM)
Corning Cable Systems
Issue 2, October 2004
Page 1 of 8

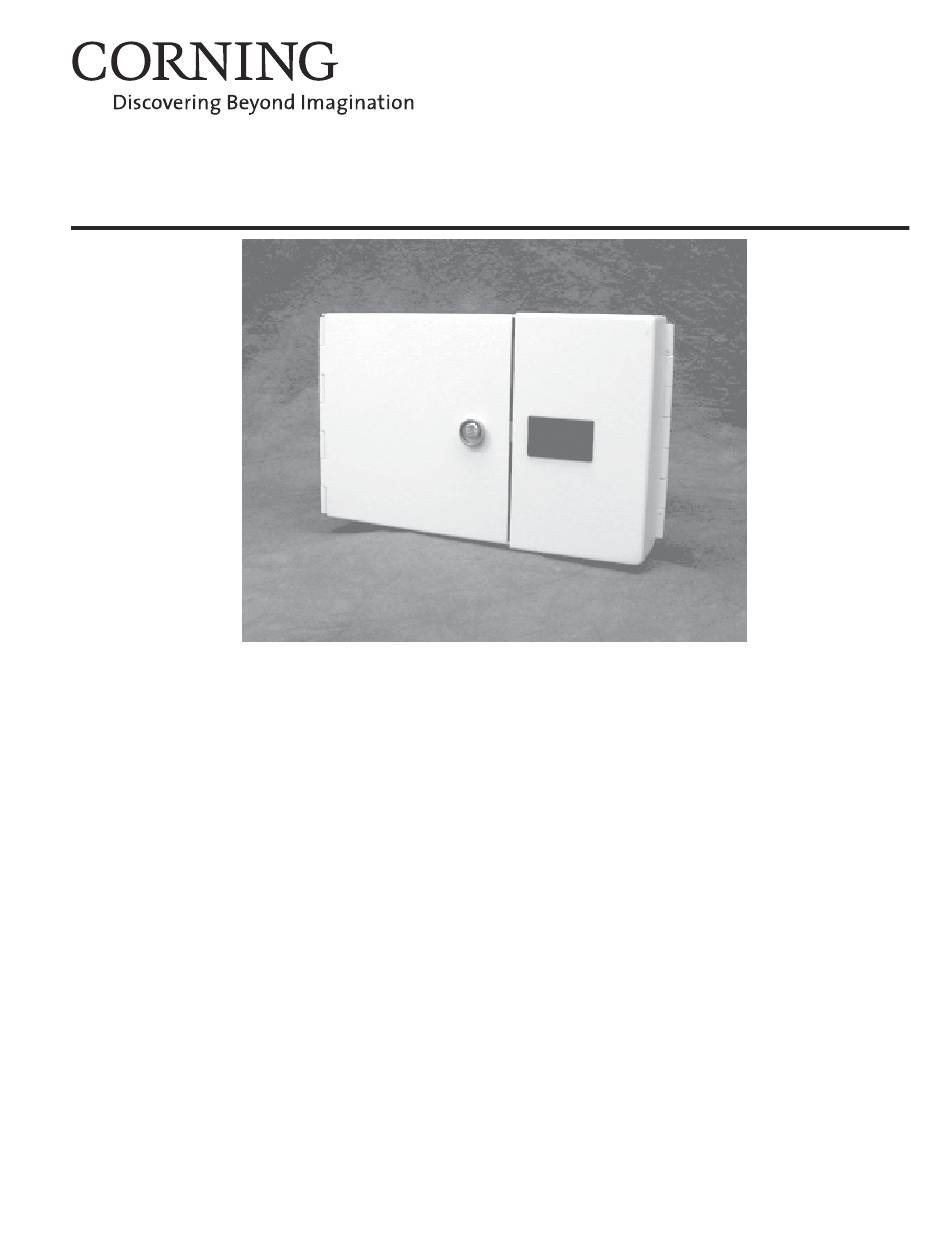

Figure 1 - WBM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBM and is the answer not in the manual?

Questions and answers

Related Manuals for CORNING WBM

Summary of Contents for CORNING WBM

  • Page 1 General This instruction describes the recommended procedure for installing the Mini Wall- mount Building Terminal (WBM) manufactured by Corning Cable Systems. This document is being reissued to illustrate addition of side entry ports. NOTE: Read and understand this procedure (as well as the instructions provided with related assemblies) before beginning an installation.

  • Page 2: Description

    The WBM comes with twelve SC connector adapters which are installed into a connector panel. The unit is also available with a six-fiber panel.

  • Page 3: Tools And Materials

    A hardware kit is provided which includes a watertight cord connector, cable ties, and a double-backed adhesive strip. Routing Clips Entry Grommets Connector Panel Splice Tray Entry Grommet Telco Door Splice Tray Entry Grommets Retainer Slide Latch Subscriber Door Entry Grommet Figure 2 — Components Mini Wall-mount Building Terminal (WBM)

  • Page 4: Mounting The Unit

    Body Determine the cable entry location. Remove the appropriate entry grommet from the housing. Install the threaded connector body into the WBM as shown in Figure 4. Feed the cable through the threaded connector to the prescribed length as shown in Figure 4.

  • Page 5: Splicing

    SRP 003-516 • Issue 2 • October 2004 Page 5 Remove the tray from the WBM. Attach a split grommet around the ribbon fiber. Position the protected fiber under the crimp tab at the corner of Splice Tray the tray as shown in Figure 5. Tighten the crimp...

  • Page 6: Routing The Fiber

    Install threaded connectors into the adapter and tighten. Do not OVERTIGHTEN. • Do not allow the connector body (ferrule) to turn as you screw it into place. This causes the surfaces to grind against each other. Mini Wall-mount Building Terminal (WBM)

  • Page 7: Maintenance

    Moisture: Check the housing for accumulated moisture. Place moisture absorbent packets as needed. Fiber Bends: Check fiber optic cable to make sure bends do not exceed the minimum bend radius. Check cable for unnecessary strain. Check cable entries and exits for crimping or crushing. Mini Wall-mount Building Terminal (WBM)

  • Page 8: Customer Service And Information

    Product Information: ——————————————————————————————— http://www.corning.com/cablesystems Corning Cable Systems reserves the right to improve, enhance and modify the features and specifications of Corning Cable Systems’ products without prior notification. Discovering Beyond Imagination is a trademark of Corning Incorporated. All other trademarks are the properties of their respective owners.
