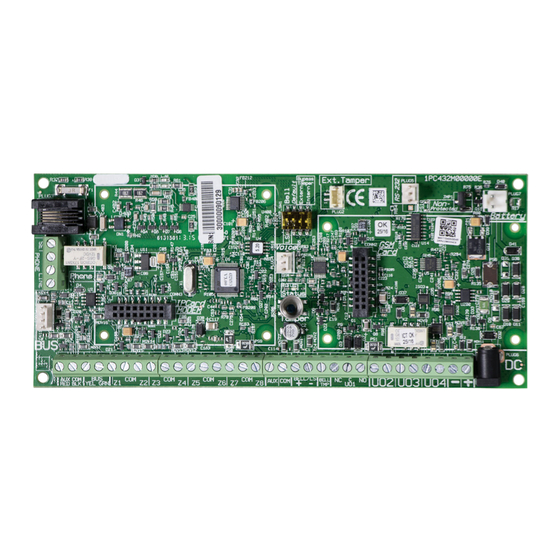

2GIG® Vario System
2GIG Vario Voice Module
10012671 A
Installation Instructions
The 2GIG Vario Voice Module provides audible information about the status of the 2GIG Vario System, and enables any remote, touch-tone (DTFM) telephone to
act as a keypad for the system. When a system event occurs (such as an alarm activation) the Voice Module notifies a system user by calling a specified telephone
and playing a pre-recorded announcement.
NOTE:
For instructions on how to program the Voice Module, see the 2GIG Vario System Installation Guide.
Installing the Voice Module
VOICE MODULE
POWER
LED1
RED
BLK
YEL GRN
AUX
COM
BUS
SW
Description
1
Omit Tamper
2
OPT
3
Test
4
Intern MIC
Nortek Security & Control | 1950 Camino Vida Roble, Suite 150 | Carlsbad, CA 92008-6517 | USA | 800-421-1587 | www.nortekcontrol.com
Rec
Play
DIP SW1
1
2
3
4
AUX
COM LED
TMP
Voice
(to panel)
DIP Switches
Instead of a short with the TMP/COM terminal block
N/A
Connected in parallel to all output channels. It enables the user
to listed to all played messages using a speaker (at least 32
Ohm) connected between the Test Spkr and COM terminals.
Select an external or internal microphone for recording
messages:
On: Enables recording messages from the microphone located
on the Voice Module board.
Off: Enables recording messages from a microphone located
on the 2GIG Vario Listen-in & Speak Module.
Copyright © 2016 Nortek Security & Control LLC.
MIC1
Out
In1
In2
In3
Message Box
Usage
1
Advertisement
Related Manuals for 2gig Technologies Vario
Summary of Contents for 2gig Technologies Vario
- Page 1 (to panel) The 2GIG Vario Voice Module provides audible information about the status of the 2GIG Vario System, and enables any remote, touch-tone (DTFM) telephone to act as a keypad for the system. When a system event occurs (such as an alarm activation) the Voice Module notifies a system user by calling a specified telephone and playing a pre-recorded announcement.
-
Page 2: Voice Module
A maximum of 10 Listen-in & Speak Modules can be connected to the 2GIG Vario System. LED Indicators Power: The Power LED indicates the status of communication between the Voice Module and the 2GIG Vario System panel. Off: No voltage power from the main panel. -
Page 3: Receiving A Call
BUS connector and can be used for the same purpose. VOICE (plug 2): Used to connect the Voice Module to the VOICE connector on the 2GIG Vario System main panel wia the supplied cable. This connector transmits signals from the Voice Module to the telephone line during remote communication, and is essential for normal operation of the Voice Module. -
Page 4: Operations Menu
2GIG® Vario System 2GIG Vario Voice Module 10012671 A Calling the System 1. Dial the number of the premises. If an answering machine is present at the premises: Let the line ring once, hang up, and call again. If an answering machine is not in use at the premises: Wait until you hear a continuous tone, indicating that the system has answered the call. -
Page 5: Regulatory Information
2GIG® Vario System 2GIG Vario Voice Module 10012671 A Regulatory Information FCC Notice This device complies with Part 15 of the FCC's Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. - Page 6 THIS PAGE INTENTIONALLY LEFT BLANK...
