NETWORK & CONFIGURATION MANUAL
Tranberg AS | P.O. Box 8033 | N-4068 Stavanger | Norway | Tel.: (47)51 57 89 00 | Fax.: (47)51 57 89 50
E-mail: info@tranberg.com | www.tranberg.com
Tranberg Systems | Hjulmagervej 15C | 7100 Vejle | Denmark | Tel.: (45) 75 85 83 80
E-mail: mail@tranbergsystems.com | www.tranbergsystems.com
TEF 2650/2655
COMMANDER SEARCHLIGHT
IMPORTANT
Please read this manual carefully before installing the
product.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tranberg TEF 2650
Summary of Contents for Tranberg TEF 2650
- Page 1 Please read this manual carefully before installing the product. Tranberg AS | P.O. Box 8033 | N-4068 Stavanger | Norway | Tel.: (47)51 57 89 00 | Fax.: (47)51 57 89 50 E-mail: info@tranberg.com | www.tranberg.com Tranberg Systems | Hjulmagervej 15C | 7100 Vejle | Denmark | Tel.: (45) 75 85 83 80...
- Page 2 Be aware of any personnel close to the searchlight when testing or operating. GENERAL WARRANTY CERTIFICATE Tranberg AS gives normally a general warranty on Tranberg products valid for 12 months from delivery date. General the products will Confirm to the purchase order,...
-
Page 3: Table Of Contents
COMMANDER SEARCHLIGHT - NETWORK & CONFIGURATION MANUAL TABLE OF CONTENTSNTS: CONTENTS SYSTEM OVERVIEW OPERATION CONNECTIONS, SETTINGS AND INDICATORS SPECIAL PROCEDURES FAULT FINDING 6 TECHNICAL DATA Page 3... -
Page 4: System Overview

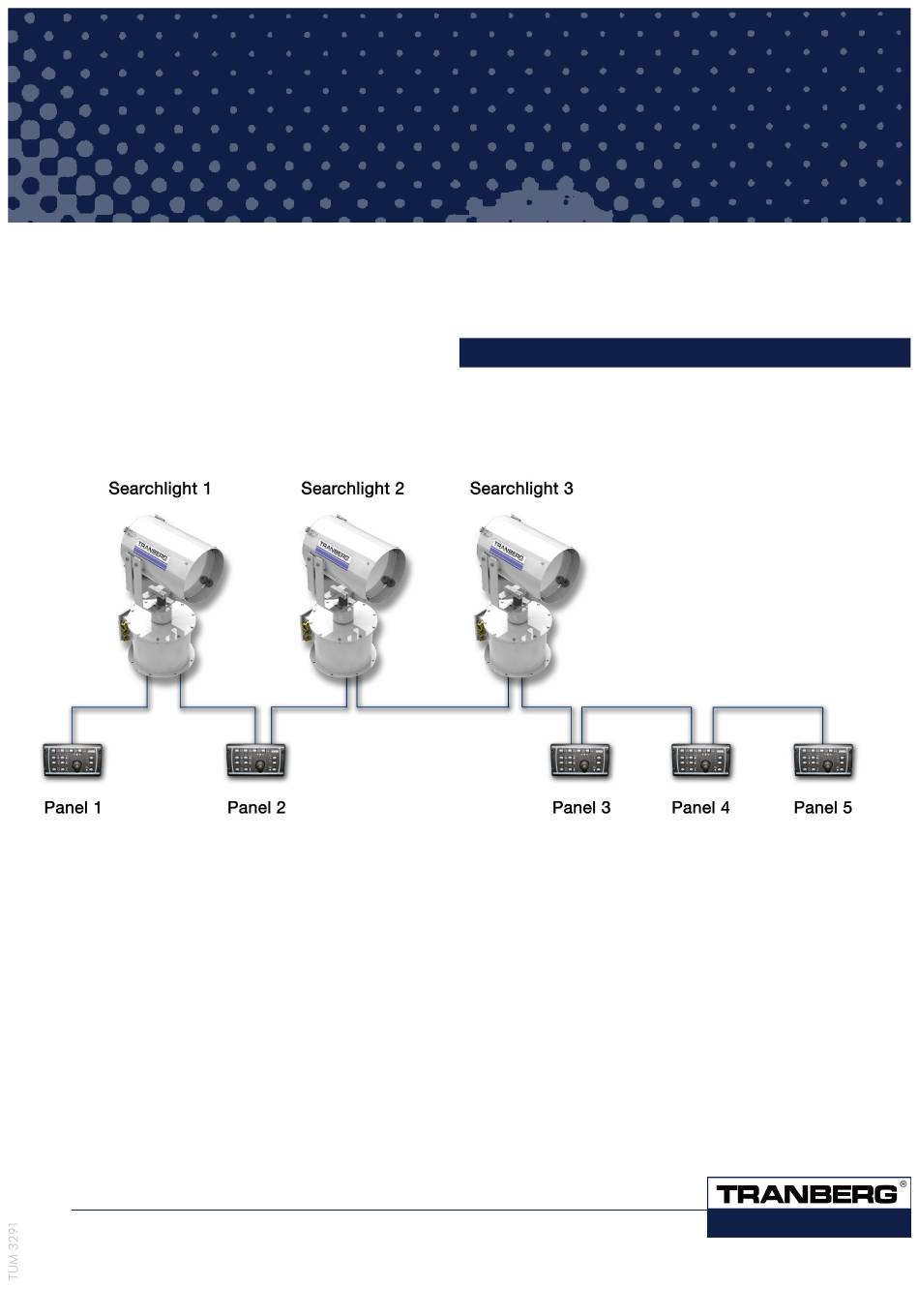

ON/STBY GROUP 600A105424 The Tranberg Commander Searchlight uses a serial communication net- work to control and monitor the searchlights. This makes it possible to freeely choose and combine the number of searchlights and panels. All panels can control all searchlights, one at a time, by using selection but- tons on the panel. -
Page 5: Operation
COMMANDER SEARCHLIGHT - NETWORK & CONFIGURATION MANUAL OPERATION 2.1 START-UP PROCEDURE 2.2 ELECTRICAL INSTALLATION - CABLING Power-up: Apply power in the following sequence: CABLING – COMMUNICATION NETWORK: Apply the 230 VAC power to the searchlights first. 1. Use 2x twisted pairs + screen cable. Characteristic impedance: 100 –... -
Page 6: Connections, Settings And Indicators
COMMANDER SEARCHLIGHT - NETWORK & CONFIGURATION MANUAL CONNECTIONS, SETTINGS AND INDICATORS Version with RJ-45 connectors 3.1 PANELS Color (TIA 568-A) Color (TIA 568-B) Signal There are 3 different panel models: White / Green White / Orange 1. TEF 2612 Single (this panel can only control 1 searchlight, search- light no. - Page 7 COMMANDER SEARCHLIGHT - NETWORK & CONFIGURATION MANUAL CONNECTIONS, SETTINGS AND INDICATORS 3.2 SEARCHLIGHT MOTOR UNIT INDICATORS: Rx (Yellow): shows the activity on the bus, and will flicker at normal bus activity Pwr (Green): light steady when the internal 24VDC is OK. CPU (Green): Priority CPU LED Description...
-
Page 8: Special Procedures
COMMANDER SEARCHLIGHT - NETWORK & CONFIGURATION MANUAL SPECIAL PROCEDURES 4.1 IDENTIFYING THE MASTER PANEL 4.4 RESET OF SEARCHLIGHTS For the following special procedures, the master panel need to be 1. Remove power (230VAC) to the searchlight (motor unit), wait for identified. - Page 9 COMMANDER SEARCHLIGHT - NETWORK & CONFIGURATION MANUAL SPECIAL PROCEDURES 8. Push power button once to turn on the panel. Check if the searchlight can be controlled on the new address. The procedure can be repeated if necessary. 9. If more searchlights are to be changed, disconnect the power to the current searchlight, and repeat the procedure from step 3.
-
Page 10: Fault Finding
COMMANDER SEARCHLIGHT - NETWORK & CONFIGURATION MANUAL FAULT FINDING 5.1 GENERAL 5.5 PROBLEMS AT INSTALLATION 1. Check which searchlights and from which panels the problem 1. Check correct wiring (A is always connected to A, likewise for B exists on. Can the fault be isolated to a particular searchlight or and Ref. -
Page 11: Technical Data
COMMANDER SEARCHLIGHT - NETWORK & CONFIGURATION MANUAL 6 TECHNICAL DATA 6.1 CLEANING The control panel may be cleaned with a mild detergent on any parts. PANEL: Model: 2612, 2613, 2614 Length: 163 mm Width. 96 mm Height: 62 mm Height w/joystick: 105 mm Weight: 360 g... - Page 12 COMMANDER SEARCHLIGHT - NETWORK & CONFIGURATION MANUAL Tranberg AS | P.O. Box 8033 | N-4068 Stavanger | Norway | Tel.: (47)51 57 89 00 | Fax.: (47)51 57 89 50 E-mail: info@tranberg.com | www.tranberg.com Tranberg Systems | Hjulmagervej 15C | 7100 Vejle | Denmark | Tel.: (45) 75 85 83 80 E-mail: mail@tranbergsystems.com | www.tranbergsystems.com...
