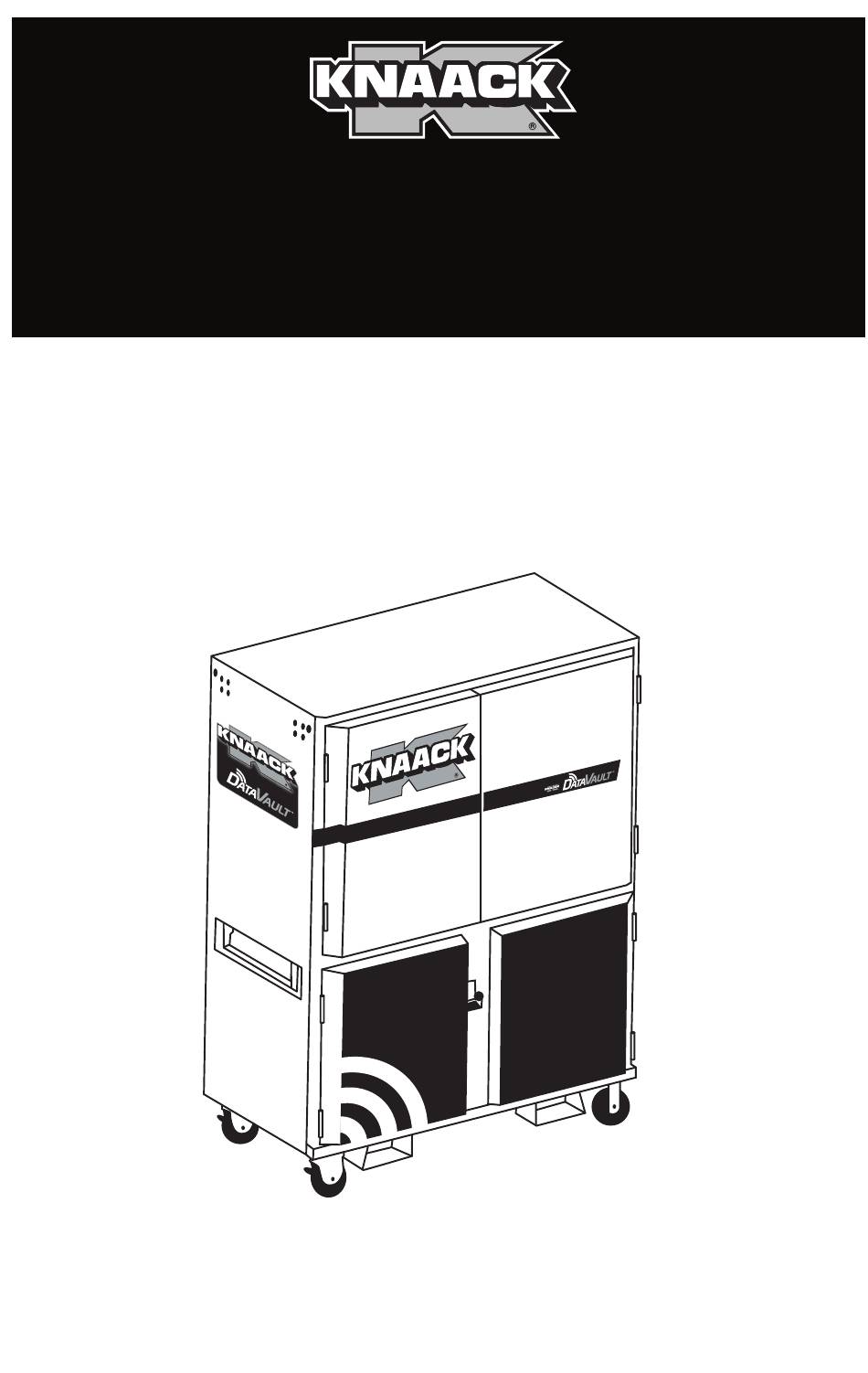

- Page 1 JOBSITE STORAGE SOLUTIONS ALWAYS ON THE JOB™ INSTALLATION MANUAL 118-01 DATAVAULT 118-02 DATAVAULT - BARE Werner Co. 93 Werner Rd. 888-523-3371 toll free/ llamada gratuita Greenville, PA 16125 888-456-8458 fax...
- Page 2 NOTICE ATTENTION: PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS BEFORE ASSEMBLING, INSTALLING OR USING THIS PRODUCT. Tools Required • 9/16” SOCKET • 9/16” WRENCH • 5/16” SOCKET • 7/16” SOCKET • 7/16” WRENCH • SCREWDRIVER, STRAIGHT BLADE • SCREWDRIVER, PHILLIPS HEAD Parts List •...
-
Page 3: Table Of Contents
Data Vault USER INSTRUCTIONS Contents I. InSTaLLIng a LaRge SCReen..............II. 3 PoSITIon HaTCH FeaTuRe ................ a. Working Position ......................6 b. open Position ......................6 c. Closed Position ......................6 III. LoCKaBLe HaTCH ..................IV. FILTeRed Fan MoToR .................. V. InSTaLLIng a PRInTeR ................. VI. -
Page 4: Installing A Large Screen
CauTIon any modification or unintended use of this product shall immediately void all manufactures warranties. Manufacture disclaims all liability for injuries to persons or property resulting from any modification to, or unintended use of this product. CauTIon Prior to drilling to keep debris out of your eyes, always wear protective eye wear. - Page 5 Data Vault USER INSTRUCTIONS c. Once screen has been mounted to the brackets, attach HDMI (2) and VGA(1) cables to the back of the screen (FIG.3). d. Plug screen and fan power cords into extension cord (SEE FIG. 4). Route extension cord through cord pass through in back of enclosure.
-
Page 6: Position Hatch Feature
g. Attach screen mounting brackets through the coresponding holes in the bottom of the enclosure using two 1/4- 20 x 5/8 bolts and 1/4-20 whiz nuts. II. 3 Position Hatch Feature The keyboard hatch can be positioned in 3 places, working, open and closed. -
Page 7: Closed Position
Data Vault USER INSTRUCTIONS c. Closed Position Lift rod out of the notch and hold rod in location shown, slide the rod rearward to allow the hatch to close. III. Lockable Hatch Hatch can be locked to protect valuables while momentarily away. Simply attach any padlock through the locking tab and loop of the rod. -
Page 8: Installing A Printer
a. Filter is located to the lower right side of enclosure. b. Un-snap filter cover as shown c. Remove cover and remove filter. Clean filter with water and squeeze out excess water before installing filter back onto fan. To avoid damaging the fan and screen, never run fan without the filter installed. -
Page 9: Installing Usb Switch
Data Vault USER INSTRUCTIONS b. Plug the power cord and USB connection into back of printer and place printer on upper shelf in left compartment. Route power cable through center dividing walls into compartment on right side. Plug power into UPS in the surge protector without battery backup. -
Page 10: Installing Power Strips
VII. Installing Power Strips (not included in 118-02) a. Install both power strips into the 118-01. Place one in the central compartment and route the cord through the cable channel to the lower compartment. Place the second in the lower compartment. -
Page 11: Drawer Removal And Installation
Data Vault USER INSTRUCTIONS a. drawer Removal and Installation 1. To remove a drawer (FIG. 8), pull the drawer out till it stops. Notice the locking levers located inside the track that is attached to the drawer. Lift lever (A) while pressing down on the right lever (B). - Page 12 KnaackLLC aTTn:Warranty Claims 420 e. Terra Cotta avenue Crystal Lake, IL 60014 www.knaack.com If you have any questions, please call toll free at 1-800-456-7856. ©2013 Knaack LLC PN14-0056 ©2015 Werner Co. Rev D 2/15...
