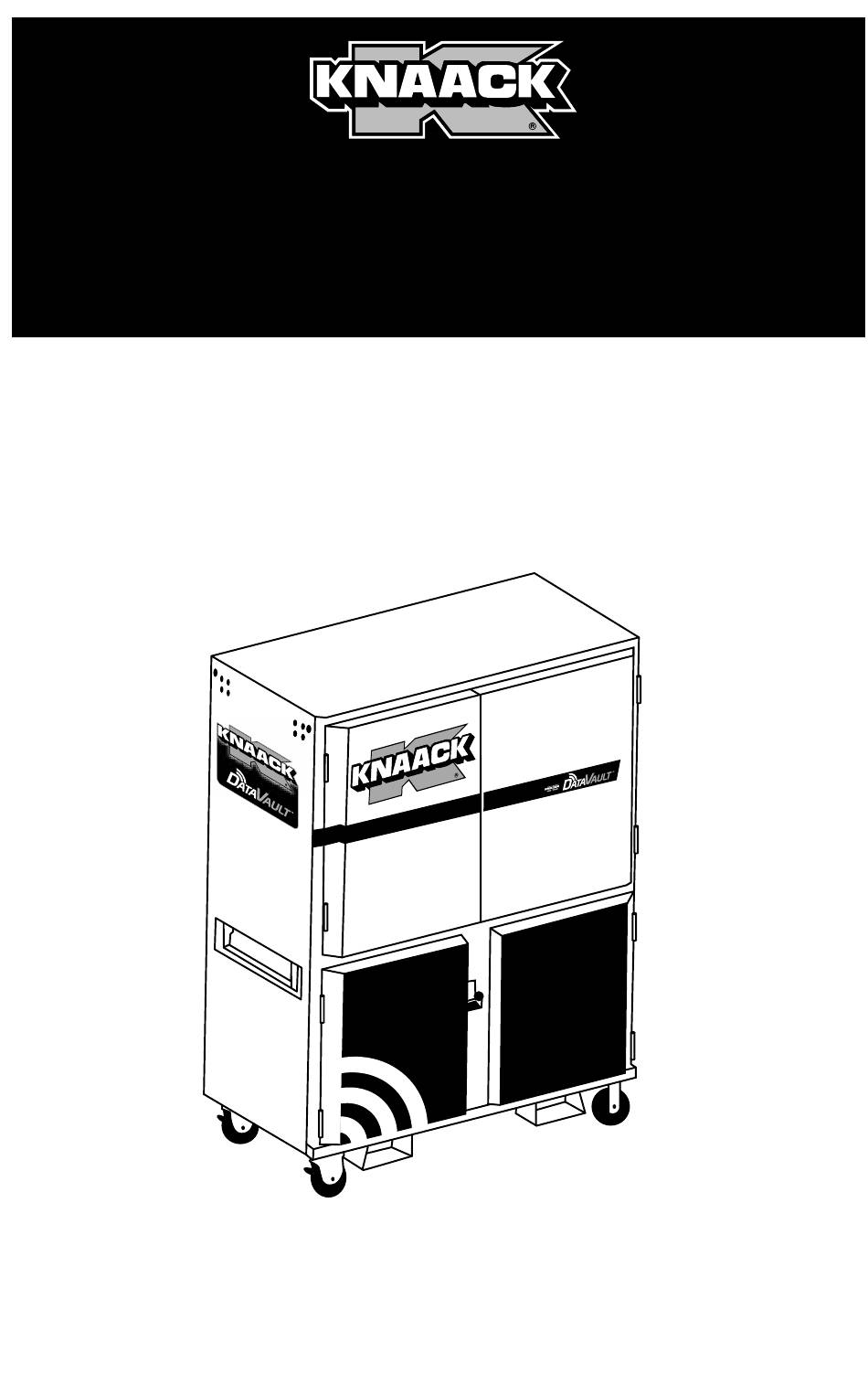

- Page 1 JOBSITE STORAGE SOLUTIONS ALWAYS ON THE JOB™ INSTALLATION MANUAL 118-01 DATAVAULT 118-02 DATAVAULT - BARE Werner Co. 724-588-2000 93 Werner Rd. 888-523-3371 toll free/ llamada gratuita Greenville, PA 16125 888-456-8458 fax...
- Page 2 NOTICE ATTENTION: PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS BEFORE ASSEMBLING, INSTALLING OR USING THIS PRODUCT. Tools Required • 9/16” SOCKET • 9/16” WRENCH • 5/16” SOCKET • 7/16” SOCKET • 7/16” WRENCH • SCREWDRIVER, STRAIGHT BLADE • SCREWDRIVER, PHILLIPS HEAD Parts List •...
-
Page 3: Table Of Contents
Data Vault USER INSTRUCTIONS Contents I. InSTaLLIng a LaRge SCReen..............II. 3 PoSITIon HaTCH FeaTuRe ................ a. Working Position ......................6 b. open Position ......................6 c. Closed Position ......................6 III. LoCKaBLe HaTCH ..................IV. InSTaLLIng a PRInTeR ................V. InSTaLLIng uSB SWITCH ................VI. - Page 4 CauTIon any modification or unintended use of this product shall immediately void all manufactures warranties. manufacture disclaims all liability for injuries to persons or property resulting from any modification to, or unintended use of this product. CauTIon Prior to drilling to keep debris out of your eyes, always wear protective eye wear.
- Page 5 Data Vault USER INSTRUCTIONS g. Remove the Velcro straps from the TV protector h. Slide the TV protector onto the TV i. Tighten the Velcro straps down (FIG. 3) j. Lift the TV/Protector assembly k. Place TV, mounting plate to mounting plate holder l.
-
Page 6: Position Hatch Feature
o. Pull the TV mount out and push to one side to be able to access the mounting plate holder p. Adjust the mounting plate to vertical position and tighten the two nuts on each side (FIG. 6). II. 3 Position Hatch Feature The keyboard hatch can be positioned in 3 places, working, open and closed. -
Page 7: Closed Position
Data Vault USER INSTRUCTIONS c. Closed Position Lift rod out of the notch and hold rod in location shown, slide the rod rearward to allow the hatch to close. III. Lockable Hatch Hatch can be locked to protect valuables while momentarily away. Simply attach any padlock through the locking tab and loop of the rod. -
Page 8: Installing Usb Switch
V. Installing uSB Switch (not included in 118-02) Install USB switch in central compartment. Attach 2 USB-BM cables into switch. a. Install USB hub, connecting USB hub computer port/connector into USB switch. b. Plug USB-AM cable (from printer) into USB hub. c. -
Page 9: Installing Power Strips
USER INSTRUCTIONS VI. Installing Power Strips (not included in 118-02) a. Install both power strips into the 118-01. Place one in the central compartment and route the cord through the cable channel to the lower compartment. Place the second in the lower compartment. -
Page 10: Drawer Removal And Installation
VIII. Drawer adjustment: If you need to move any of the bottom drawers, to fit your printer or computer, follow these instructions: a. Drawer Removal and Installation 1. To remove a drawer (FIG. 8), pull the drawer out till it stops. Notice the locking levers located inside the track that is attached to the drawer. -
Page 11: Drawer Retention
Data Vault USER INSTRUCTIONS c. Drawer Retention 1. Install 14-20 x 5/8” hex head bolt DRAWER on inside of the front, 2 places each SLIDE drawer. Fasten with 1/4-20 whiz nut. 1/4-20 x 5/8” BOLT 2. This will prevent drawer from bouncing out when being DRAWER transported. - Page 12 KnaackLLC aTTn:Warranty Claims 420 e. Terra Cotta avenue Crystal Lake, IL 60014 www.knaack.com If you have any questions, please call toll free at 1-800-456-7856. ©2013 Knaack LLC PN14-0056 ©2016 Werner Co. Rev E 7/16...
