Summary of Contents for Show Atelier DIALighting IW19-10 Zoom

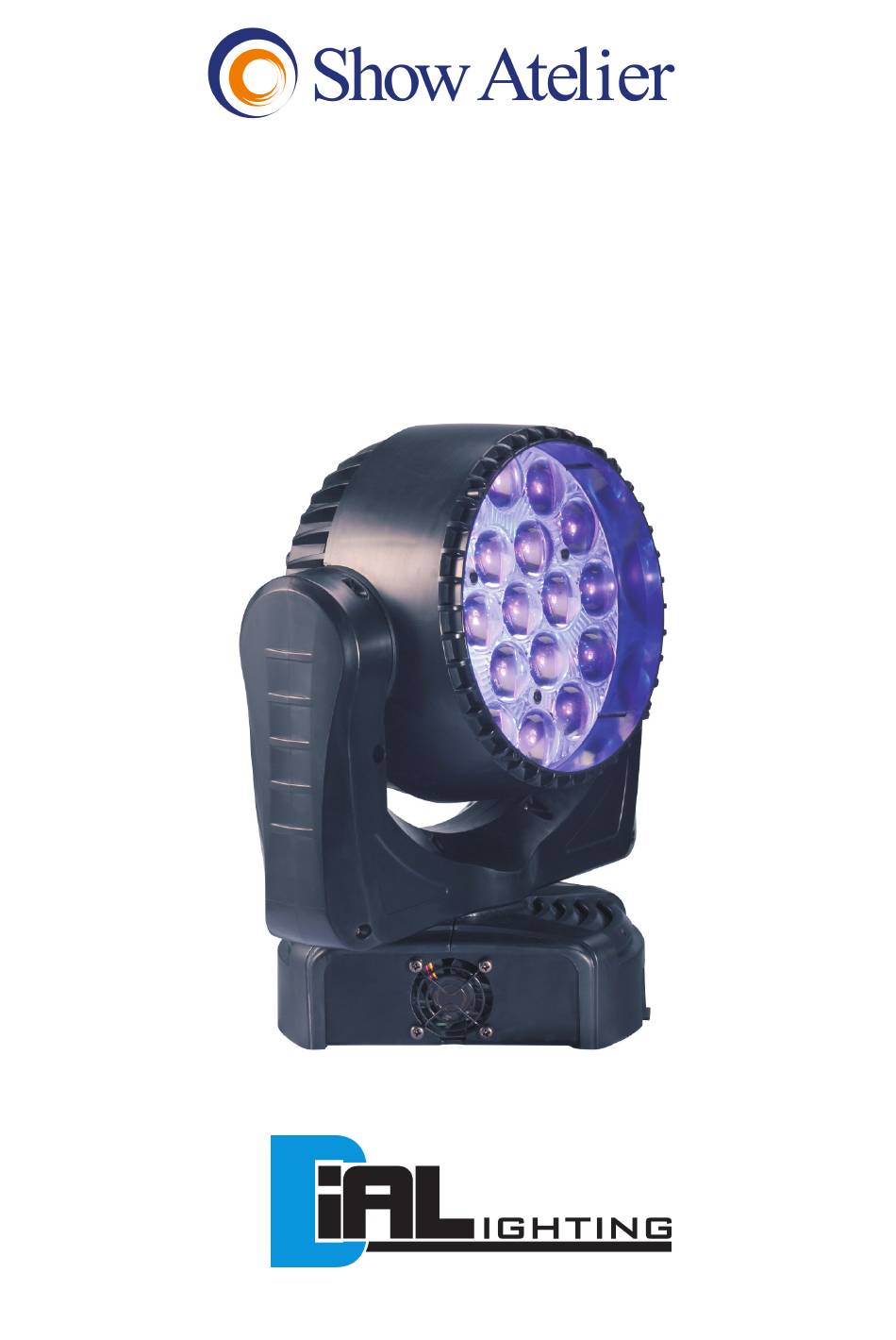

- Page 1 DIALighting IW19-10 Zoom...
-
Page 2: Dimensions
Dimensions All dimensions are in millimeters Min,c/c 330... -
Page 3: Safety Information
Safety Information WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product The following symbols are used to identify important safety information on the product and in this manual: WARNING! DANGER! DANGER! WARNING!Refer WARNING! WARNING! WARNING! Burn hazard. - Page 4 Ÿ Do not expose the fixture to rain or moisture. Ÿ Refer any service operation not described in this manual to a qualified technician. Ÿ Socket outlets used to supply A200 fixtures with power or external power switches must be located near the fixtures and easily accessible so that the fixtures can easily be disconnected from power.
-
Page 5: Table Of Contents
Contents Dimensions ............... . 2 Safety Information . -
Page 6: Fixture Overview
Fixture overview Display Control buttons AC mains power input AC mains power throughput Safety cable attachment point DMX output DMX input Note: head fan grill in production models is rotated 90° compared to this illustration. Figure 1: Fixture overview... -
Page 7: Introduction
Introduction This compact LED-based moving-head washlight features: Independent or linked Beam (primary LED array) and Aura (secondary background LED array) control Ÿ Range of pre-programmed independent and synchronized Beam and Aura effects available via DMX that give instant access to the full potential of the fixture Beam RGBW color control with color temperature control Ÿ... -
Page 8: Ac Power
AC power Warning “ Safety nformation ” starting age 3 efore onnecting fixrures t ains power Warning rotection lectric hock rounded arthed ). T A200 m owerdistribution circuit quipped ircuit reaker round ault arth ault protection Warning ocket utlets xternal ower witches upply... -
Page 9: Relaying Power To Other Devices
Installing a power input connector on a power cable Housing Insert Chuck Bushing To install a Neutrik PowerCon NAC3FCA input connector on a power cable: 1. Slide the bushing over the cable. 2. Slide the white chuck over cables with a diameter (D ) of 5 - 10 mm (0.2 - 0.4 in.), or the black chuck over cables with a diameter of 10 - 15 mm (0.4 - 0.6 in.). -
Page 10: Data Link
Data link A DMX 512 data link is required in order to control a A200 via DMX. The A200 has 3-pin XLR connectors for DMX data input and output. The pin-out on all connectors is pin 1 = shield, pin 2 = cold (-), and pin 3 = hot (+). To add more fixtures or groups of fixtures when the above limit is reached, add a DMX universe and another daisy-chained link. -
Page 11: Physical Installation
Physical installation Warning! The A200 must be either fastened to a flat surface such as a stage or wall, or clamped to a truss or similar structure in any orientation using a rigging clamp. Do not apply power to the fixture if it is standing freely or the fixture can be moved. -
Page 12: Hanging The Fixture
3. Block access under the work area. Working from a stable platform, hang the fixture on the truss with the arrow on the base towards the area to be illuminated. Tighten the rigging clamp. 4. Secure the fixture against clamp failure with a secondary attachment such as an approved safety cable that is rated for the weight of the fixture using one of the attachment points at the edges of the base (see “Fixture overview”... -
Page 13: Setup
Setup Warning! Read “Safety Information” on page 3 before installing, powering, operating or servicing the fixture. Control panel and menu navigation The onboard control panel and backlit graphic display are used to set the A200 's DMX address, configure individual fixture settings (personality), read out data and execute service utilities. See “Onboard control menus”... -
Page 14: Tailoring Performance
Tailoring performance Pan and tilt movement The P/T SPEED settings set the maximum speed of pan and tilt movement. FAST optimizes for speed and SLOW optimizes for smoothness of movement. NORMAL is the default setting and gives a good compromise between these two. The PAN INVERT and TILT INVERT commands reverse the direction of pan and tilt, and the SWAP command sends pan commands to tilt and vice versa. -
Page 15: Operation And Effects
Operation and effects Warning! Read “Safety Information” starting on page 3 before installing, powering, operating or servicing the A200. This section describes only DMX control features that require particular explanation. See “DMX protocols” on page 19 for a full list of the DMX channels and values required to control the different effects. Effects Beam and Aura The A200 has two LED arrays:... - Page 16 RGBW and RGB control RGBW (in raw mode) or RGB (in calibrated mode) color control is available for the Beam and RGB control is available for the Aura. CTC (Color Temperature Control) CTC is available for the Beam on the CTC channel 14. Setting this channel to DMX value 20 or above allows you to adjust the Beam’...
-
Page 17: Service And Maintenance
Service and maintenance “ ” Warning Safety nformation age 3 efore ervicing Warning isconnect ixture ains ower llow east 10 minutes before andling ight utput han 8 eters inches ithout hade 4 elding oggles repared ixture ight uddenly connected to ower Warning efer... -
Page 18: Control Menu Service Utilities
Warning isconnect ower llow efore leaning To clean the fixture: 1. Disconnect the fixture from power and allow it to cool for at least 10 minutes. 2. Vacuum or gently blow away dust and loose particles from the outside of the fixture and the air vents at the back and sides of the head and in the base with low-pressure compressed air. -
Page 19: Dmx Protocol
DMX protocols NORMAL ADVANCED DMX Value Percent Function Electronic shutter effect 0 - 19 0 - 7 Shutter closed 20 - 49 8 -19 Shutter open fast → slow 50 - 64 20 - 25 Strobe 1 65 - 69 26 - 27 Shutter open opening pulse fast →... - Page 20 DMX Value Percent Function NORMAL ADVANCED Beem Color wheel effect No function. RGBW color mixing enabled 0 - 1 0 - 9 LEE 790 - Moroccan pink 10 - 14 2 - 3 15 - 19 4 - 5 LEE 157 - Pink 20 - 24 6 - 7 LEE 332 - Special rose pink...
- Page 21 NORMAL ADVANCED DMX Value Percent Function FX2 adjust Zero → maximum 0 - 255 0 - 100 • If no sync set on channel 19, adjusts FX2 • If sync set on channel 19, has no effect Sync ( FX synchronization) No sync 0-49 0-19...
- Page 22 NORMAL ADVANCED DMX Value Percent Function Beem Color wheel effect Open. RGBW color mixing enabled 0 - 9 0 - 1 10 - 14 2 - 3 LEE 790 - Moroccan pink LEE 157 - Pink 15 - 19 4 - 5 20 - 24 6 - 7 LEE 332 - Special rose pink...
-
Page 23: Fx: Pre-Programmed Effects
FX: pre-programmed effects The table below lists the pre-programmed effects that can be selected on DMX channels 15 and 17. Two effects can be superimposed by selecting one effect on channel 15 and a different effect on channel 17. Type DMX Value Percent Function... -
Page 24: Lee Colors And Rgb Equivalents
LEE colors and RGB equivalents The table below gives approximate RGB equivalents for the LEE colors available in the standard A200’s color wheel effects for the Beam (on DMX channel 9 in NORMAL ADVANCED modes) and Aura (on DMX channel 22 in ADVANCED mode only). -
Page 25: Onboard Control Menus
Onboard control menus Notes (Default settings in bold print) Menu Item Options DMX address (default address = 1). The DMX address 1 - XXX range is limited so that the fixture will always have DMX ADDRESS enough DMX channels in the 512 available. ADVANCED Independent control of Beam and Aura, FX available (fixture uses 25 DMX channels) -
Page 26: Display Messages
Display messages Message Appears when... What to do ... the fixture is indexing effects at startup. Wait for reset to complete. RST (Reset) Wait for reset to complete. Note that → you can set PERSONALITY SRST (Serial reset) ... the fixture has received a reset command. DMX RESET to OFF to prevent accidental DMX reset commands. -
Page 27: Specifications
Specifications Physical Length ............305 mm (12 in.) across yoke Width . - Page 28 Electrical ......AC power ominal ......Maximum total ower onsumption...
