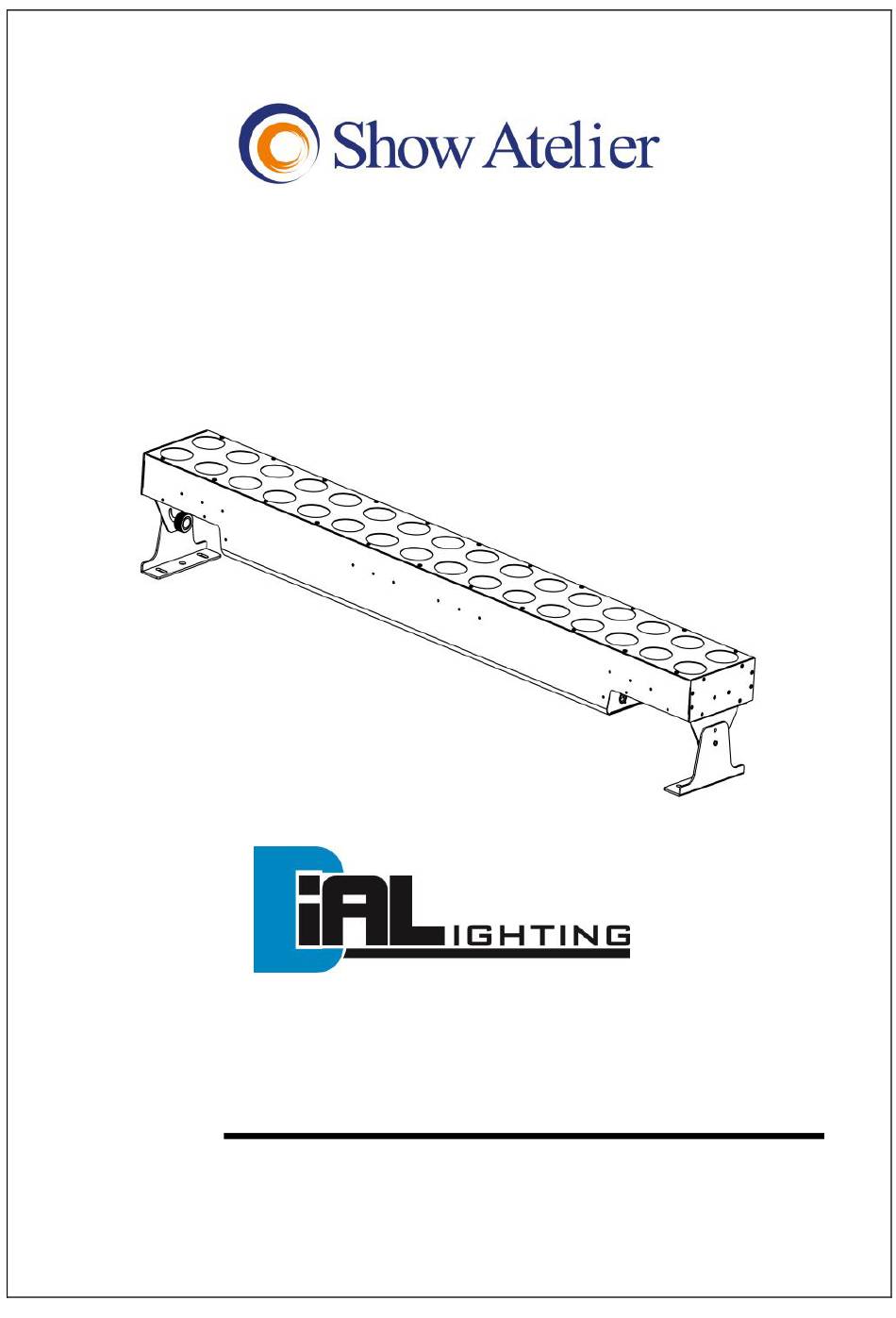

  • Page 1 DIALighting LED Bar 32-15 COB User Guide Professional Entertainment Technology...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instruction 2. Technical Specification 3. How To Set The Unit 3.1 Control Panel 3.2 Main Function 4. How To Control The Unit 4.1 Master/slave built-in preprogram function 4.2 Universal DMX controller 4.3 DMX 512 Configuration 4.4 DMX512 Connection 5.

  • Page 3: Safety Instruction

    1. Safety Instruction Please read carefully the instruction, which includes important information about the installation, usage and maintenance. WARNING  Please keep this user guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ...

  • Page 4: Technical Specification

     To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.  Do not open the unit within five minutes after switching off.  The housing or the lens must be replaced if they are visibly damaged. Caution There are no user serviceable parts inside the unit.

  • Page 5: Main Function

    Display To show the various menus and the selected functions DMX input present MASTER Master Mode SLAVE Slave Mode SOUND Flashing Sound activation Button MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Microphone...
  • Page 6 selected. At this time you can press the DOWN and UP buttons to change the show, the new show will take effect immediately. If you select show 1-8 or Auto Fade, you can press the ENTER button to choose the speed. The unit will run in the speed that has been selected or run to the music.
  • Page 7 DMX Address Press the MENU button to show DMX Address on the display. Press the ENTER button and the display will blink. Use the DOWN and UP buttons to change the DMX512 address. Once the address has been selected, press the ENTER button to store. To return to the main menu without any changes press the MENU button or wait for 8 seconds.
  • Page 8 Show Mode Press the MENU button to show Show Mode on the display. Press the ENTER button and the display will blink. Use the DOWN and UP buttons to select Auto Mode (Auto show), Sound Mode or DB Mode once selected, press the ENTER button to store and return to the last menu, then the unit will run to music.
  • Page 9 Press the MENU button to show Sound State on the display. Press the ENTER button and the display will blink. Use the DOWN and UP buttons to select the on (sound control on) or off (sound control off) mode. Once selected, press the ENTER button to store. To return to the main menu without any changes press the MENU button or wait for 8 seconds.

  • Page 10: How To Control The Unit

    Press the MENU button to show White Balance on the display. Press the ENTER button and r 255 will blink, use the DOWN and UP buttons to adjust the value. Next press the ENTER button to store and g 255 will blink on the display, use the DOWN and UP buttons to adjust the value and press the ENTER button to store and b 255 will blink on the display, use DOWN and UP button to adjust the value, and press ENTER button to store.
  • Page 11 4.1 Master/Slave Built In Preprogrammed Function By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show. This function is good when you want an instant show. 4.2 DMX Controller Using a universal DMX controller to control the units, you have to set DMX address from 1 to 512 channels so that the units can receive the DMX signal.
  • Page 12 DMX Configuration:...
  • Page 14 4.4 DMX512 Connection EV-MTX32: 1. If you are using a controller with a 3 pin DMX output, you need to use a 3 to 5 pin adapter-cable. 2. In the last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 15: Troubleshooting

    power is disconnected to the unit. 5. Each fixture needs to have an address set to receive the data sent by the controller. The address number is between 0-511 (usually 0 & 1 are equal to 1). 6. 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) Pin 4/5: Not used.
  • Page 16  Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
