Summary of Contents for unipad Lady's Tattoo ES-820

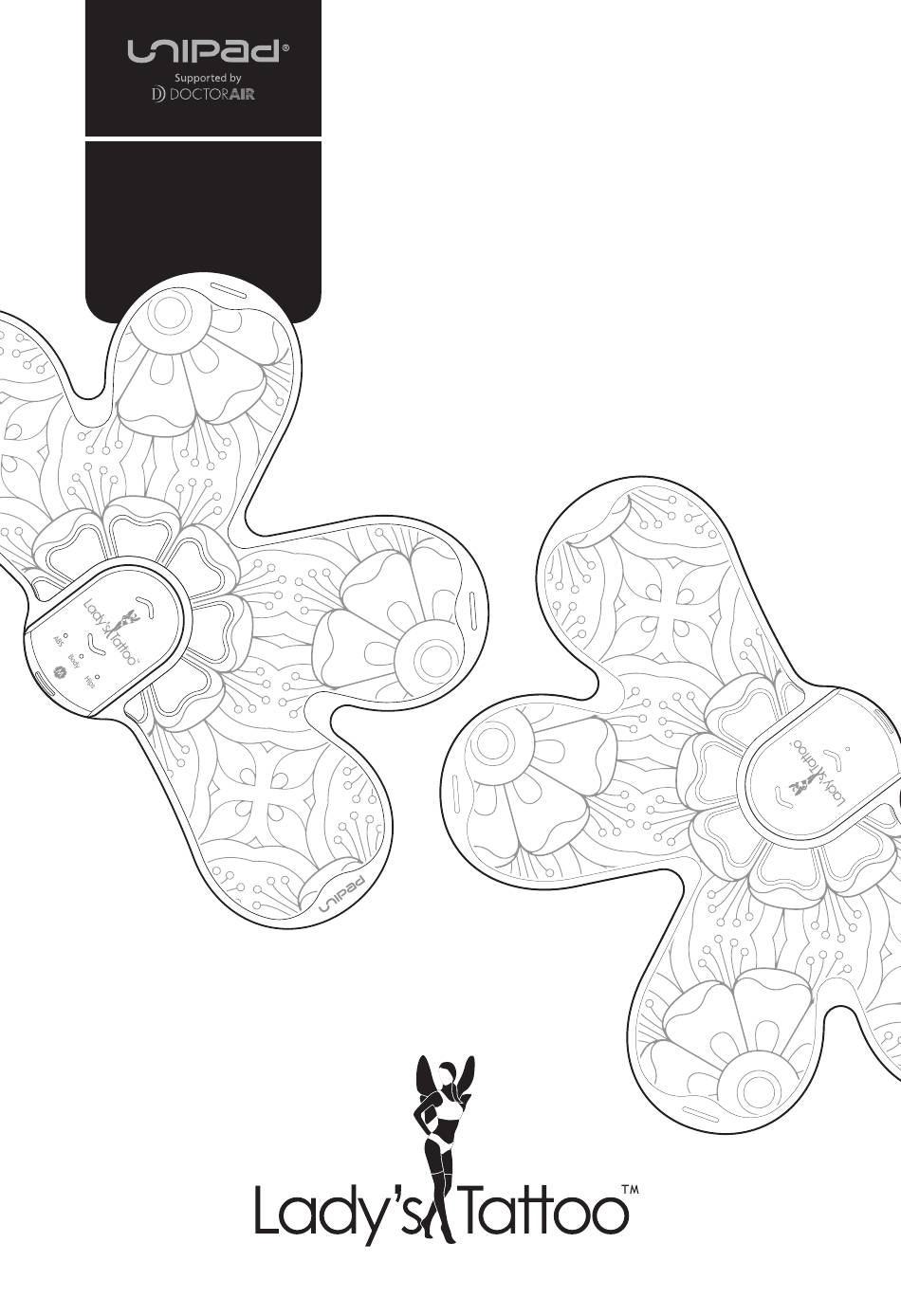

- Page 1 Model ES-820 ＭＡＮＵＡＬ...
-
Page 2: Table Of Contents
index Product features..............1 Safety Precautions............. 3 Package content..............7 Operation interface ............8 Preparation before use............ 9 Product instructions ............12 Cleaning & maintenance method for after use ..15 Optional product ............17 Q & A ..................18 Troubleshooting...............20 Product spec..............22 Product and battery disposal methods ....23 After-sales service and warranty.......25... -
Page 4: Product Features
Product features Thank you very much for purchasing the "Lady’s Tattoo". Please read this manual carefully before using and keep this product manual for later usage. Lady's Tattoo is an advanced electric pulse muscle (EMS: Electrical Muscle Stimulation) trainer with dual-machine training function。... - Page 5 Please read the instruction manual. Please read the instruction manual. The Lady’s tattoo manual can provide you with complete product operation methods and safety usage info. Please read it carefully before use to ensure that you can fully enjoy the outstanding training effects from this product. The Lady’s tattooafter-sales service warranty is attached to the last page of this instruction manual.
-
Page 6: Safety Precautions
Safety Precautions To ensure that the product is used correctly and safely, please read the instruction manual carefully before use. The precautions described in this manual are intended to ensure the safe and proper use of the product and to prevent injuries to yourself and others, or damage to property. - Page 7 Danger In the following cases, the use of this product is strictly prohibited • Implanted medical devices, such as a pacemaker • Medical electrical equipment used to sustain life, such as heart-lung machines • Wearable medical devices, such as EKGs WARNING Anyone with the following conditions should not use the product •...
- Page 8 CAUTION Follow the precautions below when using the product. Failure to do so may result in an accident, electric shock, injury, damage, or soiling. • Do not heat the product itself or the gel sheet in a microwave or get it close to open flame. •...
- Page 9 CAUTION please read the instruction below carefully before use. • During the usage process, if you’d like to remove or relocate this product, make sure to turn the power off first. • If you sense something abnormal with your skin or body, stop use immediately and consult your doctor.
-
Page 10: Package Content
Package content 1.Main device (M) Sub device(S) (S)x1 A. Main device (M) x1 B. Sub device (S)x1 2.Accessories C. Charging & storage stand D. Storage bag x 1 E. Gel sheet x 2 F. Usermanual/After sales service warranty x1 G. Adaptor x 1 H. -
Page 11: Operation Interface
Operation interface Main & Sub device identification EMS level down/EMS level up Mode LED M Main device icon Power button /Mode selection button EMS level up/EMS level down Operation LED S Sub device icon Power button 2.Storage stand Electrode area USB charging interface Charging cable input port Charging cable input port... -
Page 12: Preparation Before Use
Preparation before usage 1Charge the product. This product contains a rechargeable battery that still retain a small amount of power. It is recommended that you fully charge it before using it for the first time. Place the two devices on the ●... - Page 13 2.Apply the conductive gel sheet before use The conductive gel sheet can evenly conduct the energy of the electrode area to the skin. It’s essential to paste the gel sheet to the conductive rubber before using it. Identify the direction of the protective film Understand the protection film have A &...
- Page 14 3 major training mode abdominal waist Body Limb Body Limb Body thigh Hips...
-
Page 15: Product Instructions
Basic operation of the product 1.How to remove the device from the storage stand Correct: Remove from Wrong: Remove from the sides of the device the middle of the device 2.Turn on the power Press the power button of the main & sub devices for about 1.5 seconds, you will hear a long beep, indicating that the power of the two devices are on.When the sub device emits a beep-beep. - Page 16 3.Training mode selection Short press the mode selection button (same as the power button) of the device again, and there’re 3 training modes for selection. beep beep ABS mode Body mode Hips mode Press the power Press the power button once button once beep，Press the power button once mode...
- Page 17 After use 1.Correct way to remove the device After finishing the training, please make sure that the power of the main & sub devices are off, and then slowly remove them from the skin The new conductive gel is extremely adhesive, and it may cause ●...
- Page 18 Cleaning and Maintenance 1.Standard maintenance methods of conductive gel If the conductive gel sheet is too dry and not sticky enough after being used for many times, please apply a little bit of water on your fingertips, pat on the adhesive surface of the conductive gel to increase the viscosity again.
- Page 19 2.How to remove the conductive gel correctly It is recommended to use the "diagonally push & roll" method to gradually push the gel sheet from the device. Do not try to directly tear it off. At last, the removed conductive gel can be used to stick up the small pieces of remaining gel on the rubber.
-
Page 20: Optional Product
Optional product 1.Purchase conductive gel sheet • Please contact our company or dealer for the purchase. • Be sure to use the conductive gel sheet that is dedicated for this product • Misuse of non-original conductive gel sheet may result in poor conductive effect on this product •... -
Page 21: Q & A
Q & A Q1 Can it be used every day? A1 Yes, it can be used daily; however, do not use more than 2 times a day for the same area, as it may result in muscle fatigue. If your body or skin feels uncomfortable, please stop the device immediately and check with the doctor. - Page 22 Q9 How should the devices be maintained? A9 Wipe the device with a dry fabric. For the maintenance method of conductive gel and electrode surface, please refer to the topic "Clean & Maintenance method" Q10 When should I replace the conductive gel sheet? A10 Depending on the environment of use and the habit of after cleaning.
-
Page 23: Troubleshooting
Troubleshooting Issue Cause Solution Battery exhausted Recharge the battery Failed to press the button Hold the + button down until The power long enough the product beeps(1.5 seconds) fails to turn on Being used in an environment Use in the recommended that is too hot/cold temperate range of 15 to 35 degree celsius Keep beeping... - Page 24 Issue Cause Solution The protective film(transparent) Peel off protective film on the adhesive surface (transparent) Not able to (conductive gel) is not peeled off attach the Adhesive surface Please clean the surface of gel sheet (conductive gel) is dirty the conductive gel Please replace a new gel sheet Gel sheet is damaged Confirm if the charging...
-
Page 25: Product Spec
Product spec product spec Adaptor spec: Input 5V / 500mA Battery spec: DC3.7V (Rechargeable lithium battery) Battery capacity: 200mAh Charger spec: Input=AC 100~220V, 50-60Hz / Output=DC5V 500mA Frequency: 4 ~ 80Hz ± 10% (Cycle Rotates) Pulse width: 200~400μs ± 10% Output power: Max. -
Page 26: Product And Battery Disposal Methods
Product and batter y disposal methods Please dispose the product properly in accordance with the local regulations. If the product is damaged or cracked, stop using it immediately and discard it. This product is equipped with a lithium battery. Be sure to remove the lithium battery when discarding it. - Page 27 Removing the lithium-ion battery 1. Please use neckare until it is completely inoperable (discharge the lithium ion battery). 2. Put a slotted screwdriver into the gap of the main body box, pry open the cover, and remove the battery from the base.
-
Page 28: After-Sales Service And Warranty
The retention period of the performance parts for repairing is 5 years from the manufacturing date. contact us If you have any questions regarding to the after-sales service, please contact your vendor or Unipad customer service center. Customer Service Center 10am~18pm Excepts Saturday &... - Page 29 * If you have a different address from the warranty card, or your product is a gift from a person, your product can still be covered by this warranty from the dealers listed. If not, please contact UNIPAD Customer Service Center. In general, you may be charged on the following fees during the warranty period.
- Page 30 Month/ Day/ date Name Phone Address Customer info ※Dealer’s name(where you purchase the product), address, telephone Dealer ※ ※Ask your dealer to fill & stamp Repair memo 850-24110-01003 Manufacturer: UNIPAD 株式會社 〒104-0032 東京都中央区八丁堀３-８-７瑞穂ビル4階 ©2020 UNIPAD JAPAN INC. All rights reserved.
