1.0 Introduction

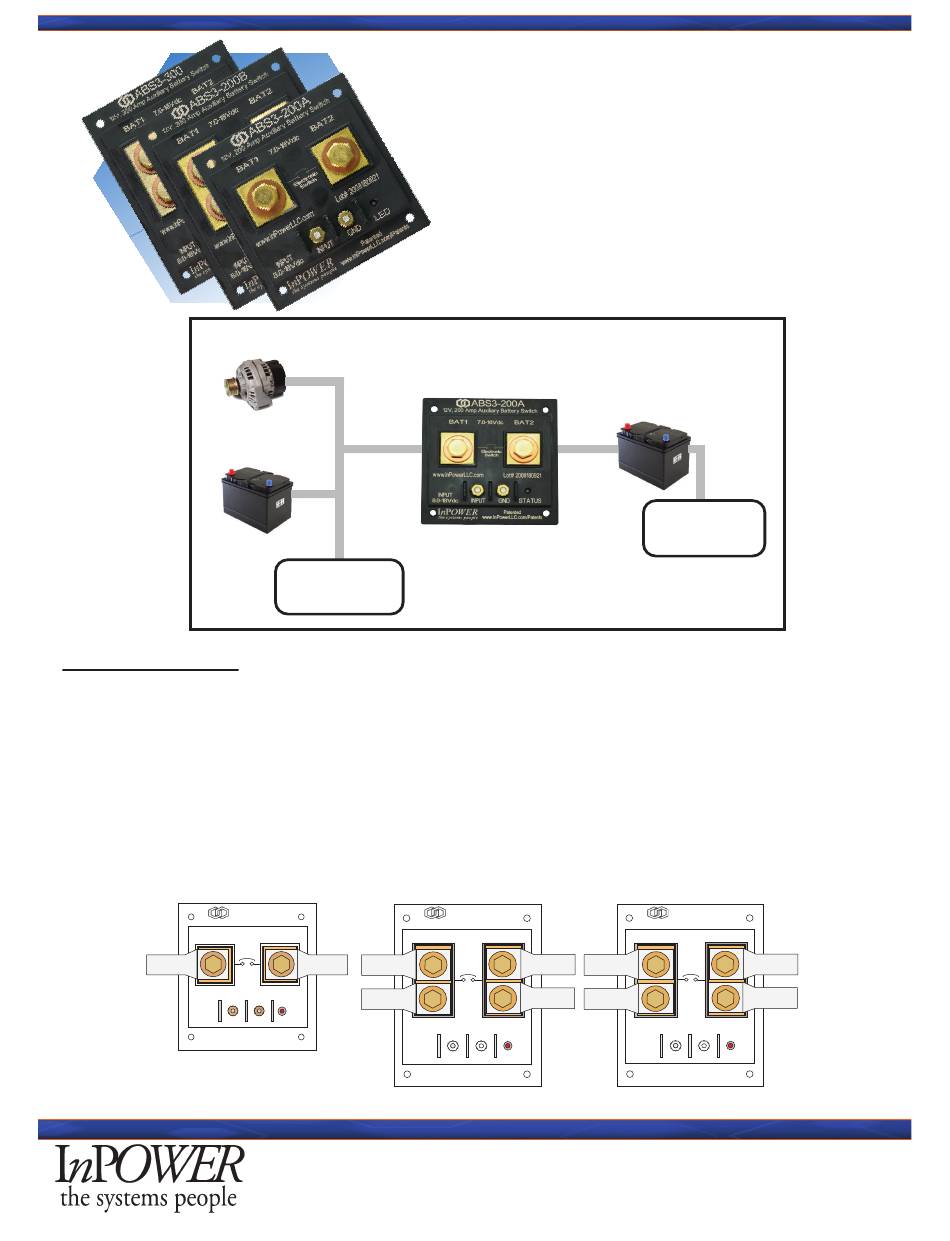

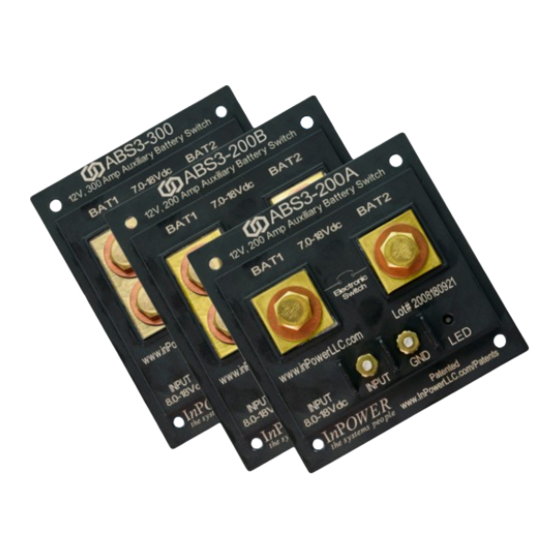

InPower's ABS3 Series Auxiliary Battery Switch is next generation technology for ideal charging and
isolating an auxiliary battery from a vehicle's chassis battery and alternator. This provides automatic
charging in either direction and also insures that the chassis battery will always be available for starting
the Vehicle. In addition there is a Manual mode where the chassis and auxiliary batteries are tied togeth-
er to provide additional starting power.
The ABS3 auxiliary battery switch uses InPower's proven Patented solid-state contactor technology,
incorporating sophisticated microprocessor algorithms that include over-current, over-temperature, and
over and under-voltage sensing. The ABS3 will automatically reconnect if the faults are no longer pres-
ent. The ABS3 is available in 12V 200 Amp, 2 lug and 4 lug versions (ABS3-200A and ABS-200B) and a
12V, 300 Amp 4 lug version (ABS3-300).
