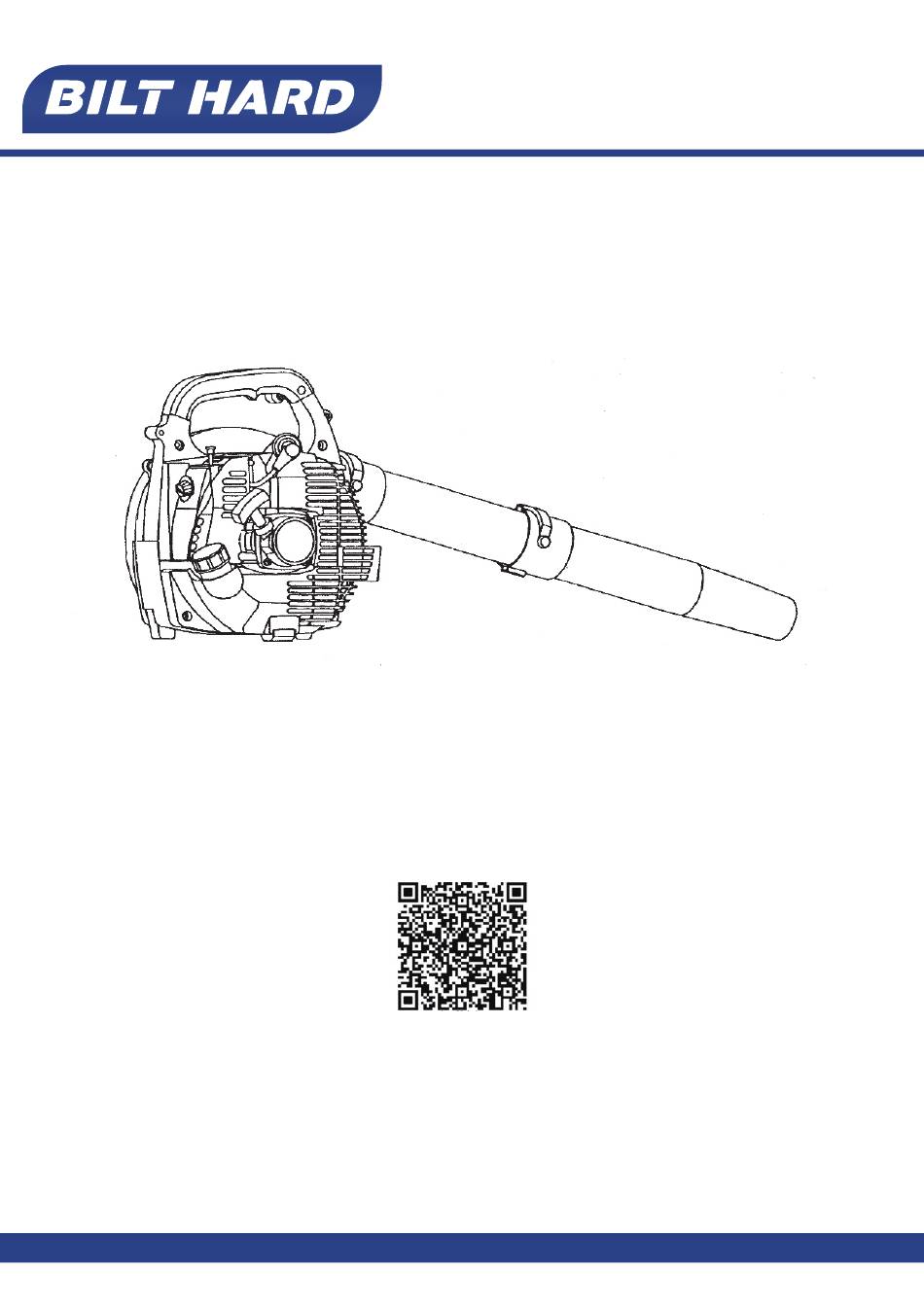

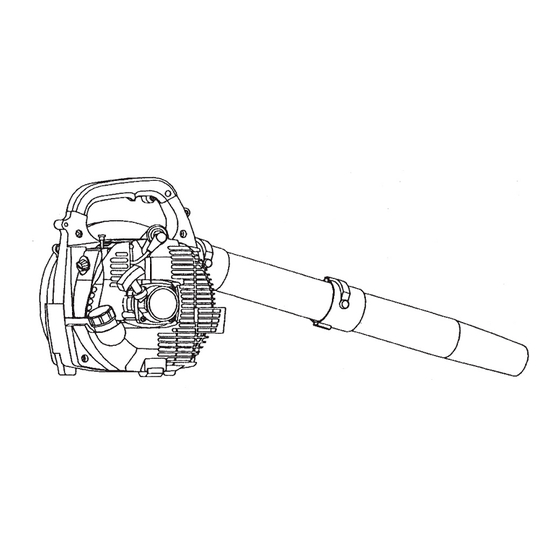

- Page 1 Model: TL-LB-H26 26cc GAS LEAF BLOWER User Manual Using tips: Video on YouTube our website: bilthardusa.com Thank you for ordering our product. If you have any issue, please email it and your order ID to inquiry@bilthardusa.com or call (888) 680-2849.
-
Page 2: Table Of Contents
Model: TL-LB-H26 TABLE OF CONTENTS SYMBOLS SAFETY INSTRUCTIONS STRUCTURAL COMPONENTS PARAMETERS ASSEMBLING THE TUBE MIXING FUEL FILLING THE FUEL TANK STARTING THE BLOWER ADJUSTING ENGINE IDLE SPEED STOPPING THE ENGINE USING THE BLOWER ROUTINE MA INTENANCE SPARK ARRESTOR MAINTENANCE TROUBEL SHOOTING GUIDE... -
Page 3: Symbols
Model: TL-LB-H26 Thank you very much for selecting the BILT HARD blower. We are pleased to be able to offer you the BILT HARD blower which is the resut ofa long development programme and many years of knowledge and experience. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS General Instructions • To ensure correct and safe operation, the user must read, understand and follow this instruction manual to assure familiarity with the handling of the blower (1). Users insufficiently informed will risk danger to themselves as well as others due to improper SAFETY INSTRUCTIONS handling. - Page 5 • Extent of injuries • Your name Packaging The BILT HARD blower is delivered in a protective cardboard box to prevent shipping damage. Cardboard is a basic raw material and is therefore consequently reusable or suitable for recycling (waste paper recycling).
-
Page 6: Structural Components
Model: TL-LB-H26 WARNING! Always wear eye and hearing protection when operating this machine. Minimize the risk of injury: Read this manual and familiarize yourself with its contents. This product is intended for outdoor use only and should be used only in well ventilated area. -
Page 7: Parameters
Model: TL-LB-H26 Model TL-LB-H26 Mass (dry, with blower pipe) (lbs) 9.26 Dimension (L x W x H) (inch) 15.8x10.2x14.2 Max. engine speed (rpm) 8000 Idling speed (rpm) 2800-3000 Engine displacement 26cc Air speed (mph) Air volume (cfm) Fuel Gaspline/ oil mixture 40 : 1 Fuel tank capacity (fl.oz) -
Page 8: Assembling The Tube
Model: TL-LB-H26 ASSEMBLING THE BLOWER CAUTION: Before performing any work on the blower, always switch off the motor and pull the spark plug connectors off the spark plug. Always wear protective gloves! CAUTION: Start the blower only after having as sembled it completely. -
Page 9: Mixing Fuel
Model: TL-LB-H26 Place the blower upright on the ground or on a sturdy work surface. 1. Grasp the straight tube as shown, and push the tube over the blower discharge port and locking pins. 2. Lock the straight tube to the blower discharge prot by rotating the tube as shown. -
Page 10: Filling The Fuel Tank
Model: TL-LB-H26 IMPORTANT! FILLING THE FUEL TANK WARNING! Danger of fire and burn injury! ■Always use extreme care when handling fuel! Fuel is highly flammable! ■Never operate this blower if fuel system components are damaged or are leaking! ■Never attempt to refuel the engine while it is running! ■Never attempt to refuel a hot engine! Always allow the blower engine to cool... -
Page 11: Starting The Blower
Model: TL-LB-H26 STARTING THE BLOWER WARNING! The recoil starter can be damaged by abuse! ■Never pull the starter cord to its full length! ■Always engage the starter before cranking the engine! ■Always rewind the starter cord slowly! Never operate the blower if blower tubes are missing or damaged! IMPORTANT! A two-position "ON-OFF"... - Page 12 Model: TL-LB-H26 STARTING THE BLOWER 3. Place the blower on the ground, and hold the blower handle firmly with Pull the starter 2-3 times. your right hand. 4. Toggle the choke lever downward. 4. Pull the starter cord slowly until you feel the starter engage.
-
Page 13: Adjusting Engine Idle Speed
15 of this manual." In the hands of an experienced operator, the USING THE BLOWER TL-LB-H26 can efficiently move a wide variety of debris ranging from grass clippings to gravel. As a general rule, try to operate your... -
Page 14: Routine Maintenance
Model: TL-LB-H26 ■Use low throttle settings when clearing lightweight materials from around lawns or shrubbery. ■Use medium to higher throttle settings to move lightweight grass or leaves from parking lots or walkways. ■Use full throttle when moving heavy loads such as dirt or snow. - Page 15 Model: TL-LB-H26 CAUTION! CAUTION! Operating the blower with loose,missing, or Dirty or damaged cooling system components may damaged components could allow the engine allow the engine to overheat, possibly causing to overspeed. possibly causing serious engine serious engine damage! damage! ■Inspect the entire blower for damage, louse or missing components or fastenings,and repair as...
- Page 16 Model: TL-LB-H26 CAUTION! Never allow dirt or debris to enter the cylinder bore! Before removing the spark plug. thoroughly clean the spark plug and cylinder head area! Allow the engine 10 cool before servicing the spark plug! Cylinder tightening or loosening the spark plug while the...
-
Page 17: Spark Arrestor Maintenance
Model: TL-LB-H26 SPARK ARRESTOR MAINTENANCE Hard starting or a gradual loss of performance can be caused by carbon deposits lodged in the spark arrestor screen. For maximum performance, the spark arrestor screen should be periodically cleaned as follows. Machine Screw... - Page 18 Model: TL-LB-H26 SPARK ARRESTOR MAINTENANCE 1. Remove the spark plug. 2. Remove three self-tapping screws and two machine screws from the engine cover, and then gently move the engine cover aside. 3. Remove the three spark arrestor retaining screws, then remove the spark arrestor cover, screen, gasket, and chamber.
-
Page 19: Troubel Shooting Guide
Model: TL-LB-H26 TROUBEL SHOOTING GUIDE ENGINE DOES NOT START What To check Possible Cause Remedy Faulty recoil starter. Does the engine Contact with Fluid in the crankcase crank? dealer Internal damage Loose spark plug Good Contact with Excess wear on... - Page 20 Model: TL-LB-H26 TROUBEL SHOOTING GUIDE LOW POWER OUTPUT What To Check Possible Cause Remedy Is the engine Operator is overworking Contact with overheating? the machine dealer Carburetor mixture is Contact with too lean dealer Refill with fresh fuel of the correct mixture...
- Page 21 Model: TL-LB-H26 TROUBEL SHOOTING GUIDE ADDITIONAL PROBLEMS Symptom Possible Cause Remedy Clogged air cleaner Clean the element element Replace the fuel filter Poor acceleration Clogged fuel filter as required Carburetor mixture Contact with dealer too lean Idle speed set too low...
- Page 22 Model: TL-LB-H26 LIMITED 30 DAY WARRANTY BILT HARD makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 30 days from the date of purchase.
