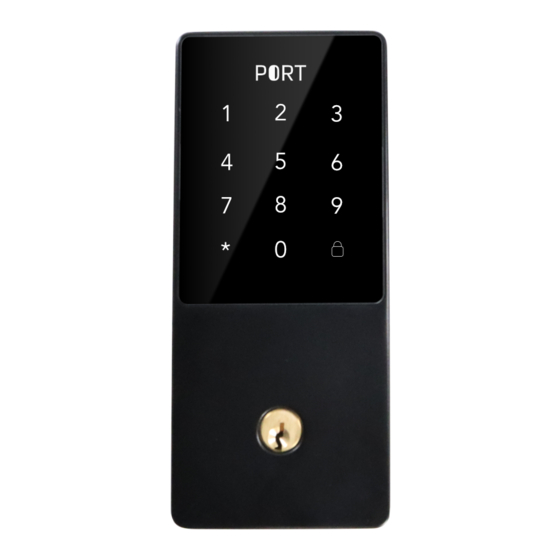

- Page 1 GUARD DEADBOLT LOCK Installation Guide...
-
Page 2: What's Included
WHAT'S INCLUDED Bolt and strike Exterior Assembly Interior Assembly Screws Step 2 Step 3 Step 5 What you'll Phillips head Screwdriver need Note: No drill needed... -
Page 3: Product Overview
PRODUCT OVERVIEW FRONT PANEL BACK PANEL Battery cover Battery pack Keypad & Fob Reader Manual Key USB port Reset button... -
Page 4: Explosive View
EXPLOSIVE VIEW Battery cover Mounting plate Back panel Screws Cable Front panel Bolt... - Page 5 Adjust the backset of latch (if needed) Hold the bolt in front of the If the bolt holes are centered in the door hole, no adjustment door hole, with the latch face is required. Proceed to step 2. If the bolt holes are NOT centered, adjust latch.
- Page 6 Install Bolt...
-
Page 7: Install Front Panel
IMPORTANT! Install front panel outside The knob must be vertical... - Page 8 Connect wire connector Note: Cable goes below deadbolt,The wire connectors can only be connected in one way.
- Page 9 Install back panel inside...
- Page 10 Install batteries and battery cover inside...
- Page 11 Adjust lock direction Note : If Left handle open door : Choose *46# 123456# 1 If right handle open door: Choose :*46#123456#2 After choose ,input 123456# to check if lock unlock properly.
- Page 12 Insert the key and test the installation Install our lock on top...
- Page 13 Port Security System LLC For any technical questions or support call us on: 800 - 219 - 2366 or email us on Authority@portsmartlock.com Visit us at: www.portsmartlock.com...
