SKSNG907 & SKSNG907RV Installation Manual

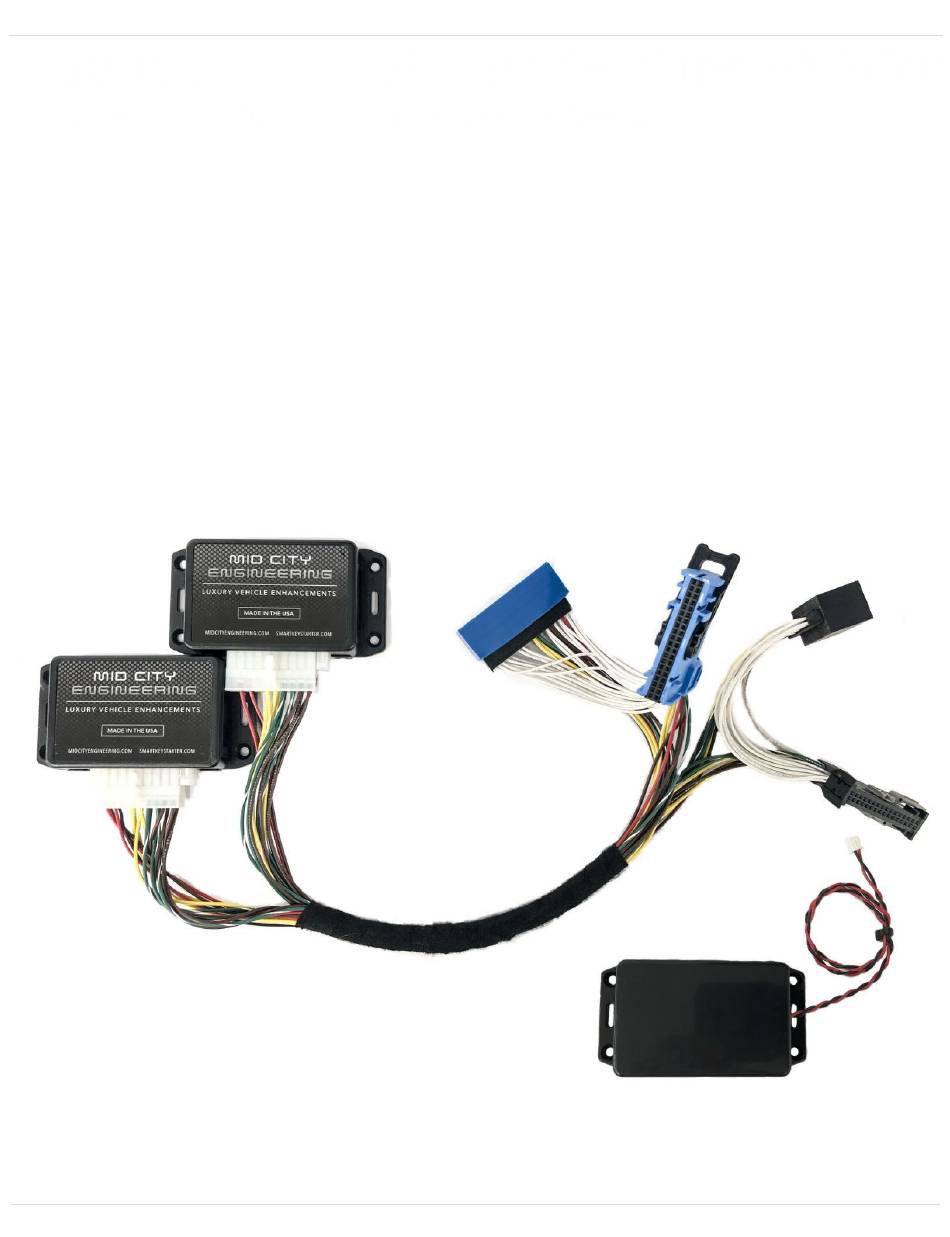

Installation manual for the SKSNG907 / SKSNG907RV remote start, high idle, and alarm for 2019
- 2022 Sprinter (907).
Written By: Noah Thatcher
This document was generated on 2022-11-05 11:15:46 AM (MST).
© 2022
midcityengineering.dozuki.com/
Page 1 of 21
Advertisement
Related Manuals for Midcity Engineering SKSNG907
Summary of Contents for Midcity Engineering SKSNG907
- Page 1 Release: [minor] 2022-11-03 SKSNG907 & SKSNG907RV Installation Manual Installation manual for the SKSNG907 / SKSNG907RV remote start, high idle, and alarm for 2019 - 2022 Sprinter (907). Written By: Noah Thatcher This document was generated on 2022-11-05 11:15:46 AM (MST).
- Page 2 2-way communication (including alarm notifications). All Compustar RF kits are compatible with the system and any Directed RF kit using an XL202 (XL202 not needed if using Directed external alarm). The remote start & alarm installation for the SKSNG907 or SKSNG907RV is 100% plug & play and requires the following steps:...
- Page 3 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 1 — Disconnect chassis battery ground There is a battery quick disconnect that should be used to disconnect the chassis battery ground before performing this bypass ...
- Page 4 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 2 — Un-plug battery quick disconnect cable Locate battery quick disconnect cable behind access panel There is a red tab on the top of the disconnect cable. To release the cable from the post, the red ...
- Page 5 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 4 — Remove intermediate panel Using a pry tool remove intermediate panel between A pillar and kick panel Step 5 — Remove 2 x T20 screws from sill plate Remove the 2 x T20 screws from ...
- Page 6 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 6 — Remove 1 x T20 from below hood release Remove 1 x T20 from below hood release Step 7 — Remove 1 x T20 from bottom of kick panel Remove 1 x T20 from bottom of kick ...
- Page 7 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 8 — Remove plastic push fastener next to knee bolster Remove plastic push fastener next to knee bolster Step 9 — Remove 2nd plastic push pin from kick panel Remove plastic push pin from kick ...
- Page 8 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 10 — Remove 3rd plastic push fastener from kick panel Remove 3rd plastic push fastener from kick panel Step 11 — Remove kick panel Remove kick panel ...
- Page 9 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 12 — Disconnect OBD harness Disconnect OBD harness Carefully route hood release through opening and set trim piece panel aside Step 13 — Locate and un-clip PCM module Un-clip PCM module from bracket in ...
- Page 10 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 14 — Connect T-harness to PCM module chassis harness Locate black 32 pin plug on PCM module Unlatch and unplug black 32 pin connector from PCM module Plug connector into mating black 32 ...
- Page 11 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 16 — Connect T-harness to EIS module chassis harness Locate EIS module in driver kick (mounted to exterior wall below A pillar) Unlatch and unplug 40 pin blue ...
- Page 12 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 18 — Remount PCM module Place and clip PCM module back into bracket Step 19 — Install battery emulator into key Remove battery from extra factory ...
- Page 13 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 20 — Install button pusher and close key box IMPORTANT: When installing the key in the box, make sure that the plastic insert in the key box is pushing DOWN on the UNLOCK button.
- Page 14 2022-11-03 Step 22 — Install hood pin SKSNG907 and SKSNG907RV version 5.26 and up include a hood pin. Mount hood pin under hood in location that will ground (close) the pin when the hood is open, and open the pin when the hood is closed Run wire from hood pin securely through firewall and run to driver side under dash area ...
- Page 15 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 23 — Re-connect chassis battery disconnect cable Reconnect battery disconnect cable from to post from step 2 Ensure that cable locks into place on post. You should feel the tab lock into place. Once connected, you should not be able to remove cable from post without pressing red tab downward Step 24 —...
- Page 16 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 25 — Test hood pin Open hood and attempt remote start Make sure that remote start is disabled when hood is open Step 26 — Test key takeover After remote start, enter vehicle with key and place foot on the brake then press push to start ...
- Page 17 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 27 — Test alarm Roll down driver side window From outside vehicle, close and lock doors with factory key fob Reach inside driver window and ...
- Page 18 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 29 — Install warning sticker The provided warning sticker must be installed in this location or your SmartKey Starter® warranty will be voided Install provided warning sticker on ...
- Page 19 Step 31 — OPTIONAL: Expansion port connections The SKSNG907 and SKSNG907RV with software version 5.26 and up include a 6 pin expansion port and pigtail. This is a 6 wire pigtail with a white plug. The gray wire is used for hood pin (required), as covered in step 20.
- Page 20 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Step 32 — OPTIONAL: START/STOP TRIGGER FOR SKSNG907RV The SKSNG907RV includes an analog start/stop trigger to operate the remote start from an external trigger. The cable has a white 4 pin plug and, if using external start/stop triggers, will plug into the white or green 4 pin plug labeled ‘Trigger Input’...
- Page 21 SKSNG907 & SKSNG907RV Installation … Guide ID: 29 - Release: [minor] 2022-11-03 Be sure to insulate all wires not used on the cable. This document was generated on 2022-11-05 11:15:46 AM (MST). © 2022 midcityengineering.dozuki.com/ Page 21 of 21...
