830 N Milwaukee Ave Chicago, IL 60642
312-421-1114
Smartkey Starter
Installation Instructions
®
Mercedes Benz Sprinter 2007-2016
Tools and Parts you will need
-T-25 driver
-EIS removal tool
-Drill
-3/4" drill bit or Unibit
The Smartkey Starter® is designed as a direct plug in interface to the rear of the Mercedes Benz key
cylinder. Please read this manual in its entirety prior to installation as there is a specific order of
operation that needs to be followed.

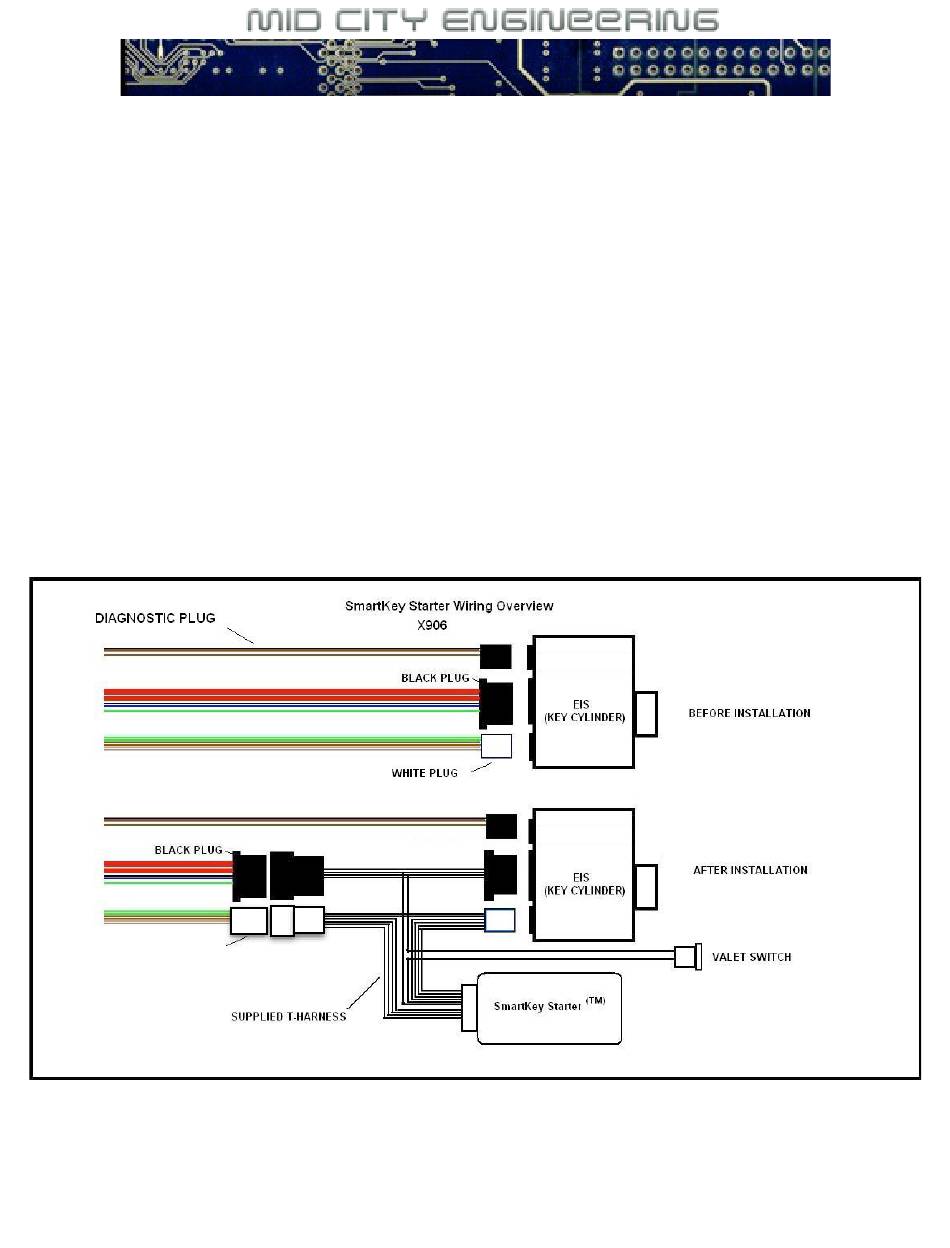

White Plug
Installation Diagram
Copyright 2016 Midcity Engineering™
1
Advertisement
Table of Contents
Related Manuals for Midcity Engineering Smartkey Starter
Summary of Contents for Midcity Engineering Smartkey Starter
- Page 1 -3/4” drill bit or Unibit The Smartkey Starter® is designed as a direct plug in interface to the rear of the Mercedes Benz key cylinder. Please read this manual in its entirety prior to installation as there is a specific order of operation that needs to be followed.
- Page 2 8. Program your remote(s) or connect the data cable from an alarm/remote start system. (see alarm connection section) 9. Start the vehicle and let it run for at least 30 seconds so the Smartkey Starter® can sync to the vehicle.
- Page 3 Remove (3) T-25 Remove left dash panel Remove main dash panel Remove EIS ring EIS Ring Removed EIS connected at bottom of dash Copyright 2016 Midcity Engineering™...
- Page 4 T-harness installed Alarm Connection The SKS906C Smartkey Starter® for Mercedes Benz Sprinter can be controlled directly from a CM7000 Compustar Remote start/alarm combo controller. The SKS906D Smartkey Starter® for Mercedes Benz Sprinter can be controlled directly from a D2D compatible Directed Electronics alarm/ remote start combo (i.e.
- Page 5 These should be connected to the power and ground in the Smartkey Starter® harness. Connecting power and ground elsewhere in the vehicle can result in data communication errors between the Smartkey Starter® and the alarm/remote start brain.
- Page 6 DEI Connection Instructions - XL202 + extended range remote and SmartStart Each DEI compatible Smartkey Starter® is equipped with a (4) pin and a (3) pin connector at the end. The (4) pin connector is designed to accept a D2D cable from an XL202 RF translator module to provide the ability for adding long range remotes and 2 way capability to the Smartkey Starter®.
- Page 7 Light Flash Modification Make connection between end two solder points Standard light flash No light flash Copyright 2016 Midcity Engineering™...
