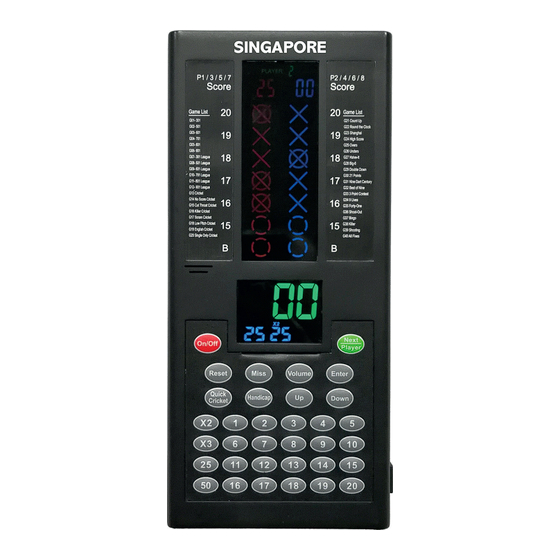

XQ MAX QD7800260 Manual

Dart counter
Hide thumbs
Table of Contents

Advertisement

Quick Links

MANUAL DART COUNTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QD7800260 and is the answer not in the manual?

Questions and answers

Related Manuals for XQ MAX QD7800260

Summary of Contents for XQ MAX QD7800260

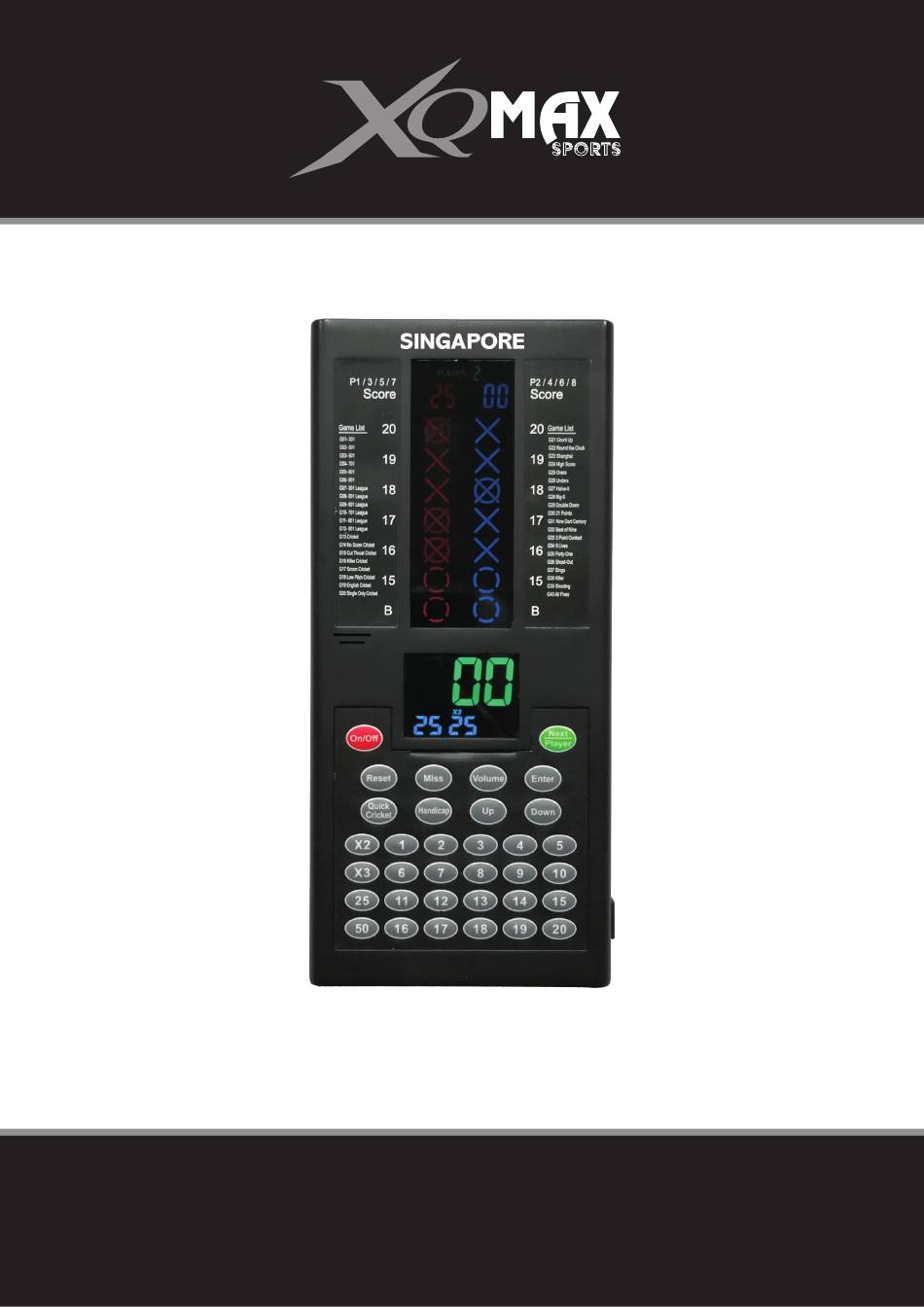

  • Page 1 MANUAL DART COUNTER...

  • Page 2: Mounting Instruction

    Thank you for purchasing this electronic darts scorer. Its computerized scoring system makes game playing easy and enjoyable. With 40 built-in games and over 272 variations to choose from, both beginners and more advanced players will find games to suit them. Up to 8 players can play at one time. Please read the instructions before playing and be sure to save them for future reference.
  • Page 3 Find a spot that aside your dartboard that suit for installation. You need to locate the stud first if you install it on a stud wall. Put the mounting plate on the wall. Align it. Use a leveler if needed. Use a pencil to mark the screw holes.

  • Page 4: Power Installation

    POWER INSTALLATION: The dart scorer is designed to be powered by 3 x 1.5v AA (LR6) batteries. The battery compartment can be opened from the back to install the batteries. To conserve batteries, this dart scorer is equipped with an auto power-off mode. If the dartboard is not being used, it will automatically turn off after 30 minutes.

  • Page 5: Important Note

    • During use, ensure the connecting cable does not present a tripping or other hazard. • After using, switch off the power at the mains and unplug the adapter from the mains and dartboard. • Never leave the adapter connected to the dartboard when not in use. •...
  • Page 6 GAME MENU: Game Name Options Players 1 - 8 1 - 8 1 - 8 1 - 8 1 - 8 1 - 8 301 League 4 - 8 501 League 4 - 8 601 League 4 - 8 701 League 4 - 8 801 League 4 - 8...
  • Page 7 OPERATIONS: Press the ON/OFF button to activate the Dart Scorer. Press the UP or DOWN button until the desired game is displayed. Press ENTER to confirm your selection. Press the UP or DOWN button to select a game option. Press ENTER to confirm your selection.
  • Page 8 Games with HANDICAP feature: Game Name Options Players 301 League 501 League 601 League 701 League 801 League 901 League Cricket Count Up High Score To enter a dart score, press the segment number that matches the segment you hit. For a double, press X2 before the segment number. For a triple, press X3 before the segment number.

  • Page 9: Button Functions

    BUTTON FUNCTIONS: ON/OFF Button – Press ON/OFF to turn on the board. Press and hold ON/OFF to turn the board off. NEXT PLAYER Button – Press NEXT PLAYER to switch to next player after a turn is finished. RESET Button – Press RESET and hold for 2 seconds to return to the beginning of the game.

  • Page 10: Display Functions

    10. DOWN button - This button is used to move downward through selections. 11. Numbered buttons 1 thru 20, 25 and 50 - Use these buttons to enter the segment hit by the dart. 25 is for a single bull and 50 for a double bull hit. 12.
  • Page 11 each player’s segment status when playing cricket or any game that uses marks. The display uses traditional X and O style characters to track the marks. During the game segments will display as marks are scored. Temporary Score - When a dart score is entered, the temporary total score is displayed on the top score digits.
  • Page 12 GAME DESCRIPTIONS AND RULES G01 301 (With 6 options of Single In/Out, Double In/Out and Master Out) The score will be deducted for each dart from 301 points; the first player who reaches exactly 0 will be the winner. Please refer to clause (5) of the operation for the selection of various single in/out, double in/out and master out options.
  • Page 13 G07 301 LEAGUE (With options of Single In/Out, Double In/Out and Master Out, team selection) Similar to 301 Count-down but here the teams play against each other. If a member of the team reaches 0 exactly, his/her team has won. However, there is one condition.
  • Page 14 When a number has been hit 3 times by a player, it is then ‘open’ to that player and any further hits will score points as thrown. Once a number has been hit 3 times by all players, that number is then ‘closed’ and can no longer be scored upon by any player.
  • Page 15 G15 CUT THROAT CRICKET (with options of 00C, 20C, 25C) Same basic rules as the standard cricket EXCEPT points are added to your opponents’ total once scoring begins. The player who first closes all segments with the fewest scores wins. This variation enables players to rack up scores for his opponents, digging them into a deeper hole.
  • Page 16 counts as 0 points. The first round is finished when Player 1 accumulates 9 marks. In round two, the players change their roles. Player 2 hits the bulls’ eye and Player 1 goes for points. The game is over when Player 2 accumulates 9 marks. The player with the most pints is the winner.
  • Page 17 G23 SHANGHAI (with options of L01, L05, L10, L15) Each player has to proceed around the board to score from 1 through 20 and then the bull’s eye, in sequence. The dartboard will display the target number to hit. Players try to score as many points as possible per turn by using all three darts. It will move to next target number after each round.
  • Page 18 G27 HALVE-IT There are 12 rounds of three darts each in this game. The objective is to score as many points of the designated numbers as possible. The designated numbers for each round are: round round round round Any doubles round round round...
  • Page 19 Singles, doubles and triples are all separate targets for this game. The last player with a life left is the winner. The number of lives left is displayed by the cricket display. G29 DOUBLE DOWN The game starts with a base score of 60 for each player. The player has to score by hitting the active segments of the current round.
  • Page 20 G31 NINE DART CENTURY (with options of 100, 150, 200) The options are the target score, see the chart below. Option Target Score 100 Points 150 Points 200 Points In this game each player has 9 darts (three turns) to score 100 (or 150, 200) points without going over, or get as close to 100 as possible.
  • Page 21 We use the upper half of the dartboard to simulate the basketball half, with 11 points, 9 points, 20 points, 4 points, and 6 points into 5 positions. The first 2 balls (darts) are normal balls, and one point is counted. The third ball is Money ball, and two points are counted.
  • Page 22 G34 9 LIVES (with options of 003, 004, 005, 006, 007, 008, 009) This game plays numbers 1 through 20 and bull’s eye in a sequence loop. Players take turns throwing in 1 in the first round, 2 in the second round, and so on, until “25” in the 21 round, 1 in the 22 round and so on.
  • Page 23 Scoring Option -3 -10 -11 -12 No. of Targets 3 Scoring Option -13 -14 -15 -16 -17 -18 -19 -20 -21 Starting Score 13 G37 BINGO (with option 132, 141, 168, 189) The board will display the target segment automatically. The player who first finishes hitting all specified target segments for three times wins the game.
  • Page 24 Option Lives Shoot area (killer) Single, double, triple Single, double, triple ….. … Single, double, triple Single, double, triple Double Double … ….. Double Double Triple Triple …. …. Triple Triple G39 SHOOTING In this game, each player throws three darts. The player with the highest 3 dart total wins that round.
