HAYMAC eCONO Apex Fitting Instructions Manual

Hide thumbs Also See for eCONO Apex:

Advertisement

Quick Links

Download this manual
12x10 & 12x12 eCONO Apex & Apex
The area you choose to install your building must be level and flat - the more care you take in ensuring the
ground where your building is to be installed is level and flat, the easier your building will be to install.

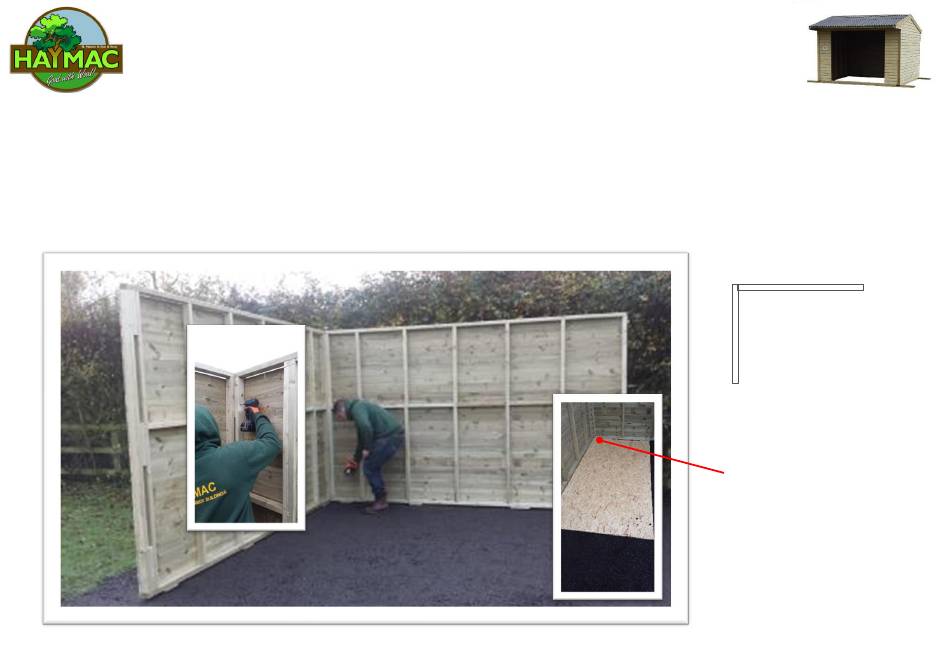

Fit left-hand side panel to rear panel as below using 3 x M8x100mm coach screws and washers – top,
middle &
bottom.
Ensure the panel is level & upright. You can temporarily fix using 100mm screws and
install the coach screws and washers when all 4 walls are fitted together and squared up.
FITTING INSTRUCTIONS
PLUS
Shelter
Approx. 3.47m
Approx. 3.0m or 3.6m
depending on depth of
building purchased
Use the square corner of a
sheet of kick board lining to
check the building is square
