HAYMAC eCONO Apex Fitting Instructions Manual

Hide thumbs Also See for eCONO Apex:

Advertisement

Quick Links

Download this manual
12x10 & 12x12 eCONO Apex & Apex
The area you choose to install your building must be level and flat - the more care you take in ensuring the
ground where your building is to be installed is level and flat, the easier your building will be to install.

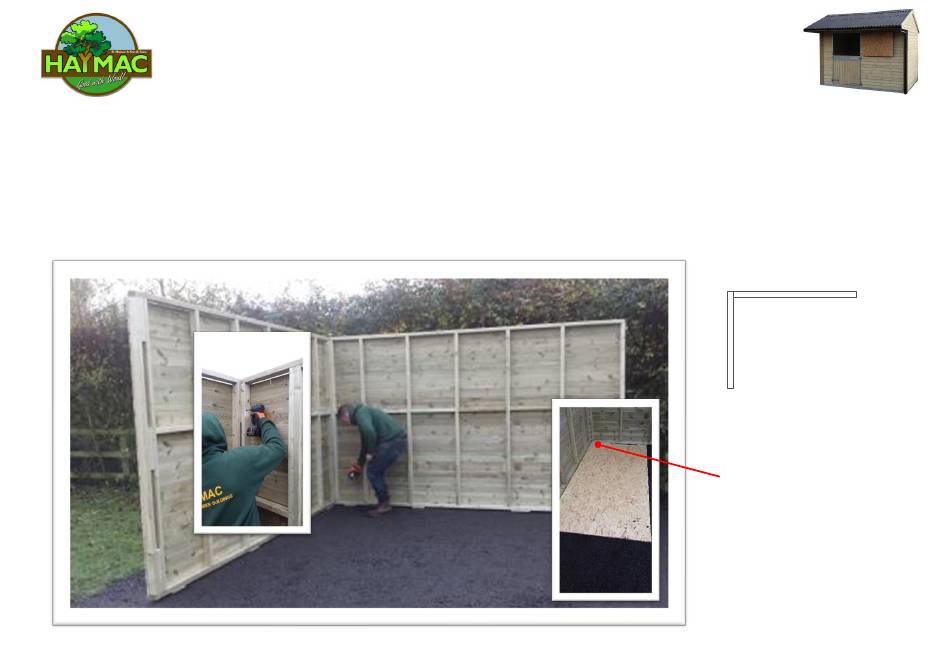

Fit left hand side panel to rear panel as below using 3 x M8x100mm coach screws and washers - top,
middle &
bottom.
Ensure the panel is level & upright. You can temporarily fix using 100mm screws and
install the coach screws and washers when all 4 walls are fitted together and squared up.
FITTING INSTRUCTIONS
PLUS
Stable
Approx. 3.47m
Approx. 3.0m or
3.6m
If your shelter has kick board
lining you can use the square
corner of a sheet to check the
building is square
