Acoustic Research AWS6B3S - 900MHZ+Bluetooth Wireless Speaker Manual

Important Information


RISK OF ELECTRIC SHOCK. DO NOT OPEN.
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualifi ed service personnel.

Important Safety Instructions

  1. Read these instructions.
  2. Keep these instructions.
  3. Heed all warnings.
  4. Follow all instructions.
  5. Clean only with dry cloth.
  6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
  7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.
  1. Protect the power cord from being walked on or pinched particularly at plugs, conv e nience rec ep tac les, and the point where they exit from the apparatus.
  2. Unplug this apparatus during lightning storms or when unused for long periods of time.
  3. Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been dama ged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the app a ra tus has been exposed to rain or moisture, does not op er ate normally, or has been dropped.
For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible. The apparatus shall not be exposed to dripping or splashing or placed near objects fi lled with liquids.

Care and Maintenance

  • Always use a soft cloth to clean the speaker and transmitter. Never use any product containing alcohol or other solvents as they may damage the surface.
  • Use caution when plugging the power transformers in an AC outlet to avoid the risk of electric shock.
  • If the speaker are used outside on a deck or patio, make sure you take them indoors in the event of a rainstorm to prevent possible damage.
  • Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 122ºF/50ºC).

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. These numb ers are located on the product.

Model No.:

Purchase Date:

Dealer/Address/Phone:

Introduction

The AWS6B3S portable wireless speaker is the ultimate in portable sound that goes wherever you go. Bluetooth wireless lets you stream and control your music from any Bluetoothenabled wireless product, great for anywhere you are. The 900MHz wireless transmitter gives you 150ft of room to roam from your audio source, great for outdoor entertaining at home. And the speaker's 3.5mm jack offers a convenient direct connection option to use everywhere in between—just connect your MP3 player and enjoy.

This manual shows you how to set up all three connection options: Bluetooth wireless, 900MHz wireless, and the direct connect jack, beginning with a tour of the speaker and included accessories. If, after having reviewed the instructions, you have any questions, please call toll-free 1-800-732-6866 or visit www.acoustic-research.com.

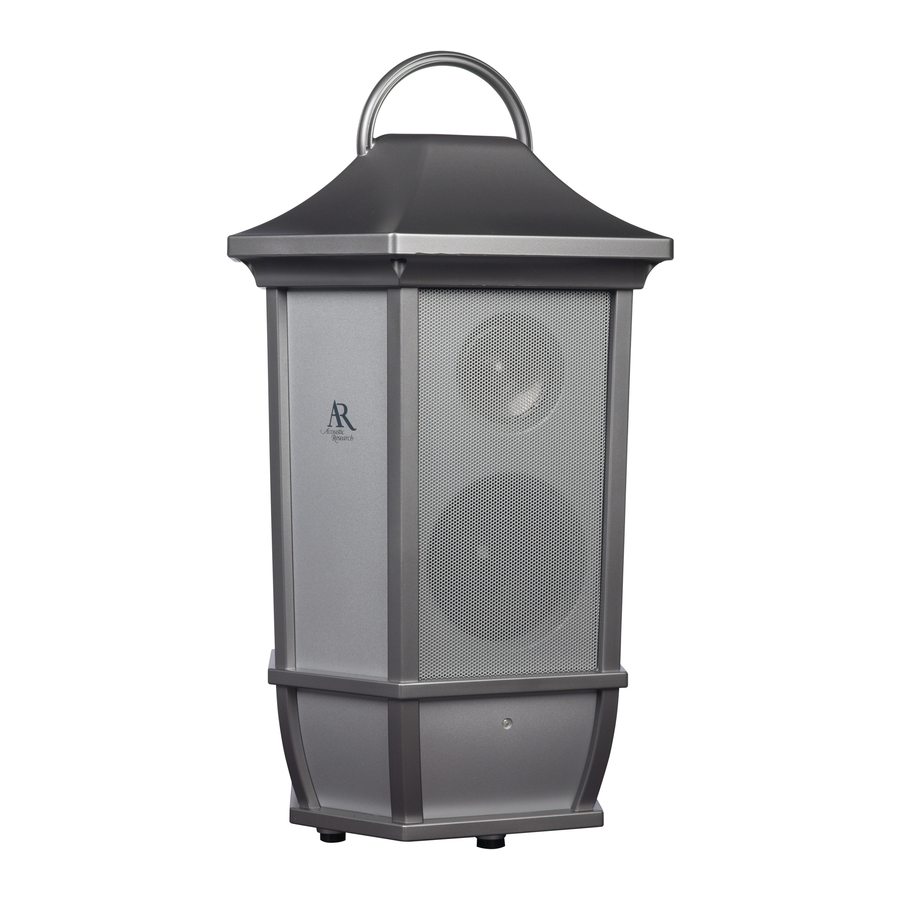

Tour of the Speaker

Speaker

Front panel

Tour of the Speaker

Power and Pairing indicator shows the status of the speaker.

Blue, slow blinking: The speaker is on but not paired or connected (like when you turn the speaker on for the first time).
Blue, fast blinking: The speaker is in Bluetooth pairing mode. See the UsingBluetooth Wireless section for more information.
Solid blue: The speaker is paired with a Bluetooth-enabled device and ready to play audio.
Green, slow blinking: The speaker is on and in 900MHz mode, but not linked with the wireless transmitter.
Solid green: The speaker is linked with the 900MHz wireless transmitter and ready to play audio.

Side panel
Bass Boost
button turns the speaker's bass enhancement on and off.
On-Off / RF-BT turns the speaker on and off (press and hold for four seconds). It also toggles between Bluetooth wireless and 900MHz wireless reception (press).
Scan-RF / Pair-BT scans for the 900MHz transmitter's signal in 900MHz mode (press). In Bluetooth wireless mode, press and hold this button for four seconds to begin pairing with your device.
Volume +/– buttons adjust the speaker's volume level

Bottom Panel
Bottom Panel
L/M/R switch determines if the speaker plays sound in mono as a stand-alone speaker, or plays the left or right track in a stereo pair with an additional AWS6B3S when streaming audio with the 900MHz wireless transmitter
DC IN receives the small round end of the included 10V 1500mA AC power adapter; remove the protective cover to insert the adapter
AUDIO IN connects directly to your MP3 player, smartphone, or other portable audio device, using the 3.5mm audio in cable provided
Battery Compartment Cover (not shown) remove to install 6 AA batteries

900MHz Wireless Transmitter
900MHz Wireless Transmitter
SIGNAL indicator lights green when the audio is present and the transmitter is broadcasting
POWER indicator lights when the transmitter is on
CHANNEL 1 2 3 lets you fi nd the best transmission frequency for your environment
DC IN jack receives the small round end of the included 12V 200mA AC power adapter
AUDIO IN (R / L) connects to your sound source using one of the connection options shown here

Included Accessories
Included Accessories

warning
Note: These power units should be plugged in so that they stay vertical or lie flat.

Powering the Speaker

There are two options to power your wireless speaker: using the included AC power adapter or using 6 AA batteries (not included).
Powering the Speaker

AC Power Adapters

  1. Insert the small, round plug from the speaker AC power adapter into the DC IN jack on the bottom of the speaker.
  2. Plug the other end of the speaker AC power adapter into any standard 120V AC wall outlet.

warning
Note: Be sure to use the speaker AC power adapter rated 10V DC 1500 mA.


This product is water-resistant, not waterproof. Avoid prolonged exposure to wet environments, such as rain, mist, dew, etc. In other words, you can take it out, just don't leave it out. To avoid electrical shock, use this product with caution near water sources if powered with the AC adapter. Never submerge in water.

AA Batteries

  1. Remove the battery compartment cover on the bottom of the speaker.
  2. Insert six (6) AA batteries (not included) into the speaker following the polarity ("+" and "-") as diagrammed inside the battery compartment.
  3. Replace the battery compartment cover on the bottom of the speaker.

warning
Note: Place the rubber cap in the speaker power input jack when using batteries.

DO NOT mix batteries with different chemistry types (for example, a zinc battery with an alkaline battery). DO NOT mix new and used batteries. DO NOT leave batteries installed in the product when not in use for long periods. Always remove old, weak or worn-out batteries promptly and recycle or dispose of them in accordance with local and national regulations.

Using Bluetooth Wireless

Pairing

Any Bluetooth-enabled device with A2DP SOURCE that you wish to stream audio to your speaker system must fi rst be paired to the speaker. The process is simple, and in most cases the pairing process needs to be done only once.

To pair your Bluetooth-enabled device with the speaker:

  1. Make sure your device's Bluetooth is turned on. See the wireless and/or network settings menu on your device to check.
  2. If the speaker isn't already on, press and hold the On-Off / RF-BT button for four seconds to turn it on. You will hear a beep and the indicator light on the front of the speaker will start fl ashing blue.
  3. Press and hold the Scan-RF / Pair-BT button for four seconds to enter pairing mode. You will hear a beep and the indicator on the front of the speaker will start blinking faster.
  4. Open the Bluetooth settings menu on your device. Select "AR SPEAKER" from the list of devices available (you might have to scan for devices). If your device asks for a password, enter "0000".
  5. A confi rmation screen will appear on your device once the speaker and the device are successfully paired. The blue indicator turns solid blue to indicate successful connection. The speaker is now ready for you to stream audio from your device.
  6. Start playing something on the device. You can control the speaker volume on the speaker itself, using the Vol +/– buttons on the side of the speaker, or on your device, using its volume controls.

warning
Note: If you notice the sound from the speaker is distorted, turn down your device's volume.

Streaming Audio With Bluetooth

Once you've paired and connected your device with the speaker, you can control music playback from the palm of your hand. Select your music, stop it, change songs and playlists, all right from your device's screen.

To adjust volume: Press the Vol +/– buttons on the side of the speaker.

To disconnect from the speaker: Either turn Bluetooth off on your device or choose "Disconnect" from the list of options in your device's Bluetooth settings.

To reconnect with the speaker: Just turn the speaker on and wait a few seconds for the speaker to fi nd and connect to your device. If the speaker still hasn't found your device (which may happen if, for instance, another device has been connected after yours) make sure the speaker isn't connected to another device currently. Then select the AWS6B3S from the list of Bluetooth connections available in your device's Bluetooth menu to connect to it.

Using 900MHz Wireless

Powering the Transmitter

Powering the Transmitter
Connect the small, round plug from the transmitter AC power adapter to the transmitter's DC IN jack. Plug the other end of the transmitter AC power adapter into any standard 120V AC wall outlet.

warning
Note: Be sure to use the speaker AC power adapter rated 12V DC 200 mA.
There is no transmitter ON/OFF switch. The transmitter is designed to be left plugged in and powered at all times. If you will not be using the AWS6B3S for an extended period of time, unplug the transmitter AC power adapter.

Connecting to an Audio Source

Connecting to an A/V Receiver

Connecting to an A/V Receiver

  1. Plug the stereo plugs on the provided Y-adapter audio cable into the AUDIO IN jacks on the back of the transmitter (make sure to match the colors on the plugs and jacks).
  2. Plug the mini-plug end of the provided Y-adapter into a mini-jack to RCA adapter (not included).
  3. Connect the stereo plugs on the mini-jack to RCA adapter to the corresponding left and right audio outputs of your A/V receiver, amp, or other audio source.

Connecting to a Portable Audio Device

Connecting to a Portable Audio Device

  1. Plug the stereo plugs on the provided Y-adapter audio cable into the AUDIO IN jacks on the back of the transmitter.
  2. Plug the mini-plug end of the provided Y-adapter into the headphone output of your MP3 player or other portable audio device.

Streaming Audio with 900MHz Wireless Transmitter

  1. Make sure the 900MHz transmitter is on and that there's something playing on your audio source. Turn your audio source up to at least 3/4 full volume.
  2. If the speaker isn't already on, press and hold the On-Off / RF-BT button for four seconds to turn it on.
  3. If the indicator light on the front of the speaker is blue (fl ashing or solid), press the On-Off / RF-BT button once to switch to 900MHz wireless mode. The indicator light starts fl ashing green, which means the speaker is trying to link with the 900MHz wireless transmitter. The indicator light turns solid green when the speaker is tuned to the 900MHz wireless transmitter—you should hear sound coming from the speaker now.

warning
Note: If the speaker is not linked to the 900MHz transmitter, or if the transmitter isn't connected properly, the indicator light will continue to blink. If this occurs, please see the Troubleshooting section of this manual.

  1. Adjust the volume on the speaker as desired. To switch back to Bluetooth wireless mode, press the On-Off / RF-BT button. The speaker's indicator light turns blue.

warning
Notes: If you're using a single speaker with this transmitter, keep the L/M/R switch on the bottom of the speaker in the "M" position (for mono). If you're using more than one speaker with this transmitter, set the speakers to the "L" (left) or "R" (right) positions according to their orientation to the listener.

The speaker automatically retunes if it loses the transmitter's signal. You can also press the Scan-RF / Pair-BT button on the side of the speaker to retune the speaker at any time.

The transmitter turns off automatically if there is no audio signal present for a prolonged period.

Interference in the form of static and/or distortion can sometimes be heard. If this occurs, confi rm the transmitter/speaker adjustments and indicators. If the problem persists, refer to the Troubleshooting section of this manual.

Using the Auxiliary Audio Input

Making a Direct Connection

Making a Direct Connection

  1. Connect one end of the provided 3.5mm audio in cable to the AUDIO IN jack on the bottom of the speaker.
  2. Connect the other end of the cable to the headphone output on your MP3 player or other portable audio device.
  3. If the speaker isn't already on, press and hold the On-Off / RF-BT button to turn it on.

warning
Note: The indicator light on the front of the speaker does not change to show that you're using the direct connect audio input. It stays the color of the wireless mode it's in (Bluetooth or 900MHz) even while you use the direct connection.

  1. To switch back to the speaker's wireless connection, disconnect the 3.5mm cable from the AUDIO IN jack on the bottom of the speaker.


This product is designed to work with line level outputs or headphone outputs only. DO NOT connect it directly to speaker outputs as it will permanently damage the speaker.

warning
Note:The 3.5mm audio direct connection suspends any Bluetooth or 900MHz wireless streaming audio you're listening to. The speaker plays only the direct connect audio when you have something connected to the AUDIO IN jack on the speaker.

Turning the Speaker Off

  1. Press and hold the On-Off / RF-BT button on the side of the speaker to turn the speaker off.
  2. Confi rm that the speaker is off by verifying that the indicator light on the speaker's front panel is no longer illuminated.

Troubleshooting

The following troubleshooting guide takes you through some of the more common problems associated with the installation and/or operation of a wireless system. If the problem persists, please call toll-free at 1-800-732-6866 or visit www.acoustic-research.com.

Issue: Cause and solution:

No 900MHz wireless sound

  • Check that the transmitter AC power adapter is fully inserted into the wall outlet and the power cord from the AC adapter is fi rmly connected to the transmitter power input jack.
  • If you're using the speaker power adapter, confi rm that it's fully inserted into a wall outlet and the adapter power cord is fi rmly connected to the power input jack on the speaker.
  • If you're using batteries for the speaker, check that they are fresh and inserted with correct polarity (+, –).
  • Confi rm that the speaker is in 900MHz wireless mode—the indicator light on the front of the speaker should be either fl ashing or solid green. If the indicator light is blue, press the ON-OFF / RF-BT button on the side of the speaker to switch to 900MHz mode.
  • Confi rm that the speaker is turned on and tuned to the transmitter—the indicator light on the front of the speaker should be solid green (not blinking).
  • Check that the audio source component (stereo, MP3 player, etc.) is turned on and transmitting sound as it normally should.
  • Make sure the volume on your audio source is turned up.
  • Check that the speaker volume is turned up.
  • Make sure you have disconnected the 3.5 mm audio in cable from the AUDIO IN jack.

No Bluetooth
wireless sound

  • If you're using the speaker power adapter, confi rm that it's fully inserted into a wall outlet and the adapter power cord is fi rmly connected to the power input jack on the speaker.
  • If you're using batteries for the speaker, check that they are fresh and inserted with correct polarity (+, –).
  • Confi rm that the speaker is in Bluetooth wireless mode—the indicator light on the front of the speaker should be either fl ashing or solid blue. If the indicator light is blue, press the ON-OFF / RF-BT button on the side of the speaker to switch to Bluetooth mode.
  • Check that the audio source component (stereo, MP3 player, etc.) is turned on and transmitting sound as it normally should.
  • Make sure the volume on your audio source is turned up.
  • Check that the speaker volume is turned up.
  • Move the Bluetooth device and the speaker closer together. The Bluetooth wireless technology generally can operate within a range of 35 feet. However results may vary based on other factors such as room layout, wall material, weather conditions, etc.
  • Make sure you have switched to the speaker's Bluetooth connection when streaming audio with Bluetooth.
  • Make sure you entered the correct passkey when pairing your device.
  • Make sure you have disconnected the 3.5 mm audio in cable from the AUDIO IN jack.

Sound is distortedor
has static

  • When using battery power, make sure the batteries are fresh and replace if necessary.
  • Check that the speaker's indicator light is solid green (not blinking) when an audio source is connected to the transmitter
  • Change the position of the channel select switch (1, 2 or 3) to change the operating frequency. Then press the Scan-RF / Pair-BT button on the speaker's side panel to make the speaker retune.
  • Change the location of the transmitter. Place it as high and away from obstructions as possible. Avoid placing the transmitter directly of or behind a TV.
  • Move the transmitter and speaker closer together. Sending the signal through certain materials, such as glass, tile, and metal, can decrease the effective transmitting distance of the system.

Cannot pair thespeaker
with
your Bluetooth device

  • Make sure the Bluetooth capability of your device is turned on and discoverable.
  • Move the Bluetooth device and the speaker closer together. The Bluetooth wireless technology generally can operate within a range of 35 feet. However results may vary based on other factors such as room layout, wall material, weather conditions, etc.
  • Make sure your device supports audio transfer A2DP.
  • Turn off all other nearby Bluetooth devices or disbale their Bluetooth functionality.

Specifications

Transmitter Speaker
  • Omni-directional 900MHz broadcast
  • Bluetooth® wireless technology: Bluetooth v2.1 + A2DP profile
  • Effective transmitting range: up to 150 ft. (45m)*
  • Push-button, auto-lock tuning
  • Phase-locked loop circuitry (PLL)
  • 2-way acoustic design: 2" tweeter, 3.5" woofer
  • Automatic level control (ALC)
  • 5 Watt RMS internal amplifier
  • 3 selectable broadcast frequencies
  • Frequency response: 40Hz - 15kHz
  • Stereo audio input
    *Maximum range; results may vary according to environment.
  • Left/Mono/Right switch
  • Operates using supplied AC adapter or six (6) AA batteries (not included)
