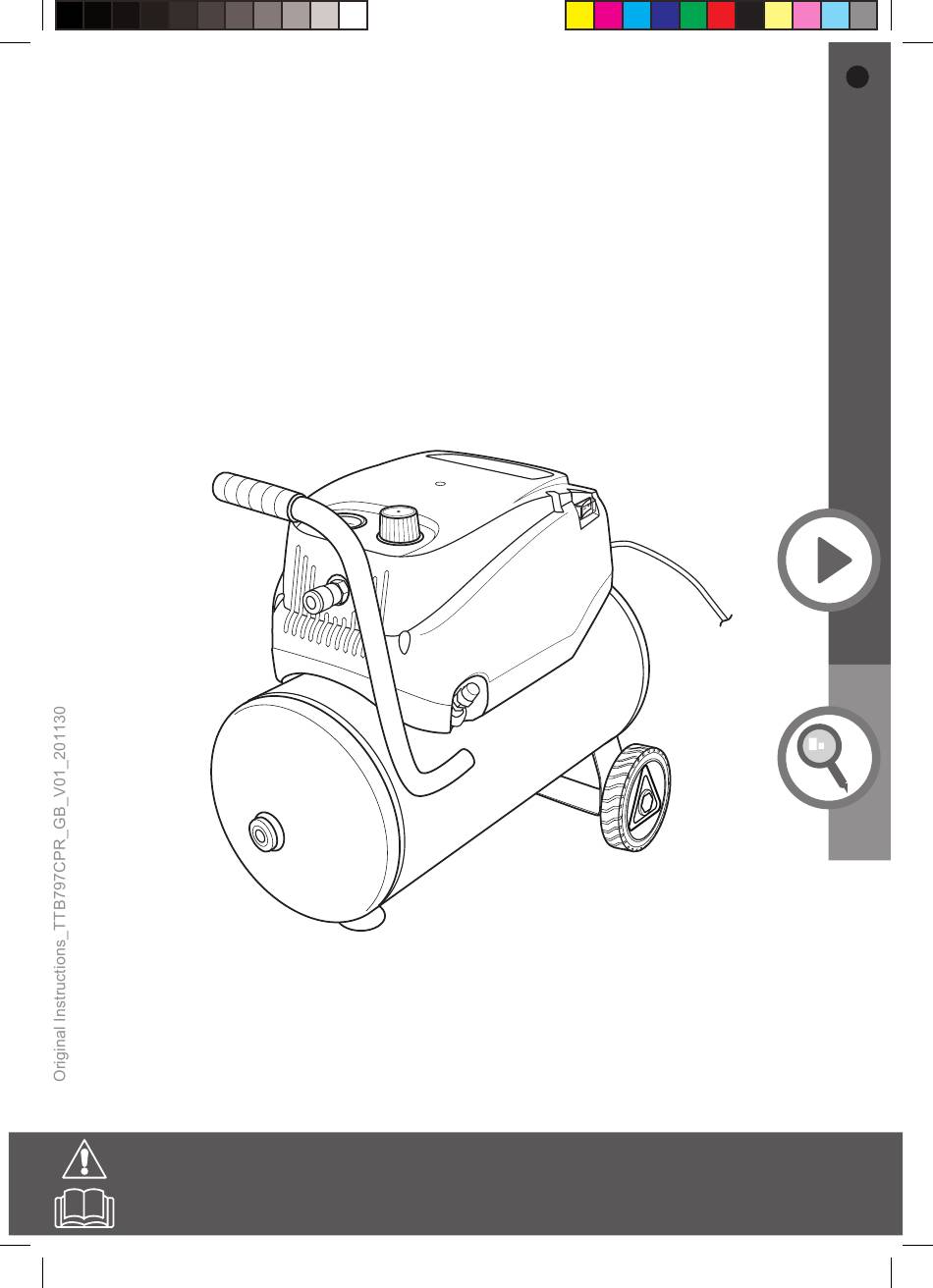

- Page 1 24L 1.5HP Oil Free Air Compressor TTB797CPR EAN: 5059340195100 BX220IM WARNING! Read the instructions before using the appliance! 4/19/17 4:35 PM...
-
Page 2: Table Of Contents
Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee EC declaration of conformity... - Page 3 Safety information TTB797CPR by TITAN Safety warnings >Children shall not play with the appliance. >Cleaning and user maintenance shall not be made by children without supervision. General safety warnings WARNING! When using electric tools basic safety precautions should always be followed personal injury including the following.
- Page 4 Safety information TTB797CPR by TITAN Safety warnings >Store idle product – – When not in use, the product should be stored in a dry locked-up place, out of reach of children. >Do not overload the product – – It will do the job better and safer in the role for which it was designed.
- Page 5 Safety information TTB797CPR by TITAN – – Follow instruction for lubricating and changing accessories. – – Inspect product cords periodically and if damaged have them repaired by an authorised service facility. – – Inspect extension cords periodically and replace if damaged.
- Page 6 Safety information TTB797CPR by TITAN Safety warnings >Warning – – The use of any accessory or attachment other than one recommended in this instruction manual may present a risk of personal injury. >Have your product repaired by a qualified person –...
- Page 7 Safety information TTB797CPR by TITAN >Check the pressure vessel for signs of rust and damage each time before operation. Do not use this product with a damaged or rusty pressure vessel. If you discover any damage, then please contact the customer service centre.
- Page 8 Safety information TTB797CPR by TITAN Safety warnings >Only use hoses and connectors designed for use with compressed air. The maximum working pressure of hoses and connectors must be higher than the maximum working pressure of the compressor. Do not attempt to move the compressor by pulling on the air hose.
- Page 9 Safety information TTB797CPR by TITAN Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks: >Only use the product as intended by its design and...
-
Page 10: Safety Information
Safety information TTB797CPR by TITAN Safety warnings >Injuries and damage to property due to broken attachments or the sudden impact of hidden objects during use. >Danger of injury and property damage caused by flying objects. WARNING! This product produces electromagnetic field during operation! This field... - Page 11 Safety information TTB797CPR by TITAN WARNING! In the event that an air line is cut or broken, the air supply must be turned off at the compressor. A broken air line which is not supported is extremely dangerous and can whip around very quickly, both with the capability of striking people, and blowing foreign particles into the air.
- Page 12 Safety information TTB797CPR by TITAN Symbols Wear protective gloves. Wear protective, slip- resistant footwear. Beware of electric voltage! Warning! Risk of high temperature! Warning! The product may start without warning to maintain the set pressure inside the pressure vessel. Important! Do not turn the pressure regulator open before the air hose is attached.
-
Page 13: Your Product
Your product TTB797CPR by TITAN Your product 12 0 15 0 21 0 1. Pressure gauge 10. Drain valve 2. Pressure regulator 11. Front support 3. Cover 12. Rubber foot 4. On / off switch a. Bolt* 5. Power cord with plug b. - Page 14 Your product / Before you start TTB797CPR by TITAN General > Rated voltage, frequency : 220 - 240 V~ , 50 Hz > Nominal power : 1.5HP/1.2kW > Rated no load speed n : 3450 min > Degree of protection IP30 >...
-
Page 15: Before You Start
Before you start TTB797CPR by TITAN > Make sure the delivery contents are complete and free of any damage. If you your dealer. Using an incomplete or damaged product represents a hazard to people and property. > Ensure that you have all the accessories and tools needed for assembly and operation. - Page 16 Before you start TTB797CPR by TITAN Fig. 1 Assembly Foot > Align the bolt (12a) of the foot (12) with the opening on the front support (11) and insert it (Fig. 2, step 1). > Screw the nut (12b) onto the bolt (12a) (Fig. 2, step 2). Do not overtighten.
-
Page 17: In More Detail
TTB797CPR by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee EC declaration of conformity 4/19/17 4:36 PM... - Page 18 Product functions TTB797CPR by TITAN Intended use This air compressor TTB797CPR is designated with a nominal power of 1.5HP /1200Watts. This product is intended for generating and supplying compressed air to pneumatic power tools and tyres. Connect only attachment tools which maximum air consumption is less than the air output of this product.
- Page 19 Product functions TTB797CPR by TITAN proper levels, the safety valve is automatically deactivated. If the Safety Valve is activated, a hissing noise will be heard. This will stop when the pressure has been released. To check the operation of the safety valve, carry out the following procedure.
- Page 20 Operation TTB797CPR by TITAN NOTE: The Pressure gauge is not calibrated. It is recommended to use a Switching on / off > Press the on / off switch (4) to its on position I to switch the product on (Fig. 5).
-
Page 21: Operation
Operation TTB797CPR by TITAN WARNING! Always switch the product off and disconnect it from power supply before attaching / removing any accessories! > Wrap the thread of the quick-lock coupling with appropriate amount of PTFE tape, connect it into the nut at one end of the air hose and tighten it with a spanner. - Page 22 Operation / Care and maintenance TTB797CPR by TITAN > Disconnect the attachment tool as described above. WARNING! Always check the compatibility between the product and the desired pressure! Do not operate the product in a dusty environment. There is a risk of Never leave the product running unattended.
- Page 23 Care and maintenance TTB797CPR by TITAN WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! > Keep the product clean. Remove debris from it after each use and before storage.
- Page 24 Care and maintenance TTB797CPR by TITAN > Place a suitable container under the pressure vessel (6) and unscrew the drain valve (10) from the drainage opening (Fig.9 ). > Once the water stops dripping, screw the drain valve back in place to close the pressure vessel.
- Page 25 Care and maintenance TTB797CPR by TITAN As the colours of the wire in the mains lead of this product may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows. The blue wire must be connected to the terminal marked with N or coloured black.
-
Page 26: Troubleshooting
Troubleshooting TTB797CPR by TITAN Troubleshooting Suspected malfunctions are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these... -
Page 27: Recycling And Disposal
Recycling and disposal TTB797CPR by TITAN Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. The product comes in a packaging that protects it against transportation damage. -
Page 28: Guarantee
We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product (TITAN 24L 1.5HP/1.2kW Oil Free Air Compressor) has a manu- facturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use. -
Page 29: Ec Declaration Of Conformity
EC declaration of conformity TTB797CPR by TITAN EC declaration of conformity Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product 24L 1.5HP/1.2kW Oil Free Air Compressor Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives:... - Page 30 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products 4/19/17 4:36 PM...
