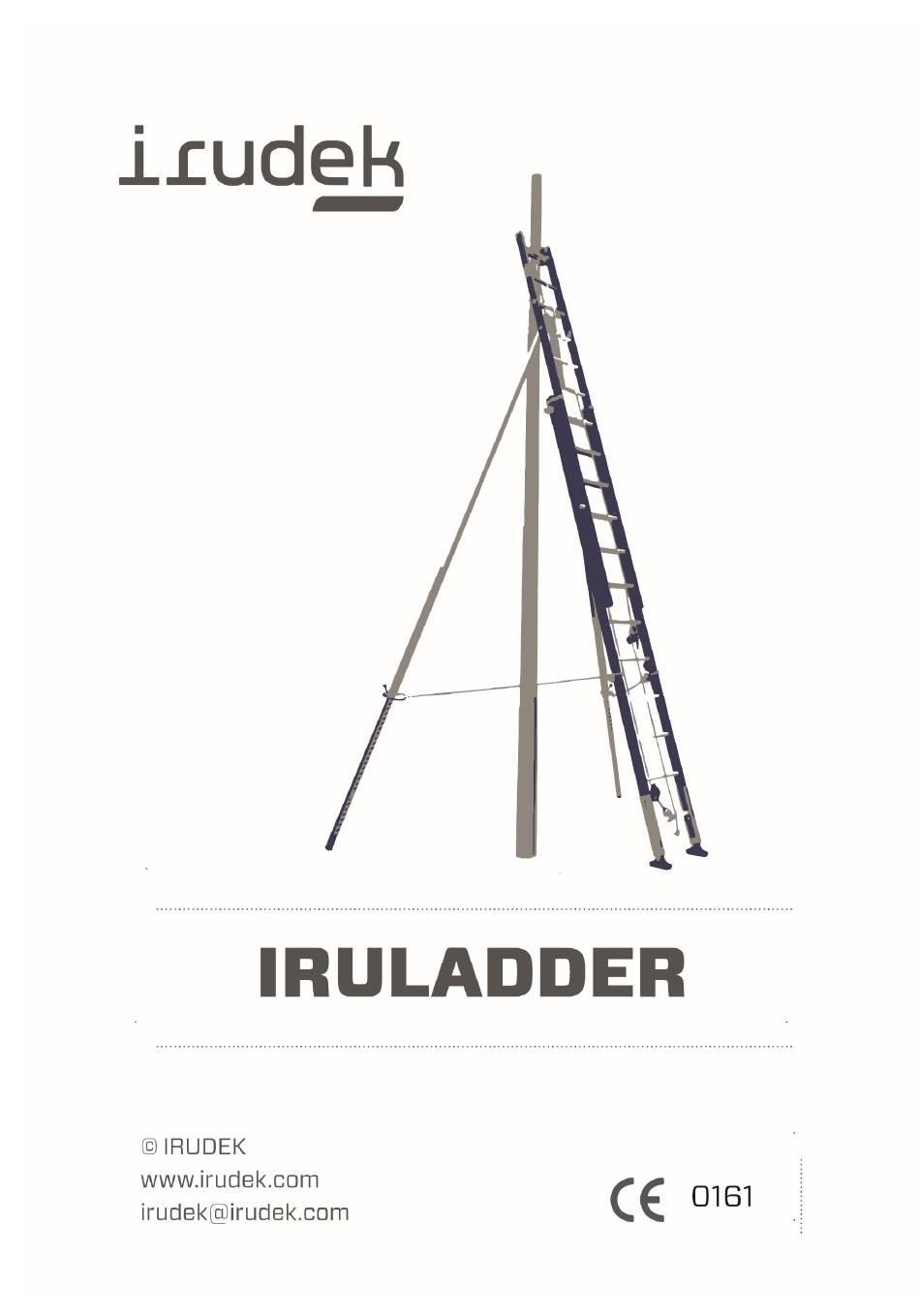

- Page 1 EN Instruction Manual...
-
Page 2: Table Of Contents
INDEX PRODUCT DESCRIPTION ..........................2 NOMENCLATURE ............................. 2 MARKING ................................4 LIMITATIONS OF USE ............................. 5 INSTALLATION OF IRULADDER ........................6 USE ..................................11 PRE-USE CHECKS ............................11 CHECKS DURING USE ........................... 11 WARRANTY ..............................12 USEFUL LIFE ..............................12 TRANSPORT .............................. -
Page 3: Product Description
PRODUCT DESCRIPTION IruLadder is a basic component of the fall arrest system according to the Standard (EN 363:2018). The use of the IruLadder anchorage with a fall arrest subsystem must be compatible with... - Page 4 IRULADDER EXTENDABLE TRIPOD LEGS: 18. Non-slip leg shoe 19. Length signage 20. Leg height regulator 22. Tripod leg attachment adapter 23. Anchor for rope fixing IRULADDER EXTENDABLE SIDE LEGS IRULADDER IRULADDER EXTENDABLE TRIPODDE LEGS...
-
Page 5: Marking
MARKING... -
Page 6: Limitations Of Use
The sternal ring of the harness must also not pass under any circumstances over the upper anchor point of the IruLadder. Personal protective equipment should not be worn by those whose state of health may affect the safety of the user under conditions of normal use or in case of emergency. -
Page 7: Installation Of Iruladder
INSTALLATION OF IRULADDER AS A LADDER The ladder must be hoisted in the correct position: Forming an angle of 72º with the ground in case of being a support ladder. The folding and unfolding must be done on the climbing side of the ladder, not placed in the focus of danger of collapse or fall of the same when handling it. - Page 8 AS AN ANCHOR POINT WITH POLE STABILIZATION Place the ladder on the floor, near the pole or façade where you are going to work. Attach the ROCKER Kit 20 m to the anchor point of the upper step. You must use a connector (carabiner) in this anchorage in accordance with the EN-362 "Connectors"...
- Page 9 The stabilization of the ladder is achieved by increasing the support surface by means of the IruLadder extendable tripod legs. IruLadder in this case is used as a support ladder that requires support on the pole, by placing the stabilizer legs the effort received by the pole is minimized.
- Page 10 Bring the legs beyond the post line. The angle of inclination of the legs on the vertical is 15º. 15º If this staircase is used on the façade bring the legs to the junction of the floor and the façade...
- Page 11 Stabilization in FACADES: the stabilization of the ladder is achieved by increasing the support surface through the extendable side legs. IruLadder in this case is used as a support ladder that requires support on the façade. Ice the ladder and place it at the necessary height, maintaining the requirements of its use as a ladder.
-
Page 12: Use
Do not exceed the maximum total load of 100 Kg. Do not protrude, the user must keep his waist between the stringers and the two feet on the same step during the task. During the task, the fall arrester must be placed as high as possible without ever exceeding the last rung of the ladder. -
Page 13: Warranty
The guarantee request must be accompanied by proof of purchase. In the event that it is determined as a manufacturing defect, IRUDEK undertakes to repair, replace or pay for the product, without exceeding in any case the invoice price of the product. -
Page 14: Maintenance Instructions
At least every 12 months, a periodic in-depth review must be carried out, carried out by the manufacturer or a competent person authorised by the manufacturer, strictly following the procedures for the periodic review of IRUDEK. The safety of users depends on the continuous efficiency and durability of the equipment. The periodic review must be certified according to the requirements of the EN365:2005 standard, determining the validity of the certificate and the date of the next revision. -
Page 15: Irucheck
repairs, and next date for periodic review) must be noted on the control sheet of the equipment.The form must be filled in only by the person responsible for the protective equipment. IRUCHECK The IruCheck application allows, in an effective and agile way, to take control of the fall arrest equipment. - Page 17 EN Instruction Manual...
