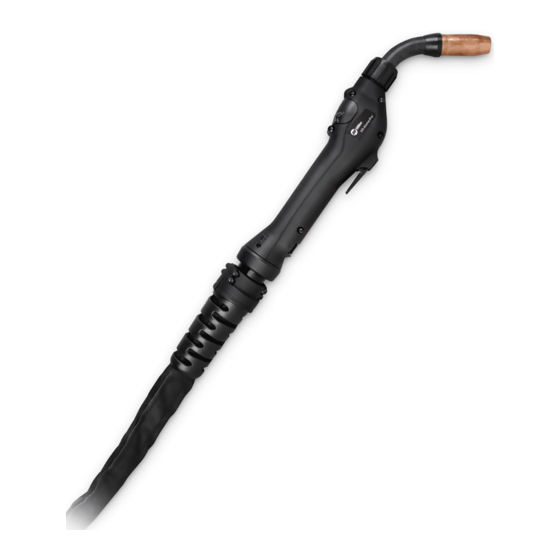

XR-Aluma-Pro Plus
(Air And Water-Cooled Guns)
CE And Non-CE Models
300 Ampere (Air) Push-Pull Welding Gun
400 Ampere (Water) Push-Pull Welding Gun
OM-285555C
2021−05
Processes
MIG (GMAW) Welding
Description
Semi-Automatic, Air/Water-
Cooled, MIG (GMAW) Welding
Gun
™
File: MIG (GMAW)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR-Aluma-Pro 15W and is the answer not in the manual?

Questions and answers

Related Manuals for Miller XR-Aluma-Pro 15W

Summary of Contents for Miller XR-Aluma-Pro 15W

  • Page 1 OM-285555C 2021−05 Processes MIG (GMAW) Welding Description Semi-Automatic, Air/Water- Cooled, MIG (GMAW) Welding ™ XR-Aluma-Pro Plus (Air And Water-Cooled Guns) CE And Non-CE Models 300 Ampere (Air) Push-Pull Welding Gun 400 Ampere (Water) Push-Pull Welding Gun For product information, File: MIG (GMAW) Owner’s Manual translations, and more, visit www.MillerWelds.com...
