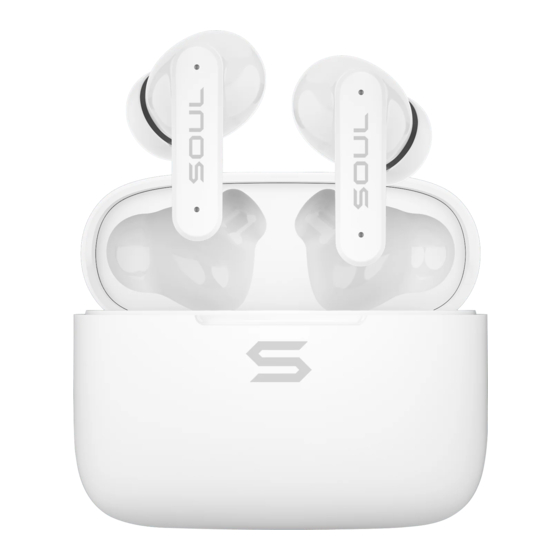

Soul S-LIVE30 Operation Instruction

Soul S-LIVE30 Operation Instruction

Ad6976d chipset

Advertisement

Quick Links

Bluetooth Name:SOUL S-LIVE30
1.Indicator light
Opteration
Item
1.1
Power on
Blue light is on for 1 second
(TWS is connected, the master earbud is
No Light
1.2
connected to the mobile phone)
The blue and white lights of the main and
1.3
TWS Pairing
auxiliary earbud flash alternately quickly
The blue and white lights of the main earbud
1.4
earbuds and mobile phone pairing status
flash alternately slowly, and the auxiliary
earbud has no lights
If there is no connection within 5 minutes,
1.5
Pairing time (mobile phone)
the earbud will automatically shut down
1.6
When making an call (not answered)
No light
1.7
Incoming call
No light
1.8
Talking
No light
1.9
Listening music
No light
white light of main and auxiliary earbud will
1.10
Power off
be on for 1 second
white light of main and auxiliary earbud is
1.11
Charging
always on
full charge
White light will be off
1.12
white and blue light of earbud will flashes
1.13
once
Alarm when battery is lower than 3.5 V
1.14
(Note: After the low power reminder, you can still
Beep once every 2 minutes
listen to music for 15 minutes)

3.Function operation instructions

Code
Function
Status
3.1

Manual pairing and power on

Power off
3.2

Automatic power-on pairing

charging
charging
3.3

Single earbud pairing

in shutdown status
Turn on IOS voice assistant(SIRI & Google
in powered-on
3.5
Assistance
status
Turn off IOS voice assistant(SIRI & Google
in powered-on
3.6
Assistance
status
3.7

Turn on entertainment mode (low latency)

Connection Status
3.8

Turn off entertainment mode (low latency)

Connection Status
When the call is

Answer call

3.9
not connected
3.10

hang up

in calling status
When the call is
3.11

Reject call

not connected and
the three-way call
3.12
cancel dial
dialing
3.13
Device switching
Talking
Three-way call 1, hang up the current call to
3.14
answer a new call
Three-way call 2, keep the current call and
3.15
Three-way calling
answer the new call
S-LIVE30(AD6976D Chipset)
Operation Instruction
Pay attention to light
Flash way
requirements.
After the phone is connected,
the earbud will no longer have a
light signal. Playing music and
incoming calls, etc., the
indicator lights are all in a no-
light state.
For the main and auxiliary earbud, press and hold the power button for 3 seconds, the two earphones will automatically enter the TWS
search pairing mode (the blue and white lights flash alternately), and then automatically complete the TWS connection; the main
earphone will automatically enter the mobile phone pairing mode (alternate blue and white lights). there is no light on the auxiliary
earbud. If the primary and secondary devices fail to reconnect in time (more than 10 seconds), user need to click the power button to
make the earbud into TWS reconnection mode.
(Note: If the primary or auxiliary earbud has never been connected in TWS mode, and the auxiliary earbud has been connected to the
second mobile phone alone, user need to clear the pairing record before connect it to the primary earbud normally.)
Open the charging case and take out the earbuds, the two earbuds will automatically enter the TWS search pairing mode (the blue and
white lights flash alternately quickly), and then automatically complete the pairing of the earbuds; the primary earbud will
automatically enter the mobile phone pairing mode (the blue and white lights flash alternately slowly), the secondary earbud with No
lights. If the primary and secondary earbuds fail to reconnect in time (more than 10 seconds), user need to click the power button to
make the earbud into TWS reconnection mode.
(Note: If the parimary or auxiliary earbud has never been connected in TWS mode, and the auxiliary earbud has been connected to the
second mobile phone alone, user need to clear the pairing record before connect it to the primary earbud normally.)
Take out any earphone separately from the charging case. If the other earphone is not taken out within 30S, the first earphone will
automatically connect back to the mobile phone. If there is no connection record, it will automatically enter the pairing mode.
For the primary or secondary earbud, press and hold the power button for 5 seconds to enter pairing mode. If the other earphone is not
taken out within 30S, the first earphone will automatically connect back to the mobile phone, if there is no connection record, it will
automatically enter the pairing mode
Quickly press the left earphone power button three times (after Siri is activated, user can only speak one sentence, then user have to
manually click the phone voice, otherwise siri will be automatically turned off)
Press the left earphone power button (Apple system only)
Press and hold the power button of the left earphone for 1S, and release it when you hear the voice prompt "Entertainment Mode"
Press and hold the power button of the left earphone for 1S. When you hear the voice prompt "Normal Mode", release it and start it
Press the right earphone power button once
Press the left earphone power button once
Double-click the right earphone power button
Click the MFB button of the right earphone to cancel the dialing before the other party answering the call
During a call, long press the MFB button of the right earphone for 2S to switch the call voice between the earphone and the mobile
phone
When there is a new call during calling, click the MFB button of the right earphone to hang up the current call and answer the new call.
This function requires the support of the mobile phone.
When there is a new call during calling, triple-click the MFB button of the right earphone to keep the current call and answer the new
call. This function needs to be supported by the mobile phone.
2.Voice prompt (English voice)
Code
Function
2.1
Power on
Power On
2.2
Power off
Power Off
Pairing Mode
2.3
Pairing
2.4
Left Channel
Left Channel
2.5
Right Channel
Right Channel
Main earbud is paired
2.6
Pairing successful
with mobile phone
Main earbud is
2.7
disconnected with mobile
Disconnected
phone
2.8
Incoming call
Mobile phone ringtone
2.9
Call end
Call Ended
2.10
Reject call
Call rejected
2.11
Entertainment Mode
Entertainment Mode
2.12
Low Battery
Low Battery
"beep"
2.13
Maximum volume
2.14
Minimum volume
"beep"
2.17
Earbud fixed ringtone
SOUL RingTone
Operation
Voice
Voice&Prompt
Indicator Light
Power On
Blue light on for 1 second
Power On
Blue light on for 1 second
According to the status, the
According to the status, the
corresponding prompt
corresponding prompt
Blue and white lights flash
Pairing Mode
alternately slowly
After a short beep, activate the voice
No light
assistant sound
After a short beep, turn off the voice
No light
assistant sound
Entertainment Mode
No light
Normal Mode
No light
/
No light
call end
No light
call rejected
No light
Cancel dial: beep
No light
Apple mobile phone no sound
/
No light
/
No light
/
No light
