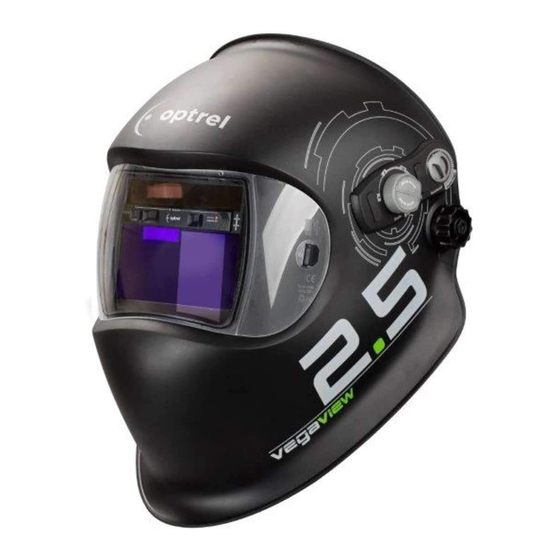

optrel VegaView 2.5 Manual
  1. Manuals
  2. Brands
  3. optrel Manuals
  4. Welding Accessories
  5. VEGAVIEW 2.5
  6. Manual

optrel VegaView 2.5 Manual

Hide thumbs Also See for VegaView 2.5:

Advertisement

Quick Links

Download this manual
swiss made

Advertisement

loading
Need help?

Need help?

Do you have a question about the VegaView 2.5 and is the answer not in the manual?

Questions and answers

Related Manuals for optrel VegaView 2.5

Summary of Contents for optrel VegaView 2.5

  • Page 1 swiss made...
  • Page 2 Notes:...
  • Page 3 QUICK START GUIDE��4 FUNCTIONS�������������������� 6 SPARE PARTS ���������������� 8 ENGLISH �������������������������11 FRANÇAIS ���������������������12 DEUTSCH �����������������������13 SVENSKA ������������������ 14 ITALIANO ������������������� ESPAÑOL �����������������������16 PORTUGUÊS ����������������17 NEDERLANDS �������������18 SUOMI �����������������������������19 DANSK �������������������������� 20 NORSK ����������������������������21 POLSKI ��������������������������22 ČEŠTINA �����������������������23 PYCCKNN ���������������������24 中国 ��������������������������������25 MAGYAR ������������������������26 TÜRKÇE �������������������������25...
  • Page 4 Quick...
  • Page 5 Start...

  • Page 6: Functions And Settings

    SETTING SHADE LEVEL Choose Shade Number (SL 8-12) functions and settings Shade GRIND MODE GRIND ON / OFF Choose Shade Number (SL 8-12) 2.5/ 5-12 1/1/1/2 EN 379 flashing red light (10 min)

  • Page 7: Setting Delay

    SETTING DELAY Sensitivity Choose Delay (Super High Sensitivity) Sensitivity 2.5/ 5-12 1/1/1/2 EN 379 AS/NZS 1338.1 ANSI Z87 W2.5/8-12 complies with CSA Z94.3 Delay switch Sensitivity SENSOR SLIDE swiss made...

  • Page 8: Spare Parts

    2.5/ 5-12 1/ 1/1/ 2 EN 379 inside cover lens AS/NZS 1338.1 front cover lens ANSI Z87 W2.5/8-12 complies with CSA Z94.3 SP05 2.5/ 5-12 1/ 1/1/ 2 EN 379 AS/NZS 1338.1 ANSI Z87 W2.5/8-12 complies with CSA Z94.3 SP03 spare parts cartridge adjust headband...

  • Page 9: Spare Parts List

    battery change SP01 spare parts list order numbers see page 42 SP09 SP01 SP02 SP03 SP07 SP04 SP04 SP05 SP06 SP07 SP08 SP09...
  • Page 10 Schutzstufentabelle EN169 Tableau des niveaux de protection EN169 Shade level chart EN169 Tabella dei livelli di protezione EN169 Ampere Process 100 125 150 175 200 225 250 300 350 400 450 500 600 9 10 11 angebrachte Kennzeichnung bedeutet: indicates: protezione per saldatore contiene i seguenti dati: 2.5 / 8-12...
  • Page 11 English Replacing the the front cover lens (p. 8-9) Push in one side clip to release the front cover lens and then remove it. Attach the new front cover lens to one side clip. Pull the front cover lens round to the second side clip and clip in place. This action requires Introduction some pressure to ensure that the gasket on the front cover lens has the desired effect.
