SCIR
The NetMedia SCIR Infrared (IR) Illuminator provides night vision for IR (850nm) sensitive cameras. It enables
cameras such as NetMedia's B/W and Day/Night color models to see in complete darkness. It mounts to a typical
round 4 inch junction box. Other junction boxes from your local hardware store may also be used after replacing
the round base with another that has a 1/2 inch diameter hole for the elbow bracket.
Product Includes:
1. Illuminator Assembly (IR LED's, IR Passing Filter, Housing, Housing Cap,
Elbow Bracket, Locking Ring, Base, Gasket, Power Connector).
2. 12V DC 300mA Power Transformer, Center Conductor Positive.
3. Mounting Screws.

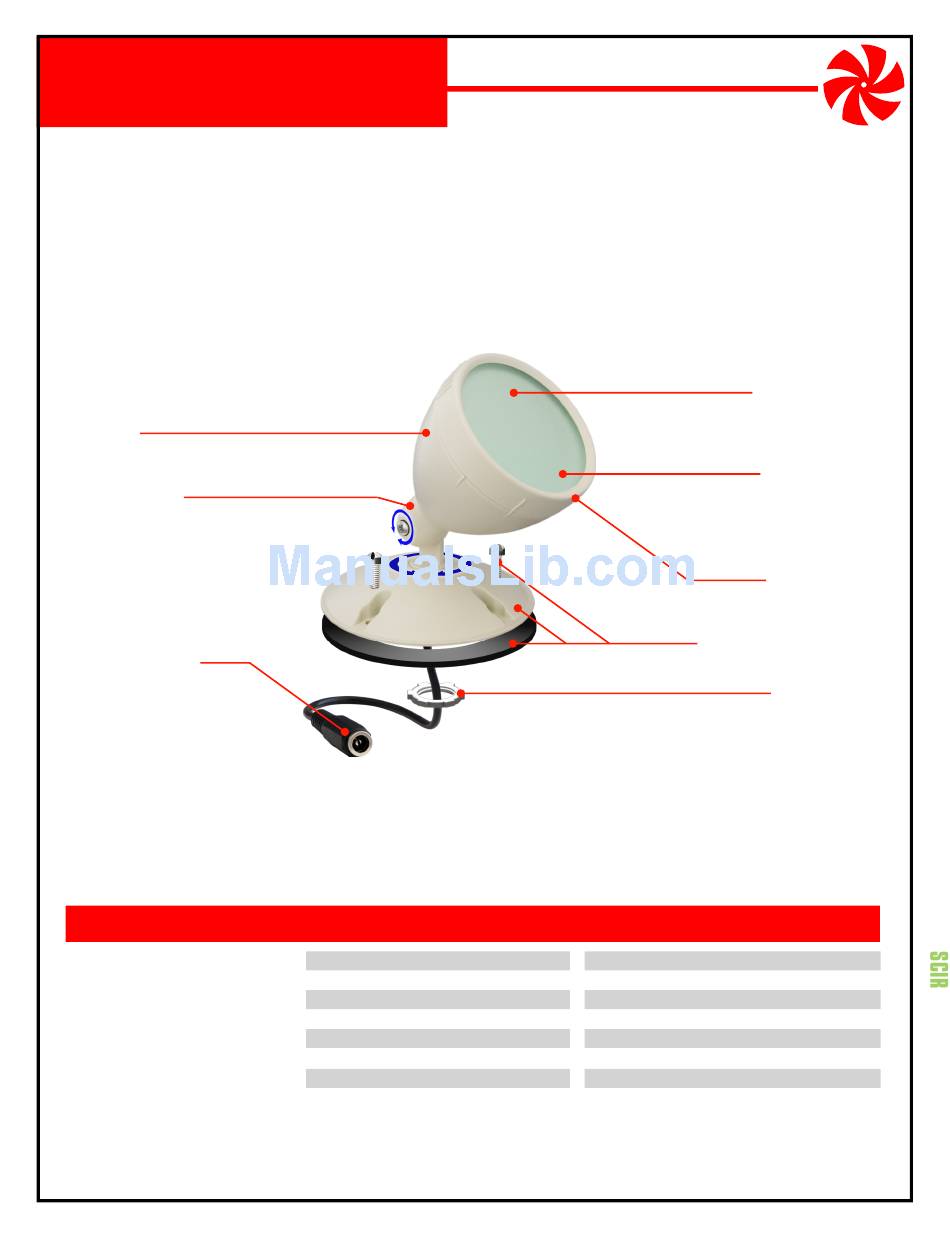

Housing
Available in ivory.
Elbow Bracket
Adjusts illuminator angle at
base, screw, and housing.
Power Connector
12V DC 300mA, center positive.
DO NOT CUT OR SPLICE THE ILLUMINATOR'S CABLES.MODIFYING THE UNIT IN ANY WAY WILL VOID THE WARRANTY.
Installation Procedures:
1. Connect the 12V DC 300mA Power Transformer from an AC outlet to the Illuminator's Power Connector.
2. Mount the base to the junction box (not included) and adjust the Illuminator Assembly for proper lighting. Check
camera to ensure that the desired area is illuminated without shining, either directly or by reflection, into the camera
lens. When satisfied, secure all adjustment points.
FEATURES
Lets cameras see in complete darkness
Works with NetMedia B/W & Day/Night cameras
Provides 30 degree spot light up to 50 feet
Weather resistant enclosure
Internally routed cables
Mounts directly to walls and ceilings
Mounts to standard electrical fixtures
Tamper resistant wiring
Includes power supply
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
Powerful Indoor/Outdoor IR Spotlight
SPECIFICATIONS
Infrared Illuminators:
Illumination Range:
Power Requirement:
Power Connectors:
Housing Size:
Base Size:
Base Mounting Holes:
Assembly Weight:
Infrared Illuminator
30 degree spot up to 50 ft.
Female 5.5mm OD, 2.1mm ID, center positive
4.5" dia. x 0.75" high x 0.5" hole
IR Passing Filter
Hides LED's in daytime.
IR Illuminators
Behind IR Passing Filter -
850nm IR LED's provide night
vision for IR sensitive cameras.
Housing Cap
Protects illuminator.
Gasket, Base & Screws
Mount to round 4" junction box.
Locking Ring
Secures elbow bracket to
base at desired position.
64- 850nm LED's
12V DC 300mA
3.13" dia. x 4" long
3.5" centers
1 lb.
(subject to change without notice)
MAN-SCIR
REV0703A
