NetMedia NM-IRJBOX Specifications

NM-IRJBOX
The NetMedia IRJBOX Infrared (IR) Illuminator provides invisible light for IR (940nm) sensitive cameras. It
enables cameras such as NetMedia's VIDJBOX-HB (SC53) to see in complete darkness. The illuminator mounts in
a wall with its bracket or in a typical single gang junction (light switch) box. It is concealed behind a black cover
plate insert that allows only IR to pass. For best results, do not mount in the same junction box as the camera.
Product Includes:
1. IR Illuminator Board (IR LED's, Power Y-Cable).
2. 12V DC 300mA Power Transformer, Center Conductor Positive.
3. Black Lens Cover Insert.
4. Mounting hardware (Bracket and Screws).

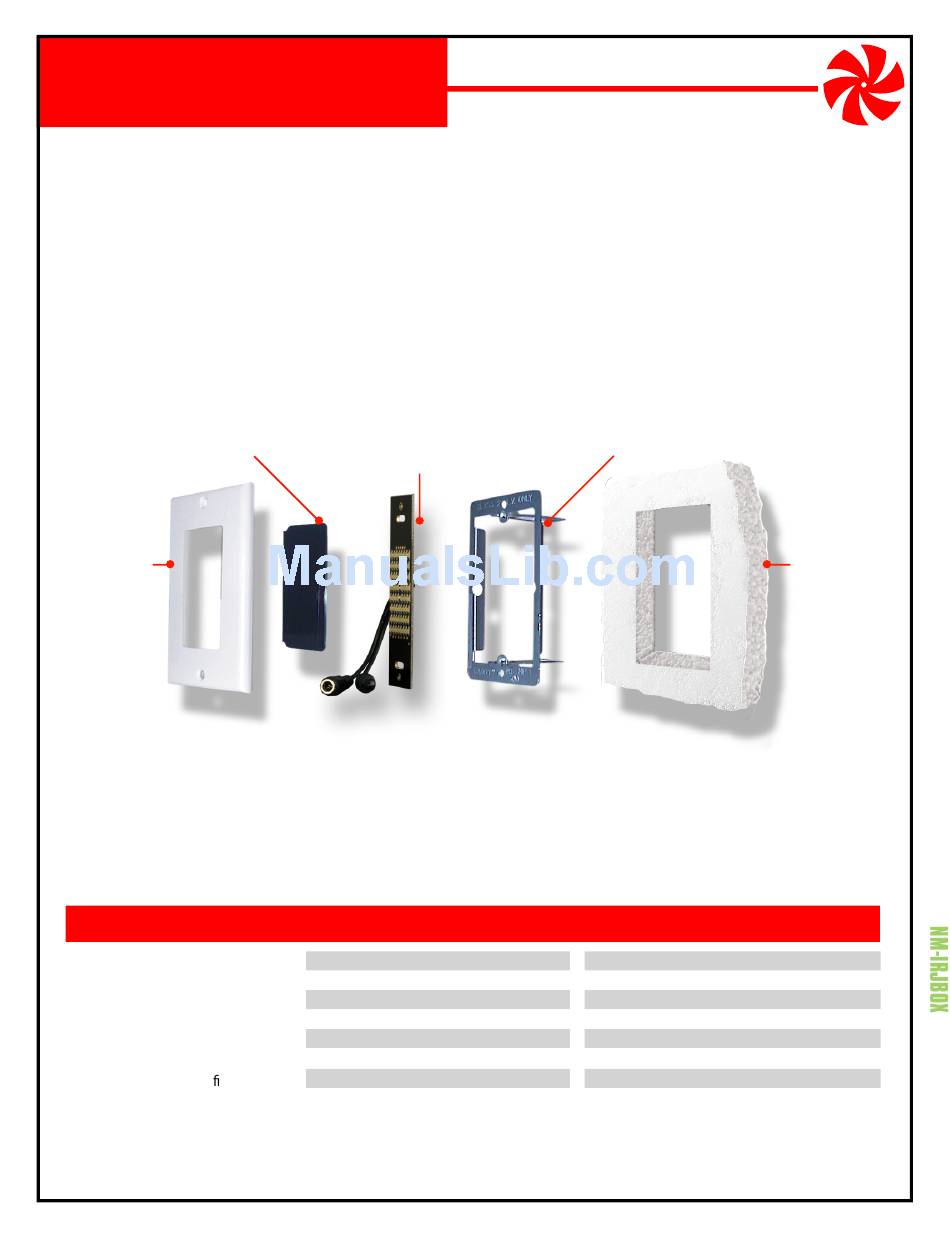

Lens Cover
Black insert conceals
Illuminator, snaps into
Cover Plate.
Cover Plate
Not Included
Installation Procedures:
1. Connect the 12V DC 300mA Power Transformer from an AC outlet to the Illuminator's Power Input Connector. If sharing
power through the Y-Cable, make sure there is enough current for both devices; the Illuminator requires 200mA.
2. Install Illuminator Board into Mounting Bracket or Junction Box (not included). Check camera to ensure that the desired
area is illuminated without shining, either directly or by reflection, into the camera lens.
3. Snap the Black Lens Cover into the Cover Plate (not included) by pressing all four corners in simultaneously. If necessary,
the square corners of the insert may be slightly rounded.
4. Attach the Cover Plate to Mounting Bracket or Junction Box. Silicon or similar sealant may be used as needed.
FEATURES
Lets cameras see in complete darkness
Works with NetMedia Day/Night color cameras
No visible red glow
Wide angle of IR dispersion
Built-in Y-Cable for sharing power
Mounts in standard electrical xtures
Includes Mounting Bracket
Includes power supply
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
IR Illuminator Board
940nm IR LED's provide invisible light
for camera without red glow. Power
Y-Cable provides female input and
male output for 12V DC power.
SPECIFICATIONS
Infrared Illuminators:
Illumination Range:
Power Requirement:
Power Connectors:
Mounting Holes:
Size:
Weight:
Infrared Illuminator
No visible light or red glow
Mounting Bracket
Installs in Wall Cutout.
Illuminator also mounts in
a junction box.
1 Male, 1 Female 5.5mm OD, 2.1mm ID, center positive
4.25" long x 1" wide x 0.2" thick
Wall Cutout
Not Included
64- 940nm LED's
Up to 6 ft.
12V DC 200mA
3.8" centers
0.8 oz.
(subject to change without notice)
MAN-IRJBOX REV0707A
