PRO TRAILER BACKUP ASSIST WITH TRAILER
REVERSE GUIDANCE SENSOR SETUP
Note:
Sensor kit and 7/12 connector must be purchased from dealer.
DETERMINE A SUITABLE LOCATION TO INSTALL THE SENSOR ON YOUR
TRAILER THAT MEETS ALL OF THE SENSOR ATTACHMENT GUIDELINES:
*Attach on a vertical surface with the arrows on the housing pointed up.

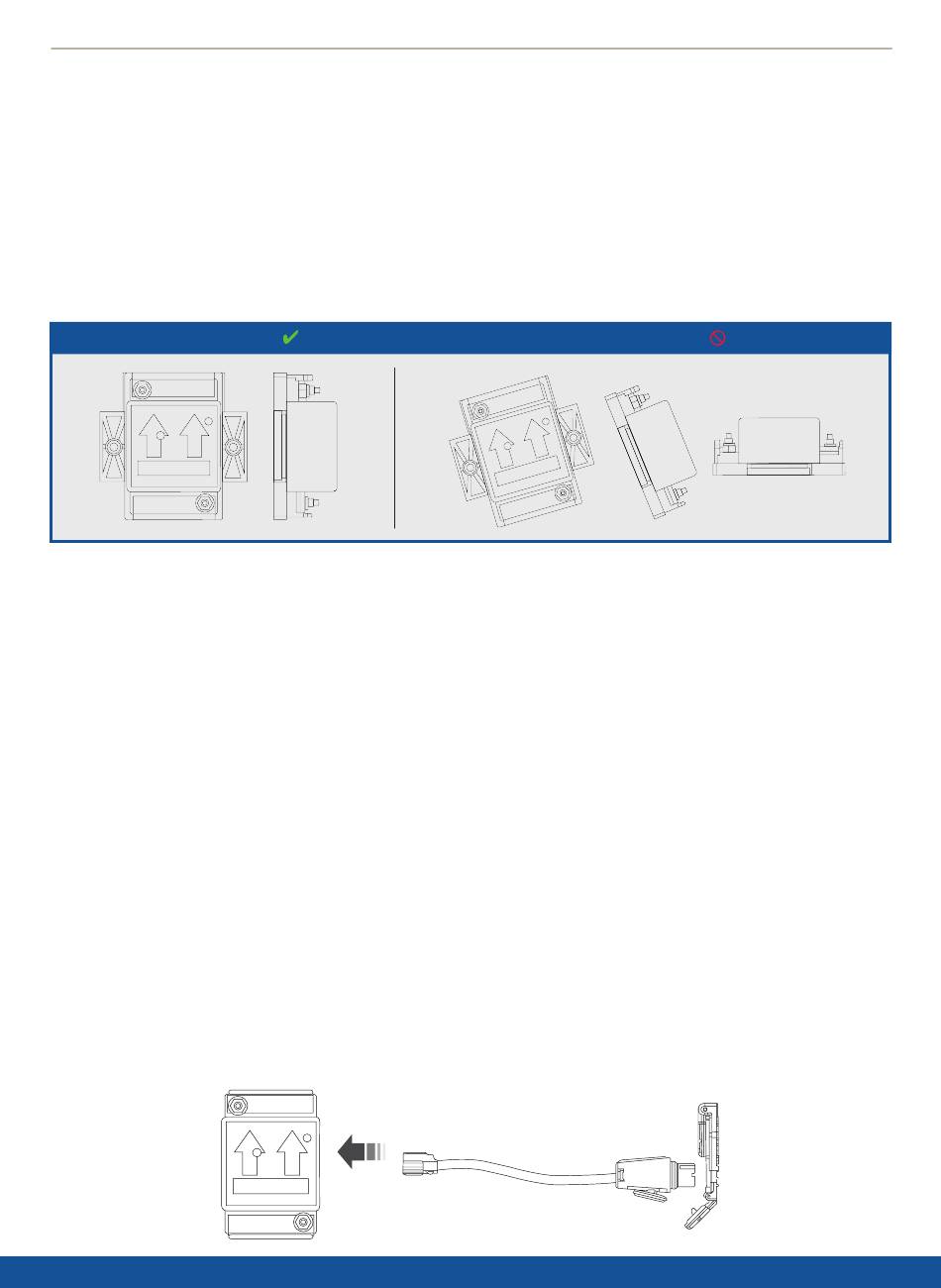

SENSOR ATTACHMENT GUIDELINES
RIGHT WAY
*Attach on a vertical surface close to front of trailer to allow the wiring harness to reach the 12-pin socket on
the truck.
*Attach on a vertical surface with the arrows on the housing pointed up.
*For best performance and ease of use, the sensor should remain on the same trailer. Additional sensors can
be purchased from your dealer.
The sensor can be attached with the included bracket and adhesive tape, or tie straps. Adhesive tape
attachment is best suited for installation on flat, clean surfaces such as a large frame section. Tie strap
attachment can be used for a vertical post.
Prepare the attachment location by removing any debris, chipping paint or rust and wipe the surface clean.
For adhesive attachment, remove protective backing from adhesive. With arrows pointed up, place the
assembled sensor housing and mounting plate on a vertical surface of the trailer. Push firmly against trailer,
pressing firmly against each corner of the sensor housing.
Note:
Do not install adhesive when temperature is below 32° F (0° C). See your Owner's Manual for
more information.
ROUTE WIRING AND CONNECT SENSOR
Using the 15 in (38 mm) tie straps, secure the cable next to the sensor housing within 4 in
(10 cm) of the sensor, leaving enough wiring to unplug and plug in the sensor. Secure the wiring every
12 in (30 cm) to prevent strain on the sensor or the wiring. Route the wiring along the standard 7-pin
electrical cable.
WRONG WAY
ROUTE WIRING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-150 2023 and is the answer not in the manual?

Questions and answers

Related Manuals for Ford F-150 2023

Summary of Contents for Ford F-150 2023

  • Page 1 PRO TRAILER BACKUP ASSIST WITH TRAILER REVERSE GUIDANCE SENSOR SETUP Note: Sensor kit and 7/12 connector must be purchased from dealer. DETERMINE A SUITABLE LOCATION TO INSTALL THE SENSOR ON YOUR TRAILER THAT MEETS ALL OF THE SENSOR ATTACHMENT GUIDELINES: *Attach on a vertical surface with the arrows on the housing pointed up.

  • Page 2: Placement Tips

    19 in 48 cm A-Frame Trailer Tongue Straight Trailer Tongue WARNING: Once placed, the sticker cannot be moved. Do not attempt to reuse stickers if removed. Scan the QR code for additional information about your vehicle. owner.ford.com ford.ca PL3J 19G217 RA...
  • Page 3 All information contained in this Quick Start Guide was accurate at the time of duplication. We reserve the right to change features, operation and/or functionality of any vehicle specification at any time. Your Ford dealer is the best source for the most current information.
  • Page 4 WH AT IS PRO T RAILE R BAC KU P ASSI ST WIT H HOW DO I US E IT ? TO SET U P T HIS T RA ILER R EVE RSE GU I DAN CE? F EAT U RE: Set up this feature by following the steps in this guide.

  • Page 5: Set Up T He Syste M

    FEATURE SETUP SET UP T HE SYSTE M SE LEC T T H E T RAILE R T YP E CONVENTIONAL NON-CONVENTIONAL The system only works with conventional trailers. It does not work with other types, including fifth- TRAILER EXAMPLES TRAILER EXAMPLES wheel and gooseneck.

  • Page 6: Setup Options

    FEATURE SETUP POSI T ION YOU R VE HICLE SET U P O PT I O N S A N D T RA ILER Your trailer can be set up with a sticker that is provided with this guide. Follow the instructions in the next section of this guide to place your sticker and set Read and follow all of these steps carefully to get the best results.

  • Page 7: Make Sure You Have The Following Items

    MAKE SURE YOU GATHER THE FOLLOWING ITEMS BEFORE EXITING THE VEHICLE: For more information about your vehicle, please scan the QR code below Sticker and sticker placement card Tape measure (provided inside the back cover pocket of (not provided). owner.ford.com ford.ca this guide).

  • Page 8: Outside The Vehicle

    FEATURE SETUP PL AC ING T HE ST ICKER OUTSIDE THE VEHICLE STICKER PLACEMENT DIAGRAM • • Take the sticker placement card and the sticker from the back of this guide, and a tape measure, and walk back to the trailer. •...

  • Page 9: F Eat U Re O P Erat Ion

    CAL IB RATION F EAT U RE O P ERAT ION USING PRO TRAILER BACKUP ASSIST • • To switch on the system, press the center button on the knob and watch the touchscreen. Use the touchscreen to select the connected trailer. The system Note: You can calibrate within the Pro Trailer Backup Assist or Trailer Reverse Guidance system.
  • Page 10 F EAT UR E OPERAT IO N F EAT U RE O P ERAT ION USING TRAILER BACKUP ASSIST USING TRAILER REVERSE GUIDANCE Trailer Reverse Guidance provides informational graphics and up to seven camera views to help you back up the trailer while using the steering wheel to •...
  • Page 11 V I EW OPERAT I ON H ITC H AN GLE G RA PH IC Use the buttons below to select the best view for backing up your vehicle and trailer. You can use these views for Pro Trailer Backup Assist or Trailer Reverse Guidance.
