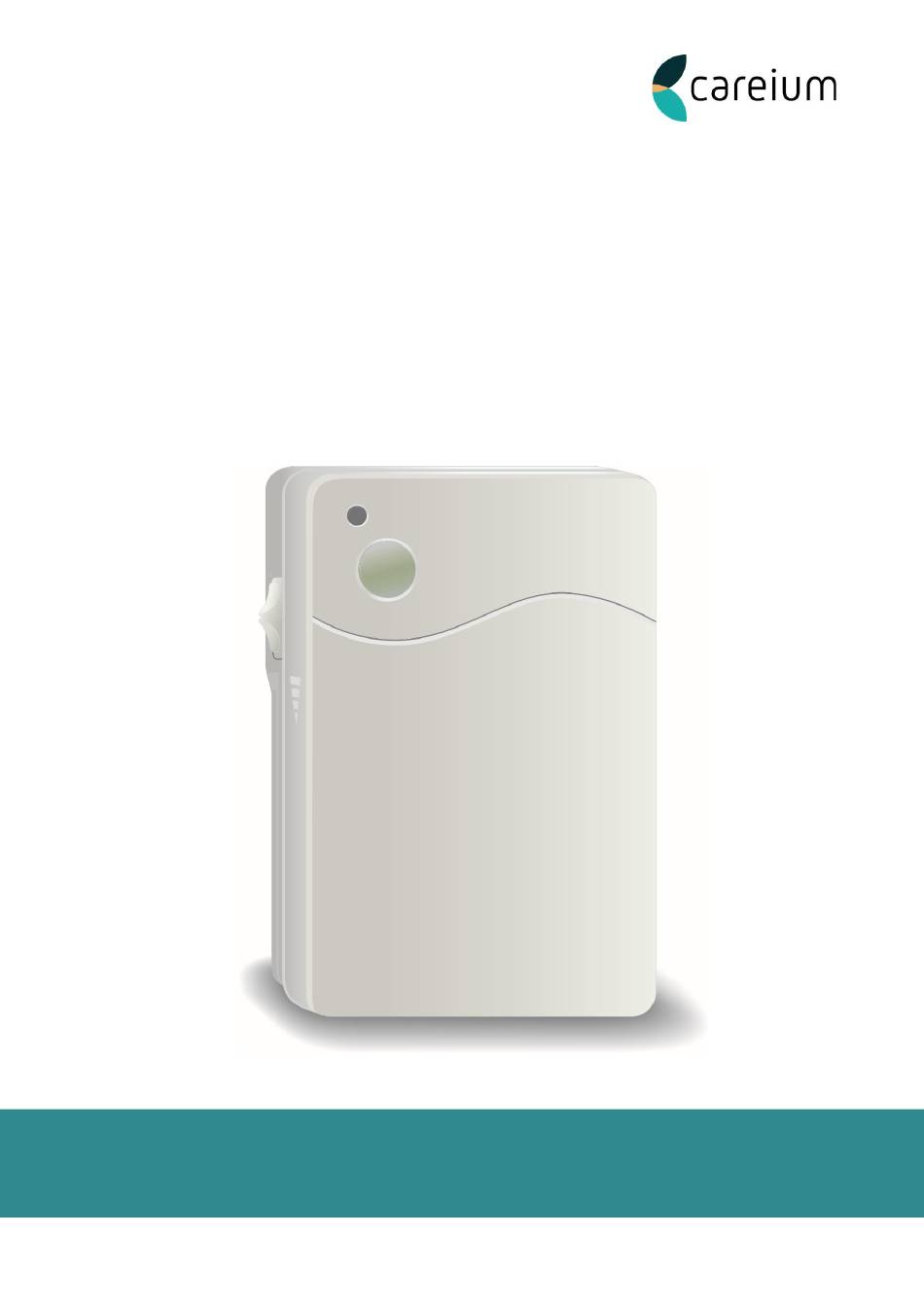

- Page 1 mBox 9200 USER GUIDE...
- Page 2 © 2023 Copyright Careium Sweden AB, Rev C Careium Sweden AB, Jörgen Kocksgatan 1 B, 211 20 Malmö, Sweden Corporate identification number: 556569-9740...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ........................3 SAFETY INFORMATION ........................5 Medical units ..........................6 Important information ......................6 PACKING CONTENTS ........................7 Accessories and Sensors ......................7 FUNCTIONAL DESCRIPTION ......................8 Overview ............................. 9 mBox and the basic functions ................... 9 9200 A –... - Page 4 G – Door alarm, presence ...................... 19 I – Radio pairing ........................19 J – Look out ..........................20 MAINTENANCE ..........................21 Cleaning ............................ 21 Battery ............................21 TECHNICAL INFORMATION ......................22 mBox ............................22 Sensors ............................22 ENVIRONMENT ..........................22 ENVIRONMENTAL INFORMATION .....................
-
Page 5: Safety Information
SAFETY INFORMATION Always read and follow the safety information accompanied by this symbol. Always test the system according to the instructions before use and always test • the product after adjustments have been made. The device is not always suitable for all users and should not be seen as a •... -
Page 6: Medical Units
All systems using radio and network communication are subject to interference beyond the user’s control. Products from Careium are designed to minimize the impact of such interference. Nevertheless, the user must be aware that system components can be subjected to interference or other influences that may cause malfunction. -
Page 7: Packing Contents
PACKING CONTENTS The packing contains: One mBox 9200 including mounted batteries. • Screws for mounting the mBox on a wall, door frame etc. • Accessories and Sensors Following accessories and sensors are available to purchase: Velcro tape (replacement for mounting screws), art.nr: 300 125 •... -
Page 8: Functional Description
FUNCTIONAL DESCRIPTION The mBox is a multibox that can be used for following functions: Door alarm • Bed alarm • Chair alarm • Carpet alarm • Door alarm allowance • Look out • By programming the unit, further functions can be activated or changed, contact •... -
Page 9: Overview
Overview Indicator lamp Reset button On/off switch Micro-USB Sliding cover mBox and the basic functions 9200 By opening the sliding cover to the first position access is given to the function selector with 10 optional setups. Choose position, A-J, depending on how the unit shall be used. -
Page 10: A - Door Alarm
A – Door alarm When the mBox is set to position A, the unit is, in combination with a magnetic contact*, working as door alarm. A short push on the reset button gives following functions: Temporarily inactivates the alarm for passing through the door, mBox is •... -
Page 11: D - Repeater
D – Repeater When the mBox is set to position D, the unit is working as a repeater of radio signals. The following functions are available: Repeating all radio signals. • Repeating only radio signals from paired radio transmitters. • E –... -
Page 12: I - Radio Pairing
I – Radio pairing When the mBox is set to position I, the unit is in pairing mode. A radio transmitter can be paired with the mBox to unlock functions in mode D (repeater), E (radio receiver) and J (Look out). The following functions are available: A short press on the reset button activates or deactivates the radio pairing •... -
Page 13: Indicator Lamp
Indicator lamp Green light: • Confirmation of alarm indicates with a short green light. Green, continuous light: • Unit is using an external power supply. The unit is in mode G with presence activated. Green flashing light (every 6th second): •... -
Page 14: Installation
Pairing the mBox with a carephone The mBox can be connected to different sensors and can be paired to a Careium Carephone as described in the following sections for each selectable mode. The mBox can also be connected to other social alarm systems, please refer to that... -
Page 15: A - Door Alarm
A – Door alarm Mount the mBox on the door frame using the supplied screw or adhesive Velcro*. The magnet must be mounted on the door with 5-10mm distance to the right long side. See the picture. Connect the mBox to the Carephone as following: 1. -
Page 16: A - Carpet Alarm
A – Carpet alarm Open the sliding cover completely and remove the plastic cable cover in the bottom of the unit. Connect the carpet sensor to the connector on the mBox, feed out the cable thru the bottom of the unit and close the sliding cover. -
Page 17: B - Bed/Chair Alarm, 10 Seconds
B – Bed/chair alarm, 10 seconds Open the sliding cover completely and remove the plastic cable cover in the bottom of the unit. Connect the bed/chair sensor to the electrical connector on the mBox, feed out the cable through the bottom part of the unit and close the sliding cover. Connect the mBox to the carephone as following: 1. -
Page 18: D - Repeater
D – Repeater Place the repeater between an area with low radio coverage and the carephone. Pair a radio transmitter with the mBox to only repeat the radio messages from the paired unit. All radio messages are repeated if no radio transmitter is paired with the mBox. -
Page 19: G - Door Alarm, Presence
G – Door alarm, presence Mount the mBox on the door frame using the supplied screw or adhesive Velcro*. The magnet must be mounted on the door with 5-10mm distance to the right long side. Connect the mBox to the Carephone as following: 1. -
Page 20: J - Look Out
J – Look out A mBox paired with a Motion* work together as a door alarm with look out function. Mount the mBox on the door frame using the supplied screw or adhesive Velcro*. The magnet must be mounted on the door with 5-10mm distance to the right long side. Mount the Motion in a location where the client regularly pass through. -
Page 21: Maintenance
MAINTENANCE Cleaning All accessories from Careium can be cleaned with a slightly damp cloth. Do not use strong detergents or solvents. Battery By opening the sliding cover to the second position, access is given to the batteries. Use only Alkaline AA (LR06) batteries with good quality. -
Page 22: Technical Information
TECHNICAL INFORMATION mBox Article number: 300 154 Dimensions: 110 x 70 x 41/100 mm Power supply: 2x 1.5V LR6/AA Alkaline batteries External power Duration: Up to 24 months running on batteries Radio frequency: 869,2 MHz Equipment class: Class 1 radio equipment Sensors Bed sensor Chair sensor... -
Page 23: Environmental Information
The product can be returned free of charge to a recycling station that is connected, directly or via a recycling system, to Careium or to your distributor. For detailed instructions, please check with your distributor or visit our website, www.careium.com...
