Summary of Contents for AOFAR HX-700N

  • Page 1 - 1 -...

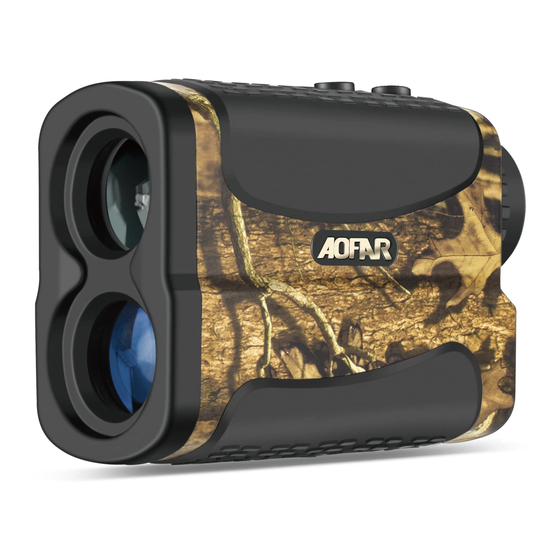

  • Page 2 INTRODUCTION: The laser rangefinder HX-700N is a portable optoelectronic device which can be used to measure the distance of a stationary object within a certain range. It possesses advantages such as high accuracy, short measuring time, low power consumption and automatic power-off for power saving. It is advantageous in locking small objects(such as flag sticks) from background targets, like trees or bushes,and...
  • Page 3 Measuring range of speed 0-300KM/h Magnification Eye piece size 16mm Exit pupil diameter 3.8mm Measurement deviation ±1Y Velocity measurement precision ±5KM/h Operating temperatures -10℃-50℃ Battery CR2-3V - 3 -...
  • Page 4 APPEARANCE: Power /Transmitting Key Mode Button “M”/“Y” Switching (long press the Mode Button ) “KM/h”and “M/s”Switching (long press the Molder Button) Rotary Focusing laser Transmitting Objective laser Receiving Objective Sling connection Hole Prevent slippery Leather Battery compartments - 4 -...
  • Page 5 ACCESSORIES: - 5 -...
  • Page 6: Lcd Display

    LCD DISPLAY: 1. “Range” : Range finder mode 2. “ +Scan” : Flagpole lock mode / Golf mode 3. “Fog” : Fog mode 4. “speed” : Speed measurement mode 5. “ ” : Low battery indication 6. “ ” : Aiming indication “...
  • Page 7 OPERATION INSTRUCTIONS: Start The range finder has two buttons: the power button and the mode button “M”. Press power button shortly to turn on. The LCD will display as shown in the below figure. Adjust the focus The range finder is designed with an adjustable eyepiece(dioptre). By adjusting the focusing dioptre within a -5 to +5 range, users with far sighted vision can use laser range finder without glasses.
  • Page 8 While in velocity measurement mode, the unit of the measured value needs to be converted separately. ◆“ Ranging ” mode (1)“Ranging” screen:. (2)Function Principle: - 8 -...
  • Page 9: Scan Mode

    ◆“Scan” mode (1)“scan” screen: In “ranging ” mode, long press key to activate the scan mode. (2) Function Principle: - 9 -...
  • Page 10 ◆“Flagpole lock” mode (1)“Flagpole lock” screen: (2)Function Principle: In the flagpole scan mode, the point D may be isolated from a number of points in the background and keep only the distance d1 to the point. So as to achieve the automatic locking flagpole distance.
  • Page 11 ◆“Fog” mode (1)Fog screen: (2) Function Principle: In a short distance the microparticles in the fog will reflect the laser, so in fog days the product will not be able to measure distant targets. Filter out the incorrect distance(d1=30m) caused by the microparticles in the fog, thus ensuring the long-distance measurement range volume.
  • Page 12: "Speed" Mode

    ◆“Speed” mode (1)“speed” screen: (2) Function Principle: For moving objects, ranging twice. Two distance difference,divided by the time interval, the speed of moving objects can be obtained. - 12 -...
  • Page 13 Velocimetry method: (3) In scan mode, the laser will emit continuously, each measured distance will be displayed one by one. 4.Low voltage alarm When the battery voltage is too low, the low pattern will be shown to remind to replace the battery. - 13 -...
  • Page 14 NOTICE: ● The measuring range of the rangefinder could be influenced by the nature of the target, the speed of laser, tilted angle of the target and the visiblity of the weather. Generally speaking, the measuring range is better when there is a smooth surface, bright color, big area of targets, and a bigger angle between the laser and the target.
  • Page 15 ● If there is a problem with the device, send it to a professional department, and never disassemble it by yourselves. ● Never transmit the laser towards sun or strong light, so as to prevent the photosensitive element from damages. CONTACT US Email : service@aofar.com URL : www.aofar.com Facebook : Aofar Us - 15 -...
