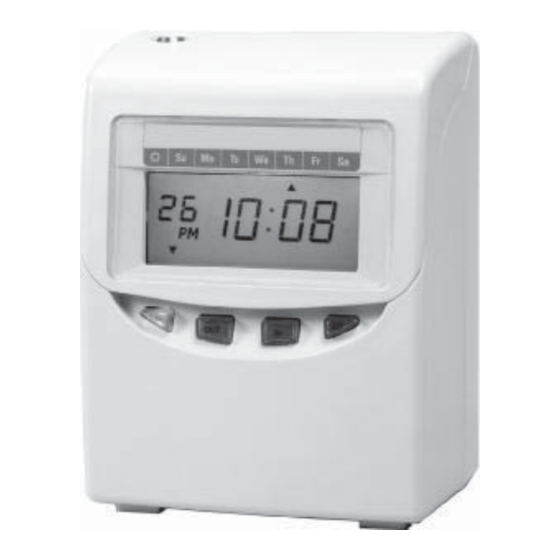

Compumatic XL1000 Quick Setup Manual

Compumatic XL1000 Quick Setup Guide
Attention: Do not punch any cards prior to programming the time clock. If cards have been punched see
last section titled Resetting Factory

Key Definitions:

Function Scrolls through programming modes
+ Increases value flashing on display
- Decreases value flashing on screen
Enter Saves value selected.
Remove cover of clock using key provided. Clock is now in programming mode.

Program 1: Time

Three items showing:
(seconds) (hour) (minute)
Seconds will be counting, the first 2 large digits (Hour) will be flashing. Using + or – keys select correct
hour, press Enter to save value. Minutes will now flash, select correct minute, press Enter, screen will go
blank. Press Function key for next program.

Program 2: Date

Three items showing:
(year) (month) (date)
Year will be flashing, if correct press Enter, if not use + or – to select year, press Enter. Month will now
flash, select correct month, press Enter. Repeat for date. Screen will go blank. Press Function for next
program.

Program 3: Time System

01 = 12hr "am/pm" 02 = 24hr "military time" Example 2:00pm = 14:00
Display will show 01 or 02. Select desired format using + or -, press Enter, screen will go blank. Press
Function key for next program.

Program 4: Print Format

Three items showing:
(type) (pay period) (pay ending)
Employee Type: SHOULD BE SET TO 01
Employee Type will be flashing. Set to 01, press Enter, Pay Period will now be flashing.
Pay Period: 01 = Monthly 02 = Weekly 03 = Bi-weekly
Select desired Pay Period, press Enter, Day Ending will now be flashing. See instructions below to
choose the correct day ending value.
Day Ending: Defines the last day of the pay period. If your pay period is monthly, set this to 31. If your pay
period is weekly or bi-weekly, refer to the instructions below.
Defaults.
