Summary of Contents for MAXHUB UC BM35

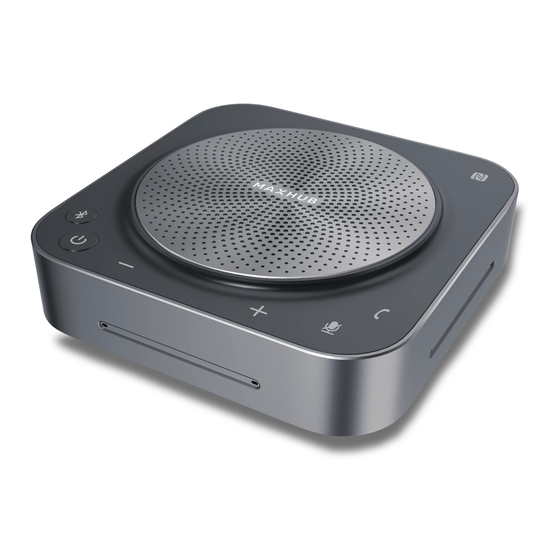

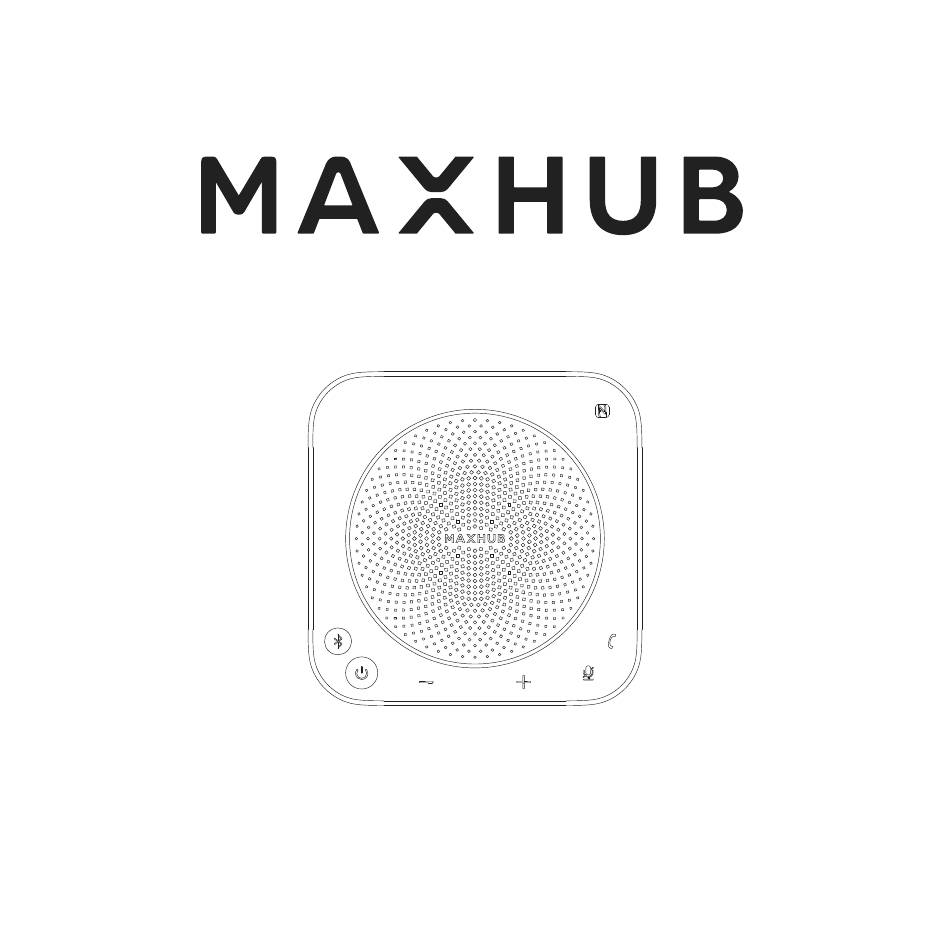

- Page 1 Speakerphone User Manual Note: All the pictures in this manual are for reference only, please refer to the actual product.
-
Page 2: Table Of Contents
Contents 1. Important Information................ 2. Safety Warnings and Precautions............. 3. Statement..................4. Product Appearance................. 5. Connection modes................6. Instructions..................7. Common faults and troubleshooting..........8. FCC....................9. Key Specifications................ -
Page 3: Important Information
1. Important Information This manual contains the precautions and the product usage. Please read and understand all the instructions before using the device. The damage caused by failure to follow the instructions is not covered by the warranty. Please keep this manual properly. 2. - Page 4 ★ Be careful of short circuit or catching fire! 1> Before connecting this device to an electrical outlet, please make sure that the power supply voltage matches the voltage value printed on the back or bottom of the product. Never connect the product to an electrical outlet when the voltage is different.
- Page 5 ★ Children's health 1> This device and accessories may contain some small parts, please keep them out of the reach of children to avoid danger. ★ Care for the product! 1> Clean this device only with a piece of microfiber cleaning cloth. ★...
-
Page 6: Statement
otherwise the battery will not be able to continue to be charged and used if it is not charged for a long time. 3.Statement 1> Intellectual property right statement: The hardware design and software of this product are covered by the patents. Anyone who reproduces this product or the content of the instruction without the authorization of the Company shall assume legal liabilities. -
Page 7: Product Appearance
4. Product Appearance Microphone (8 array microphone) USB Type-C port Answer/hang up button Bluetooth button Turn on/off Power button microphone button Volume up button Volume down button... -
Page 8: Connection Modes
5. Connection modes ★ Support for multi-device connections USB cable connection Wireless connection Wireless connection Bluetooth Bluetooth... - Page 9 Support USB, dual Bluetooth multi-channel data fusion, can realize three connection methods to work at the same time, so that it can support simultaneous access to multiple parties for conferences; ☆ Method 1: Connect the computer/Interactive Intelligent Panel (Windows or Mac) to the device through a USB cable; ☆...
- Page 10 device (the USB Dongle is bound to unique equipment); ② If you need to re-bind the new Speakerphone with the USB Dongle, control the distance between the USB Dongle and the Speakerphone within 3 meters. When the Speakerphone is in the Bluetooth disconnect- ed state, long press the Bluetooth button for 9s to enter the binding.
- Page 11 ★ Support for a dual-device wireless cascade Note: For device cascading operation, see Bluetooth status/settings. ★Support "NFC" to quickly connect this device ① Search for the NFC function in the system settings of the mobile phone and enable it; ② Align the NFC sensing area of the mobile phone with the NFC tag of the device and touch it;...
-
Page 12: Instructions
The following picture shows the location of the mobile phone NFC tag 6. Instructions ★ Turn on/off the device Press and hold the power button for 2 seconds to turn it on or off. ★ Answer/hang up calls (only available via Bluetooth connection to mobile phone or PC running Microsoft Teams) (1) When there is an incoming call, press the“... - Page 13 ★ Turn on/off microphone Short press the microphone mute button to turn the microphone on or off, red means the microphone is off, and white means the microphone is on. ★ Volume adjustment Press the volume "+" and volume "-" buttons to increase or decrease the volume accordingly.
- Page 14 2 minutes after Bluetooth 1 is turned on; (3) When Bluetooth 1 is connected, long press the Bluetooth button to disconnect the current Bluetooth connection. ★ Upgrade maintenance Visit https://www.maxhub.com/downloadcenter to download audio and video product management software for upgrade maintenance and configuration management.
- Page 15 ★ Bluetooth status/Setting Status Operation Description Enter re-pairing mode Long press the Pairing: Bluetooth white light flashes； Dongle is not connected. Bluetooth button for 9s. Pairing successful: Dongle blue light is always on. Long press the Turn off Bluetooth 1, Bluetooth 1 not connected.
-
Page 16: Common Faults And Troubleshooting
7.Common faults and troubleshooting The following table contains common faults and their solutions. Please read it carefully. Fault Possible Cause Solution Unable to turn on Low or no electricity. Connect the adapter to charge. the device. Quick start and Insufficient battery capacity. Connect the adapter to charge. -
Page 17: Fcc
8.FCC Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 18 ・ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ・ Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
-
Page 19: Key Specifications
9.Key Specifications Frequency band(s): 2402-2480MHz(BT) Maximum power transmitted: 13dBm... - Page 20 Speakerphone...
