Universal EXPLORE HOME U011B/C/F624-625 Instruction Sheet

U011B/C/F624-625
Thank you for purchasing this quality product. Before beginning, please check the packing material carefully for small parts which may
have come loose inside the carton during shipping. Please do not discard any packing material until all parts have been located. If any
parts are missing, please contact your dealer for prompt replacement.
Caution: (1) These parts are cumbersome and heavy. This product can best be assembled with the assistance of one or more persons
in order to prevent personal injury and to ensure parts are not damaged during the assembly process. If dirty, clean finished parts with
mild dishwashing liquid and water solution applied on damp cloth. Cloth should not be excessively wet. Polish finish with soft cloth and
an industry recognized furniture polish.
(2) To prevent damage to your floor or carpet, please check the bottom of each piece of furniture for stain residue and
rough surfaces and also check for staples or nails left after removing the packaging material. The manufacturer will not be held
responsible if preventative steps are not taken prior to installation.
During normal use every day, screws, bolts, nuts and wooden plugs may loosen up. They should be periodically inspected and re-
tightened to prevent damage to the furniture and (or) personal property or cause injury. Always check to be sure all hardware on this
list and the below mentioned components are attached to the furniture properly and kept tightened.
Parts & Hardware List:
PARTS LIST
A UPHOLSTERY SEAT CUSHION WITH WOOD FRAME
B CHAIR BACK FARME
C LEG
D LEFT ARM
E RIGHT ARM
INSTRUCTION SHEET
QTY
1 PC #1
1 PC #2
2 PCS #3
1 PC #4
1 PC #5
#6
#7
A
B #1
#4
#2
Step 1
D
B
#6

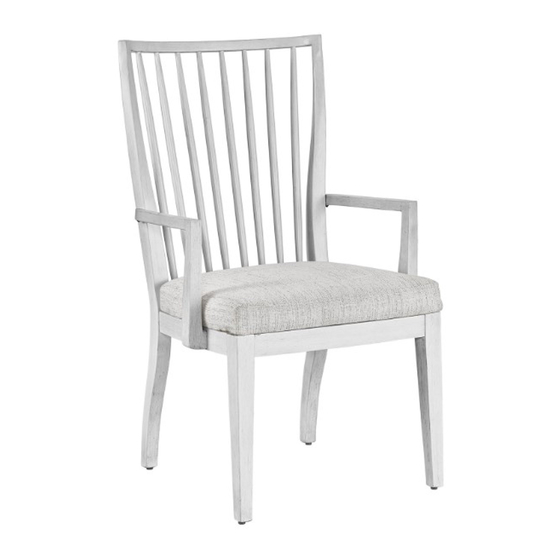

BOWEN SIDE CHAIR/BOWEN ARM CHAIR
HARDWARE LIST
3'' L BOLT + LOCK WASHER + FLAT WASHER ----- 5/16" Dia
1-1/2'' L BOLT + LOCK WASHER + FLAT WASHER ----- 5/16" Dia
2-1/2'' L BOLT + LOCK WASHER + FLAT WASHER ----- 5/16" Dia
12 mm OPEN WRENCH
1-1/2'' L ALLEN BOLT + LOCK WASHER + FLAT WASHER ----- 1/4" Dia
1-1/4" L ALLEN BOLT + LOCK WASHER + FLAT WASHER ----- 1/4" Dia
4mm ALLEN WRENCH
A
B
C
E
A
C
#7 #5
C
#7
Step 3
C
#4
#3
Step 2
QTY
4 SETS
2 SET
4 SETS
1 PC
2 SETS
2 SETS
1 PC
