Millenia Media HV-32P User Manual

Millennia
Music & Media Systems
HV-32P User Guide
revised 030322js

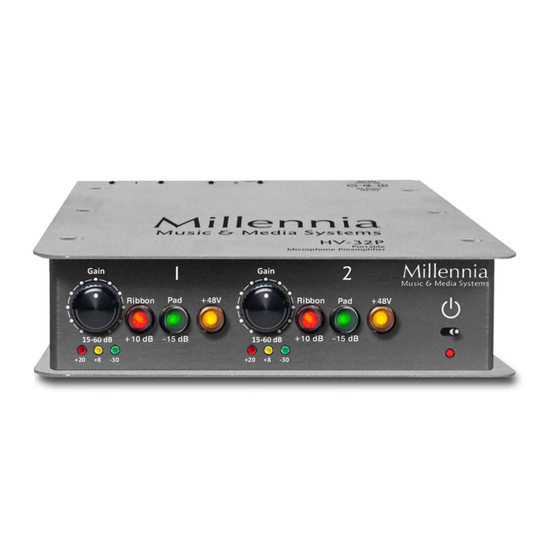

Gain is a continuously variable gain
control. It has a high gain jump near full
clockwise for low level signals.
Signal LEDs indicate signal level at
-30dBu (green), +8dBu (yellow) and
+20dBu (red).
Ribbon-Dyn Mic DC couples the mic to
the gain stage and also provides an
additional 10dB of gain. Use with any
Ribbon or Dynamic mic (like an SM-57).
A mic requiring phantom power will not
work in this mode.
Pad – Attenuates the input signal after
the gain stage by about 14dB.
Millennia Media, SPC
http://www.mil-media.com
Phantom Power – turns the +48V
phantom power supply on.
Avoid connecting or disconnecting
mics with the +48V on (hot
patching). This can damage the
mic, preamp and make some very
loud pops that can damage your
monitoring system and ears.
External Power Supply – The HV-35P is
powered by a 12V DC, 5 amp, universal
voltage (100 to 240 VAC) line lump power
supply provided with the unit.
It can also be powered by Li-Ion battery
packs that produce 14.8V DC and
automatically cut off at 12V DC. If it
doesn't have a cut-off circuit, it may
damage the unit.
6411 Capitol Avenue
Rack Tray Mounting – Maximum Mid-
Atlantic screw length is 3/16" (flathead 6-
32). If you use a longer screw it will
damage the circuit board.

FCC Notice Information for the User

This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated in
a commercial environment. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with this instruction manual,
may cause harmful interference to radio
communications. Operation of this equipment
in a residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his or
her own expense.
Water, Moisture, and Spillage –
attempt to use the HV-32P in, near, or around
water or in unusually moist environments, such
as near a sink or swimming pool. Prevent
liquids or any other materials or objects from
spilling or falling into the HV-32P unit.
Grounding – For your safety, it is extremely
important that the grounding pin of the 3-wire
power cable (included with 110 Volt units) be
inserted into a grounding type 3-pin power
outlet. If you are unable to insert the plug into
an existing outlet, contact an electrician to
install a properly grounded 3-pin power outlet,
preferably that with OFI / CFI protection, if
available.
Diamond Springs, CA 95619
(530) 647-0750
Do not
