Weight Limit:500 Lb / 227 Kg
KT - 2021/6/12
2021 Dorel Home Products All Rights Reserved
4027249 (Brown Faux Leather) 4027149 (White Faux Leather)
4027009 (Black Faux Leather) 4582339 (Camel Faux Leather)
Thank you for purchasing from DHP!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4582439 (Gray Faux Leather)

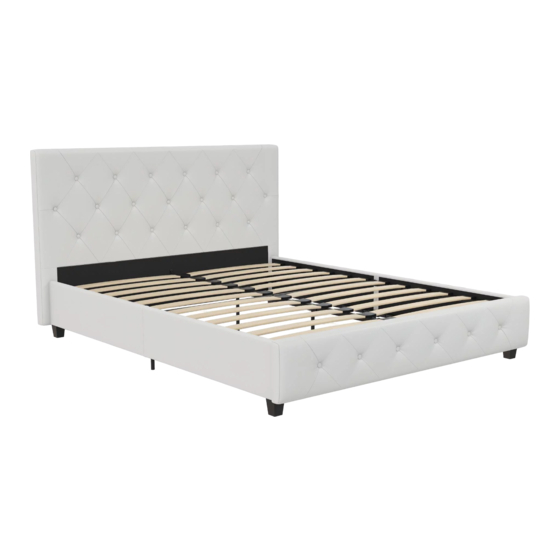

Upholstered Bed
Queen
Lot Number
(TAKEN FROM CARTON)
B34402724900-KT
1
Advertisement
Table of Contents
Related Manuals for DHP 4027249
Summary of Contents for DHP 4027249

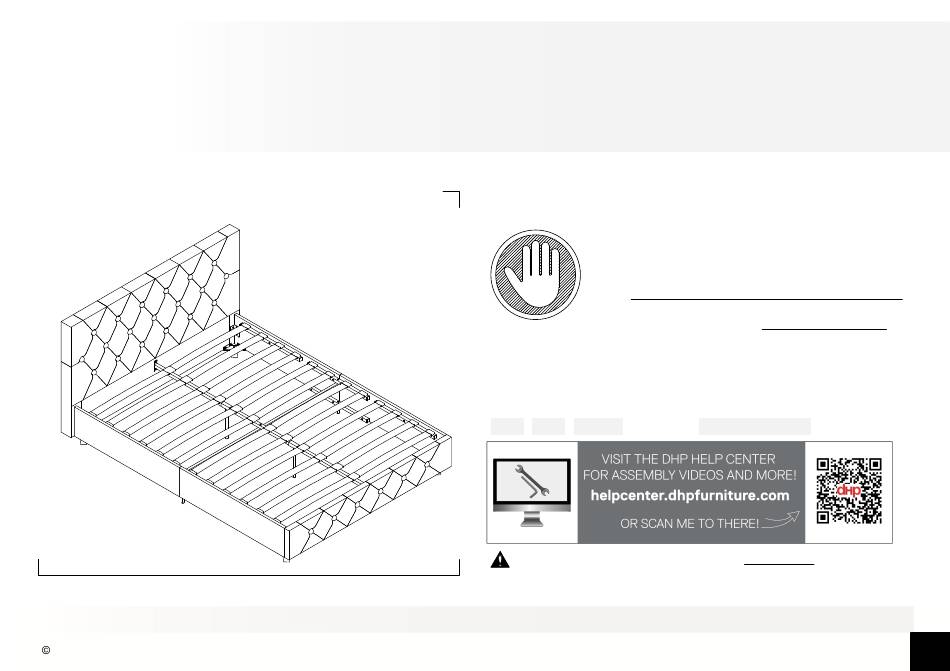

- Page 1 4027249 (Brown Faux Leather) 4027149 (White Faux Leather) 4027009 (Black Faux Leather) 4582339 (Camel Faux Leather) 4582439 (Gray Faux Leather) Upholstered Bed Queen Thank you for purchasing from DHP! Weight Limit:500 Lb / 227 Kg Questions, concerns, missing parts? CONTACT OUR CUSTOMER SERVICE DEPARTMENT BEFORE RETURNING PRODUCT TO THE RETAILER.
-
Page 2: Limited 1-Year Warranty
Limited 1 year Warranty Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product. - Page 3 PARTS...
-
Page 4: Parts List
Side Rail Side Rail Center Rail Center Rail 2 PCS 4 PCS 2 PCS 2 PCS 1 PC PART NUMBERS 4027249 4027149 4027009 4582339 4582439 PART Each part has a unique part number. (Brown Faux (White Faux (Black Faux (Camel Faux... - Page 5 Bracket Double Slat Cap Bracket Single Slat Cap 2 PCS 12 PCS 2 PCS 24 PCS 4 PCS PART NUMBERS 4027249 4027149 4027009 4582339 4582439 PART Each part has a unique part number. (Brown Faux (White Faux (Black Faux (Camel Faux...
-
Page 6: Hardware List
1 PC 1 PC Hardware Pack Please do not completely tighten all the hardware, until the entire assembly is complete, unless 4027249 (Brown Faux Leather) otherwise indicated in the step-by-step instructions. 4027149 (White Faux Leather) 4027009 (Black Faux Leather) HP#:T4107119-00... - Page 7 Step 1 The slat holes on part F should be facing upward. Attach F and H to C and D with Repeat the same step for remaining parts C, D, F and H. X 16...
- Page 8 Step 2 The slat holes on part G should be facing upward. Attach G x 2 to previous subassembly C and D with Repeat the same step for remaining parts G. X 12...
- Page 9 Step 3 Attach S to D and T to C with . Repeat the same step for the other subassembly C and D. X 12...
- Page 10 Step 4 Stick A1 to the back of A with Velcro as illustrated.
- Page 11 Step 5 Do not completely tighten the BOLTS, leave half of the Screw into A and into B, leave half thread exposed. of the thread exposed.
- Page 12 Step 6 Hang sub-assembly C and D on A and B as illustrated, don't completely tighten the bolts until STEP 10 is complete.
- Page 13 Step 7 Attach N to Z with Repeat the same step for remaining parts N and Z.
- Page 14 Step 8 8.1 Attach N x 4 to A, B, C and D with 8.2 Attach L x 2 to H x 2 with X 16...
- Page 15 Step 9 Insert I x 2 and J into M x 2, then fix them with Slat holes on part I and J should be facing upward.
- Page 16 Step 10 Attach subassembly from previous STEP to A and B with , then properly tighten all the bolts.
- Page 17 Step 11 Attach K to F x 2 and J with...
- Page 18 Step 12 12.1 12.1 Insert one side of both O1 into X as indicated 12.2 Press X into G / F on each side. 12.3 Insert the other free end of both slats O1 into Y where both O1 meet, then press Y into I / J.
-
Page 19: Helpful Hints
CAUTION: This unit is intended for use only with the products and/or maximum Helpful Hints weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Move your new furniture carefully, with two people lifting and carrying the unit to its new location. - Page 20 Informaci n sobre la garant a Lea antes de comenzar a ensamblar DHP garantiza que este producto est libre de defectos de material y mano de Llame a nuestro n mero gratuito si necesita asistencia. obra y se compromete a remediar cualquier defecto de este tipo. Esta garant a Trabaje en un rea espaciosa y cerca de donde su producto ser utilizado, cubre 1 a o a partir de la fecha de compra original.
- Page 21 Tambi n confirme que ha recibido todos los componentes necesarios para el ensamblaje al compararlos con la tabla de piezas indicadas en la secci n en ingl s. PART NUMBERS 4027249 4027149 4027009 4582339 4582439...
- Page 22 Instrucciones Paso 1 Una la parte F y H con C y D con los . Repita el paso para las otras partes C, D, F Limites de peso - Cama : 500 Lb / 227 Kg y H. Paso 2 Consejos tiles Una la parte G x 2 con C y D con los .
-
Page 23: Informations Sur La Garantie
Merci d'avoir achet un produit DHP! Informations sur la garantie Avant de commencer l'assemblage DHP garantit que ce produit est exempt de tout vice de mat riaux et de fabrication Si vous avez besoin d'aide, appelez notre service la client le sans frais. - Page 24 (illustrations disponibles dans la section en anglais). LISTE DES PI CES 4027249 4027149 4027009 4582339 4582439 TIQUETTE...
-
Page 25: Conseils Utiles
Instructions tape 1 Attacher F et H C et D avec . R p tez la m me tape pour les autres C, D, F et Limite de Poids - Lit : 500 Lb / 227 Kg tape 2 Conseils utiles Attacher G C et D avec .
