Assembly Instructions
Round-Top Stand-Up
Model 2
These written instructions, as
provided with your purchase, will
always be the latest iteration of the
instructions and match the coop
shipped and provide the most
complete up-to-date information.
We depend on feedback about our
instructions to implement changes
to future versions. Please know
that we value your input to that
ongoing process and endeavor to
produce instructions that are as
effective as possible for a wide
variety of customers.
Assembly
Overview...
Use your phones camera to read QR Code.
Video overview of assembly.
Copyright ® Roost & Root all rights reserved. This document is intellectual property of Roost & Root and is being provided to you for your own personal limited use as a
paying customer for the purpose of assembling your coop. Roost & Root claims all available Federal protection for the name Round-Top Coop ™ , our protected designs and
V1
Fall 2022
trade dress as is allowed by any and all Federal intellectual property protection laws. We invest heavily in your coop and work very hard to do a good job and it is only fair that
our workers benefit for their hard work.
Coop™
Help Text-line: 512-596-5200
EMAIL: support@roostandroot.com re: Assembly Support
VOICE: 877-741-2667 | Assembly Support ext 3

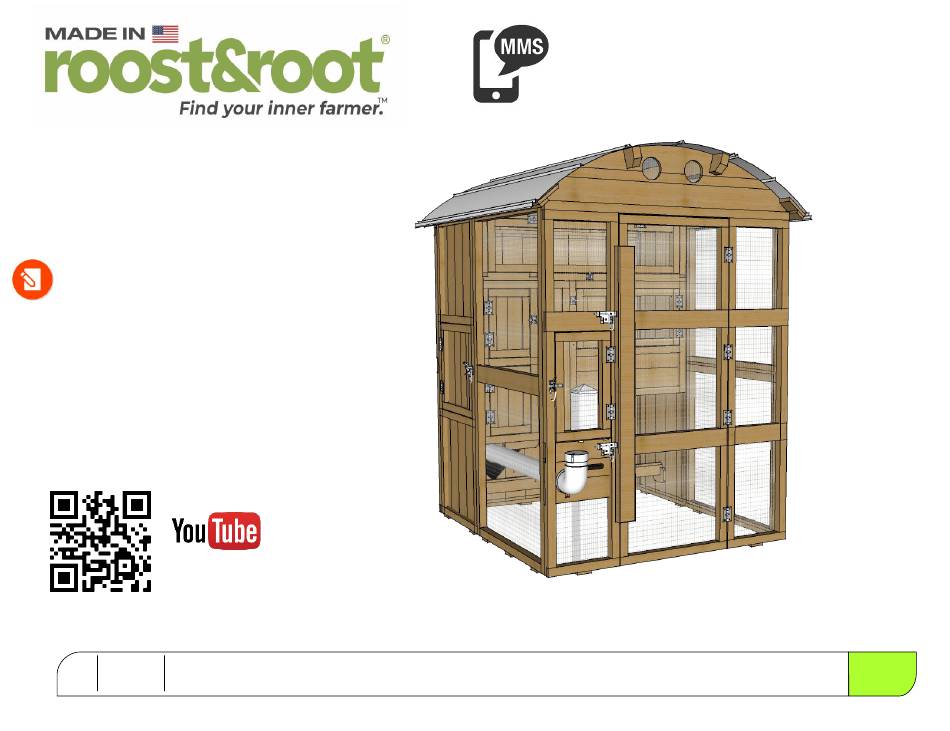

Shown With Optional Waterer & Feeder
Advertisement
Related Manuals for roost&root Round-Top Stand-Up Coop 2
Summary of Contents for roost&root Round-Top Stand-Up Coop 2
- Page 1 Help Text-line: 512-596-5200 EMAIL: support@roostandroot.com re: Assembly Support VOICE: 877-741-2667 | Assembly Support ext 3 Assembly Instructions Round-Top Stand-Up Coop™ Model 2 These written instructions, as provided with your purchase, will always be the latest iteration of the instructions and match the coop shipped and provide the most complete up-to-date information.
- Page 2 Roof Vents Front Left "Roost" Closed Area Eaves Where Birds Sleep "Egg Box" Optional Feeder Optional Waterer Back Right (We recommend having the back side of your coop facing North) "Run" Open Wired Area Turn Out Door...
- Page 3 Sorry... a little reading ;-) Understanding these concepts / conventions will help guide you through the instructions. Mating edges of parts to be flush and tight (when called for) will keep measurements in tolerance as the coop grows in size. CRITICAL: Having a flat area is required for the coop to assemble properly and operate properly.
- Page 4 Written Parts List "B" Parts - Roost Tools Provided B1 Roost Bars (4 identical) T25 & T20 Torx Bits Phillips Bit "A" Parts - Exterior B2 Roost Door Panel (door) Magnetic Bit Holder B4 Roost Door Storm Panel (translucent panel) 1/8"...
-
Page 5: Please Be Careful
Please Be Careful Coop is designed to be assembled by two people of ordinary skill. Some of the steps will need to be performed from a ladder. If you are not comfortable and experienced standing on and working from a ladder you may want to get some help for those steps. - Page 6 3" T25 Screw = Direction Phliips Bit T25 Torx Bit Phillips Screw Of Screws Color of screws may vary. Bit Holder :-) Here we go ! Find and The first step is to assemble the two back panels and two remove back side panels as illustrated.
-
Page 7: Left Side
3" T25 Screw Wire Side Faces Inward Color of screws may vary. = Direction Of Screws Front Keep faces flush Gravity Gate Latch Make Bottoms Flush Back Left Side Looking like something... 2.1 Left A1 Side Panel: The left and the right wired panels are the same. Using 6 T25 screws, attach the front A1 panel to the back section A5 panel made in step 1. Start at the bottom making sure the bottom edge is flush and work your way up keeping the faces flush by pulling in or out as needed. - Page 8 Fig 3 3" T25 Screw Wood Up Window Bolt Color of screws may vary. C1 Flush Here = Direction Of Screws Open Door To Access Screw Holes All Edges Flush Assembled As A Unit Then Fitted Into Place In Next Step... Wire Down Edges Flush Floor Aligned...
- Page 9 Fig 4A Hang Assembly On Boards Inside Panels A5, A6 Fig 4 T-20 Screw (color may vary) Egg Box Assembly From Step 3 After this step, the coop will become very difficult for even two people to move so you should make sure its positioned where you want and on level high ground.
- Page 10 D4 Valance D3 Valence Holder Fig 5 D2 Door A21 Arc A21 Arc Flush 26-1/2" Fig 5A Stake :-) Find your step ladder again! 5.1 Attach Left & Right Run Fronts: Using T25 screws into pre-drilled holes, attach left side A7 and A8 panels as illustrated in Fig 5 making sure to keep edges and bottom of panels flush.
- Page 11 Fig 6 Roof T-20 Screw Screw (color may vary) :-) Be careful on that ladder ! Make Sure Your Coop Is Square & Level As Believe It Or Not :-) The Roof Locks It All In Place... 6.1 Roof Supports: Using your hand, tap into place the two A22 Roof Supports aligning the notches of the supports with those in the A21 Arcs.
- Page 12 Sliding Gate Latch Pan Head Screw An extra hook and eye set is provided if you want to install inside of coop. Fig 7 Flat Head A9 Door Phillips Screw Door handle serves as a stiffener, a :-) Like, you're pretty much done! handle and a door stop.
- Page 13 Fig 8 Cut-Away View of Roost B5 Day Roost Bar Alternate Hook Location Hook Pre-Drilled Hole For Eye H3 Hook & Eye :-) Need that helper again! 8.1 Install Roost Bars: Roost panels are hidden so that you can see locations of roost bars. Using a helper behind the coop, position B1 Roost Bars in locations Fig 8 and shown in...
- Page 14 Fig 9 F2 Waterer Bracket (if purchased) Installs Up Against Wall Using 2 T25 Screws Through Holes In Bottom of the Bracket and Into Door Frame. Fig 9A T-20 Screw (color may vary) :-) Chow time! 9.1 Install Waterer Bracket: If you purchased the optional waterer, install the F2 Bracket in the position as illustrated in Fig 9...
-
Page 15: Ground Level
Some things to know about using your new Round-Top Stand-Up™ Chicken Coop Original Model 1 Coop You will need to put some sort of a liner in the bottom of the egg boxes. We recommend a cut up illustrated. Model 2 is same. door mat that can be washed.
