Outdoor unit mounting Instructions.

Install the condensate drain if required. The outdoor unit will condense water when the
system is in heating mode. Consult local regulations for drainage connections.
Mount the unit on an approved wall mounting bracket and secure or mount the unit on a
secure waterproof surface and secure.

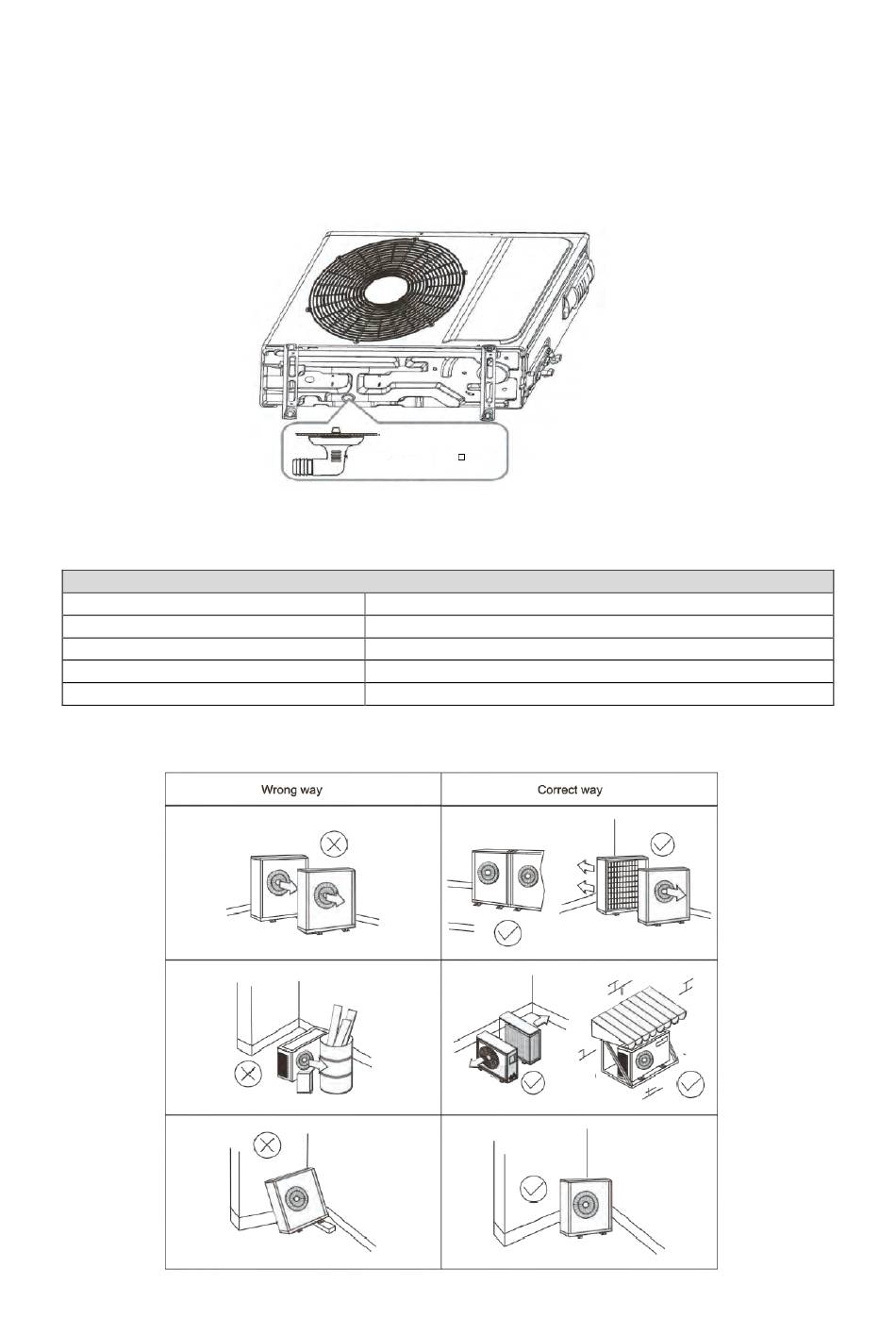

Outdoor unit required clearances.

Outdoor unit Clearances
Above
Left
Right
Below
Behind
Select a location that allows for sufficient air flow, that is free of obstructions.
Revision 25 July 2021
500 mm
300 mm
60 mm
200 mm
300 mm
