- Page 1 FeelTech FY2100S User’s Manual FY21xxS series Direct Digital Synthesis (DDS) Signal Generator User’s Manual Rev2.2 2014-3-1...
- Page 2 FeelTech FY2100S User’s Manual Thank you for purchasing our products, please carefully read the contents of the use’s manual before use, to ensure the normal use of the instrument. Introduction of the instrument This manual applies to each mode of FY21xxS series Direct Digital Synthesis (DDS) Signal Generator.
- Page 3 FeelTech FY2100S User’s Manual Main technology indexes Signal Output function ◆ Output waveforms Sine wave, Square wave (Duty cycle adjustable) and Triangle wave (include sawtooth wave) Output amplitude ≥9Vp-p (signal output, no load)（MAX） ≤20mVp-p (MIN) Output impedance 51Ω±10%(signal output) DC offset ±2.5V(no load)

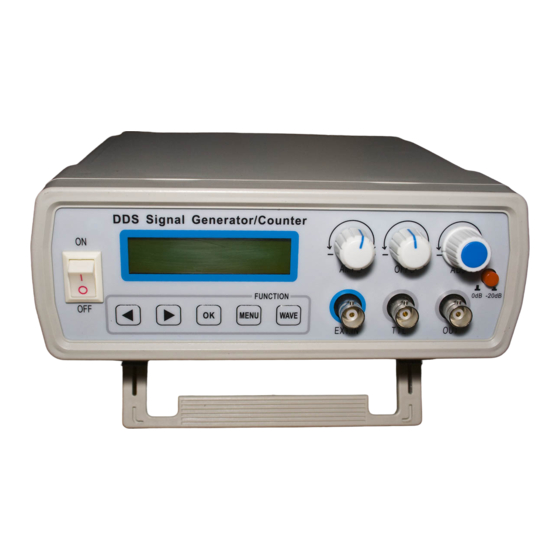

- Page 4 FeelTech FY2100S User’s Manual The function introduction of front panel Operating Guide 1. Press the button【Menu】 to switch between Frequency adjusting and Function adjusting. The detailed condition (frequency adjusting or function adjusting) displayed after “*” 2. As frequency adjusting, pressing the button 【】 or 【】 to adjust position of cursor, and pressing the 【OK】...
- Page 5 FeelTech FY2100S User’s Manual Main output of waveform is SINE. Main output of waveform if SQUR. Main output of waveform is TRGL. 5. The “DUTY” means duty cycle, SQUR adjusted from 1% to 99%, while TRGL adjusted among 50% (standard TRGL), above 50% and below 50% (both are different saw tooth waves).
- Page 6 FeelTech FY2100S User’s Manual storage is over. If the current value is saved to “M00”, and the changed value will be called in next time, to FY21xxS series, the start frequency of sweep function is defined at M01, the end frequency is defined at M02. If the sweep function need to be run, the start and end frequency must to be set correctly.
- Page 7 FeelTech FY2100S User’s Manual ● Safety Notes 1、 Before using this instrument, please check if the power supply is normal, to ensure the normal use and personal safety. 2、This instrument must be used in the technical index range. 3、Please do not change the instrument circuit arbitrarily, so as to avoid damaging equipment or endangering the safety.
