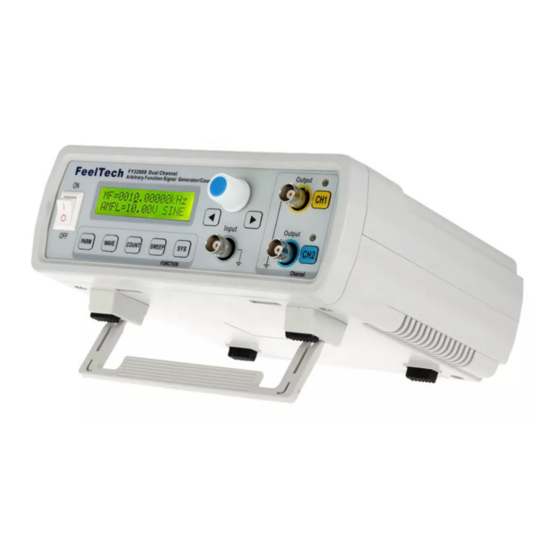

FeelTech FY3200S Series User Manual

Fully numerical control dual channel function/arbitrary waveform generator
Hide thumbs Also See for FY3200S Series:

Advertisement

Table of Contents

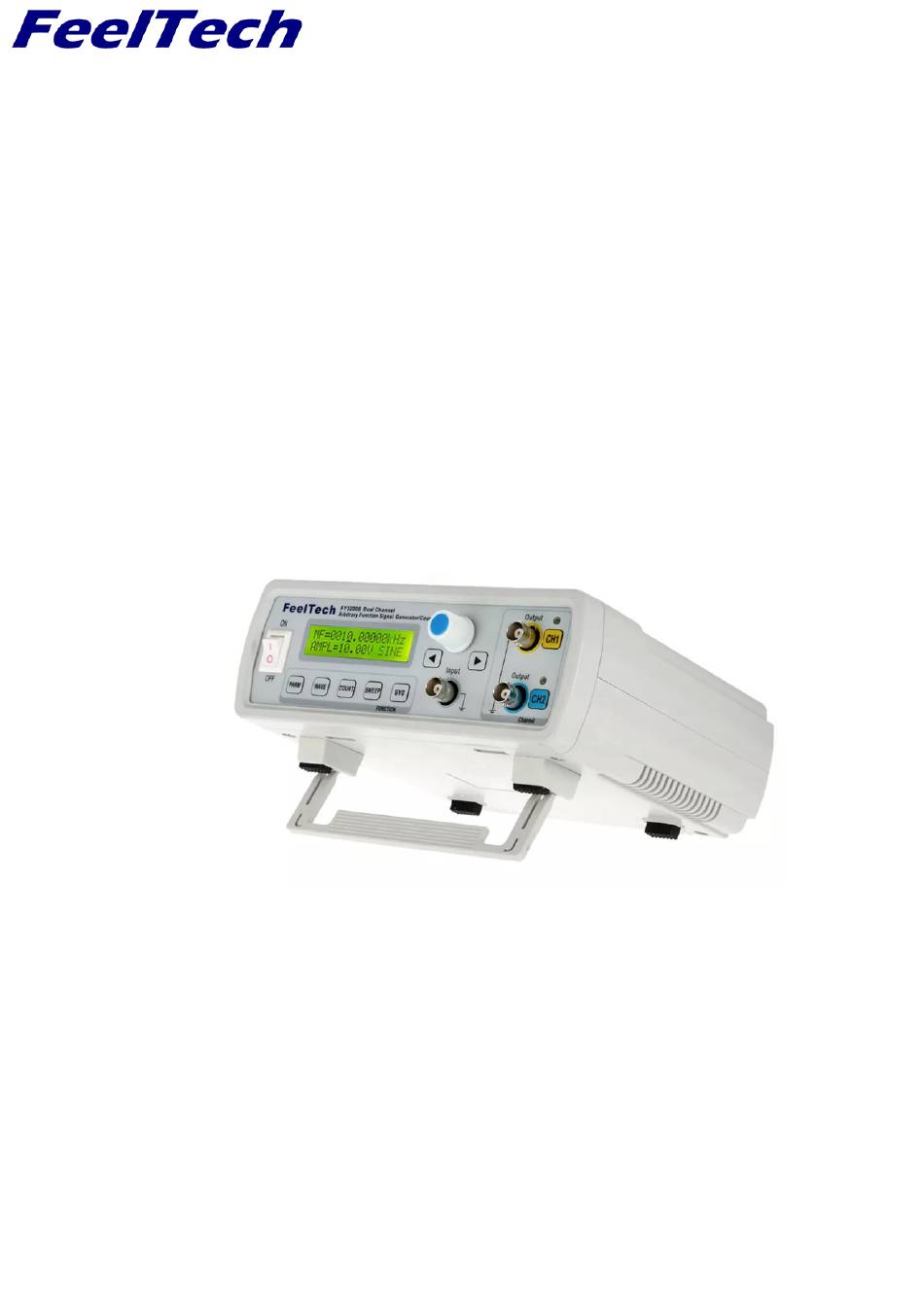

FY3200S Series Fully Numerical
Control Dual Channel Function/Arbitrary
Waveform Generator
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FY3200S Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FeelTech FY3200S Series

Summary of Contents for FeelTech FY3200S Series

  • Page 1 FY3200S Series Fully Numerical Control Dual Channel Function/Arbitrary Waveform Generator User’s Manual...
  • Page 2 FeelTech ●Introduction of the instrument This manual applies to each mode of FY3200S series DDS Function Signal Generator. In the series, the last two digits “xx” represent the upper limit frequency value (MHz) of Sine Wave for each mode. For example, FY3225S，“25” means the upper limit frequency of Sine Wave is 25MHz.

  • Page 3: Button Introduction

    5. 【SYS】 button can be used to enter the interfaces of follow setting, save or load. 6. 【CH1】Main waveform confirmation, Output/Stop. 7. 【CH2】Subsidiary waveform confirmation, Output/Stop. 8. 【◄】Cursor move to left. 9. 【►】Cursor move to right. 10. 【OK】ADJ confirmation（move downward） FY3200S Series User’s Manual...
  • Page 4 【OK】button can change the unit of frequency displayed (Hz, kHz and MHz). Rotate the 【ADJ】knob to change the number displayed to change the frequency. MF=0021000.00Hz Frequency unit is Hz AMPL=05.00V SINE MF=0.02100000MHz Frequency unit is MHz AMPL=05.00V SINE FY3200S Series User’s Manual...
  • Page 5 Main output of waveform is DC wave. AMPL=05.00V MF=0021.00000kHz Main output of waveform is Lorentz Pulses. AMPL=05.00V PRE1 MF=0021.00000kHz Main output of waveform is Multitone. AMPL=05.00V PRE2 MF=0021.00000kHz Main output of waveform is Random Noise. AMPL=05.00V PRE3 FY3200S Series User’s Manual...
  • Page 6 Main output of waveform is Arbitrary wave 1. AMPL=05.00V ARB1 MF=0021.00000kHz Main output of waveform is Arbitrary wave 2. AMPL=05.00V ARB2 MF=0021.00000kHz Main output of waveform is Arbitrary wave 3. AMPL=05.00V ARB3 MF=0021.00000kHz Main output of waveform is Arbitrary wave 4. AMPL=05.00V ARB4 FY3200S Series User’s Manual...
  • Page 7 Subsidiary output of waveform is Random Noise. AMPL=05.00V PRE3 SF=0021.00000kHz Subsidiary output of waveform is AMPL=05.00V PRE4 electrocardiogram. SF=0021.00000kHz Subsidiary output of waveform is AMPL=05.00V PRE5 trapezoidal pulse. SF=0021.00000kHz Subsidiary output of waveform is Sinc pulse. AMPL=05.00V PRE6 FY3200S Series User’s Manual...
  • Page 8 In chosen main and subsidiary waveform interface, press 【PARM】 button to make the cursor point to the value of amplitude （AMPL=）. The value (Vpp) is peak value of the signal. Use【】and【】 buttons and 【ADJ】knob to change the value. As follows: MF=0021.00000kHz AMPL=05.00V TRGL FY3200S Series User’s Manual...
  • Page 9 【PARM】button to make the cursor point to the value of phase（Phase=）. Use【】and【】buttons and 【ADJ】knob to change the value of DC offset. The phase difference of main wave and subsidiary wave can be adjusted from 0º to 359º. As follows: SF=0021.00000kHz Phase=000º SQUR FY3200S Series User’s Manual...
  • Page 10 Press 【COUNT】button again to switch between frequency measurement and counting pulse. ExtF=21.000kHz (Measure=FREQ) *FUNC:EXT.TREQ  Press 【ADJ】button to reset the counter.  Rotate the 【ADJ】knob anticlockwise to pause (Doesn’t disturb counter).  Rotate the 【ADJ】knob clockwise to cancel the pause. CNTR=0 *FUNC:COUNGTER (Measure=COUNT) FY3200S Series User’s Manual...
  • Page 11 Terminal trigger source is INPUT , when a rising edge of the trigger signal “INPUT”, FSK output signal at a frequency of CH1, when the falling edge of the trigger signal “INPUT”, FSK output frequency signal corresponding to F2 FY3200S Series User’s Manual...
  • Page 12 In sweep interface, Press 【SWEEP】button again to switch between the interfaces of sweep begin and sweep time adjustment. The sweep time refers to the time length from fM1 (starting frequency) to fM2 (stopping frequency). The time can be adjusted from 1s to 99s. F=0021.00000kHz *FUNC:TIME=10S FY3200S Series User’s Manual...
  • Page 13 Following The duty cycle of CH2 will not follow CH1. DUTY CH1=CH2？ OK Following The duty cycle of CH2 will follow CH1.  Waveform follow setting: Rotate the【ADJ】 knob in follow mode setting interface to enter FY3200S Series User’s Manual...
  • Page 14 Follow setting information saving: Rotate the【ADJ】 knob in follow mode setting interface to  enter follow setting information saving interface. Press 【ADJ】button to set follow status. ( Next starting machine will affect follow status. Save configurati Following Save configurati Follow setting information saving complete. Following FY3200S Series User’s Manual...
  • Page 15 Rotate the【ADJ】knob to select the position（M0~M19）for loading. Press 【ADJ】button to confirm. “OK” will display in the top right for a short while which means loading complete. MF=0021.00000kHz *FUNC:LOAD=00 OK  If“Non”displays，it means no information in this position. Loading can’t be done. MF=0021.00000kHz *FUNC:LOAD=00 Non FY3200S Series User’s Manual...
  • Page 16 BEEP=ON” interface appears. The "BEEP=ON" buzzer sounds open, and the "BEEP=OFF" buzzer closes. The state can be changed by rotating the parameter adjusting knob, and the setting state can be saved by pressing the parameter adjusting knob downward. FY3200S Series User’s Manual...

  • Page 17: Technical Specification

    Sine, Square, Triangle (Ramp), Arbitrary, Sawtooth, Pulse, Noise, etc. Waveform Length 2048Points Sampling Rate 250MSa/s Vertical Resolution 12 Bits Harmonic ≥45dBc(<1MHz);≥40dBc(1MHz~20MHz); Suppression Sine Total Harmonic <0.8% (20Hz~20kHz,0dBm) Distortion Rise/Fall Time ≤20ns Square Overshoot ≤7.5% Duty Cycle 0.1%~99.9% Sawtooth Linearity ≥98% (0.01Hz~10kHz) FY3200S Series User’s Manual...

  • Page 18: Output Characteristics

    Only CH1 available Sweep Type Linear or Logarithm Sweep Objects Frequency Sweep Time 1S~999S/Step Sweep Range Starting position and Finishing position can be set arbitrarily. General Specifications Display Mode LCD1602 in English Save & Load Amount FY3200S Series User’s Manual...
  • Page 19 01 to20 (SAVE P_ON FREQ for default value) Type USB to Serial interface. Interface Communicati 9600bps ng Speed Voltage Power AC85V~AC260V Range Buzzer Can be turned on/off by setting. Environment Temp.：0~40℃ Humidity：﹤80% Dimension 200mm（Length）X190mm（Width）X90mm（Height） Weight Net Weight: 750g， Gross Weight: 900g FY3200S Series User’s Manual...

  • Page 20: Appendix A：safety Notes

    FY3200S-20M（20MHz, Dual-channel） Model FY3200S-24M（24MHz, Dual-channel） FY3200S-25M（25MHz, Dual-channel） Power Cable USB-B Data Cable Standard Accessories BNC-Clip Cable Resource CD (including the User’s Manual) BNC-BNC cable Options FYA2000/FPA1000 Series Amplifier Note: Options can be ordered from local FeelTech distributors. FY3200S Series User’s Manual...
