PARTS LIST/ LISTE DES PIÈCES/ LISTA DE PIEZAS
ITEM NO./ ARTICLE NO. / ARTICULO NO : DS-D419-006A

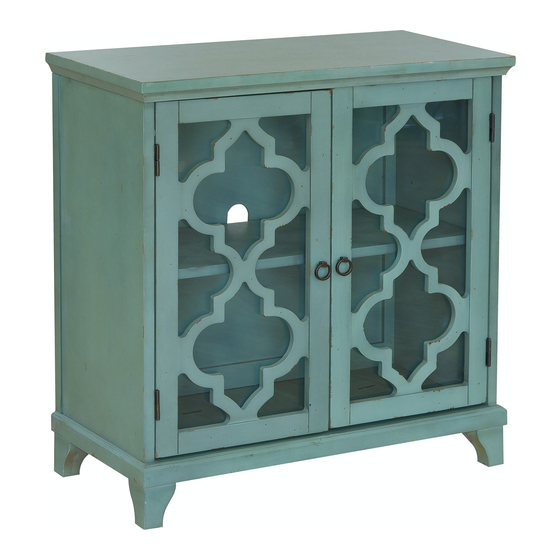

DESCRIPTION/ LA DESCRIPTION /DESCRIPCIÓN: BLUE KD TWO DOOR CHEST / KD DEUX PORTES COFFRE/PECHO DE DOS PUERTAS KD
Page 1 of 5
A
*
X1 Top panel
X1 Techo
X1 Le toit
B
*
X1 Left side panel
X1 Panel izquierdo
X1 Panneau gauche
C
*
X1 Right side panel
X1 Panel lateral derecho
X1 Panneau lateral droit
D
*
X1 Bottom panel
X1 Panncau inferieur
X1 Panel inferior
Residential Use only
E
*
X1 Back panel
X1 Placa posterior
X1 Fond de panier
F
*
X1 Adjustanle shelf
X1 Plateau regltable
X1 Estantc ajustable
G
*
X1 Right door
X1 Porte droite
X1 Derecho puerta
H
*
X1 Left door
X1 Porte droite
X1 Derecho puerta
Made in Vietnam / Fabriqué au Vietnam / Hecho en Vietnam
For further assembly information, please go to www.myfurnitureinstructions.com
1
*
X2 Knob
X2 Bouton
X2 Perilla
2
*
X4 Wood dowel ( 8x30mm)
X4 Goujons de bois ( 8x30mm)
X4 Tarugo de madera ( 8x30mm)
3
*
X4 Shelf support Ø6.5mm
X4 Soporte laminado Ø6.5mm
X4 Support en stratifies Ø6.5mm
4
*
X2 Handle screw Ø5/32"*15mm
X2 Tornillo de la manija Ø5/32"*15mm
X2 Vis de poignee Ø5/32"*15mm
* Replaceable Part
