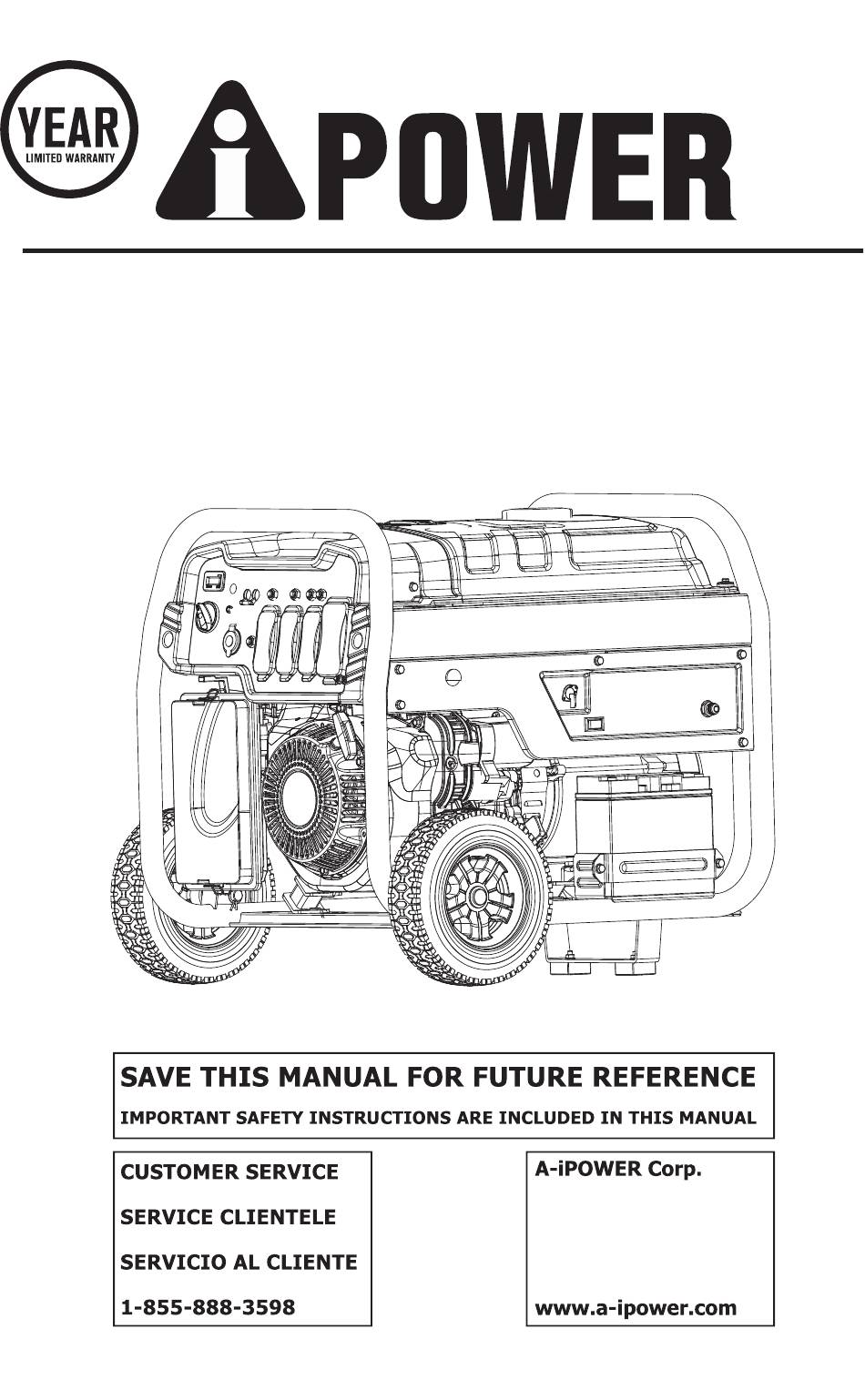

- Page 1 Generator Operator’s Manual SUA12000EDCO 10887 Commerce Way Unit A Fontana CA 92337...
- Page 2 SPECIFICATIONS Model SUA12000EDCO 60Hz Frequency 9000W (Gas) Rated power 8100W (LPG) 12000W (Gas) Max. power 9000W (LPG) 120V/240V AC Voltage Single Phase Fuel capacity 1.1L Oil capacity 8.5h Run time@100% load SC460L Engine model 459cc Displacement 16.0HP/3600rpm Max. output Recoil/E-start...
- Page 3 TABLE OF CONTENTS 19 For Gasoline 22 For LPG...
- Page 4 TABLE OF CONTENTS Operation Using Electric Power AC Application Stopping the Generator Stopping the Generator Oil Sensor Maintenance Transporting Storage Warranty...
- Page 5 INTRODUCTION Attention: Read through the complete manual prior to the initial use of your generator. Using the Operator’s manual The operating manual is an important part of your generator. It should be read thoroughly before initial use, and referred to often to make sure adequate safety and service concerns are being addressed.
- Page 6 SAFETY Save these Instructions Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a symbol and/or a safety message to alert you to hazards.
- Page 7 SAFETY...
- Page 8 SAFETY...
- Page 9 SAFETY...
- Page 10 SAFETY...
- Page 11 SAFETY...
- Page 12 SAFETY...
- Page 13 SAFETY WARNING Generator exhaust contains carbon monoxide, a poisonous gas that can kill you. You CANNOT smell or see this gas. • Use the generator outdoors, away from open windows, vents, or doors that could allow the carbon monoxide gas to come indoors.
- Page 14 SAFETY WARNING Starter cord kickback (rapid retraction) will pull hand and arm toward engine faster than you can let go which could cause broken bones, fractures, bruises, or sprains resulting in serious injury. • When starting the engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.
- Page 15 SAFETY This product has been designed with internal grounding or floating bonded neutral. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. DANGER Improper grounding can result in a risk of electrocution.
- Page 16 SAFETY Important Safety Instructions WARNING To reduce the risk of injury, read this operator’s manual completely before using. When using this product, the following basic precautions should always be followed. • Do not enclose the generator or cover it. The generator may become overheated if it is enclosed.
- Page 17 SAFETY • Keep children and all bystanders at a safe distance from work area. • It is absolutely essential that you know the safe and proper use of the power tool or appliance that you intend to use. All operators must read, understand and follow the tool / appliance owners manual.
- Page 18 ASSEMBLY ASSEMBLY Assembling the Accessory Kit NOTE: The wheels are not intended for over-the-road use. 1. Installing the wheels • Slide the axle through the hole in the center of the wheel. • Slide a washer onto the axle, then slide the axle into the wheel mounting hole as shown.
- Page 19 GENERATOR COMPONENTS Read this operator’s manual and safety rules before operating your generator. a. Hourmeter b. Low Oil Alert c. AC Breaker d. Circuit Breakers e. 50A Socket f. Engine Switch g. Battery “Intelli Charge” Port h. DC 12V i. DC Circuit Breaker j.
- Page 20 GENERATOR COMPONENTS IMPORTANT OPERATING INSTRUCTIONS WARNING ANYONE using or servicing this generator must read, understand, and follow all safety and operation instructions provided in the product manual. Failure to closely follow these instructions can result in circumstances leading to death, NOTICE Safety is our priority.
- Page 21 PREPARING THE GENERATOR Grounding Instructions DANGER Improper connection of the equipment grounding conductor can result in a risk of electrocution. Check with a qualified electrician if you are in doubt as to whether the unit is properly grounded for your local regulations. The ground terminal on the frame can be used to connect the generator to a suitable ground source.
- Page 22 PRE-OPERATION CHECKLIST Engine Oil Before checking or refilling oil, be sure generator is located on stable and level surface with engine stopped. 1. Remove oil dipstick Degrees Celsiusº(Outside) and check the engine oil level. 2. If oil level is below Full Synthetic 5W-30 the lower level line, refill with suitable...
- Page 23 PRE-OPERATION CHECKLIST WARNING DO NOT overfill the tank, leave room for the fuel to expand. If the fuel tank is over filled, fuel can overflow onto a hot engine and cause a FIRE or EXPLOSION. If fuel spills, wait until it evaporates before starting engine.
- Page 24 PRE-OPERATION CHECKLIST WARNING Keep area clear of flammables or other hazardous materials. • Keep generator at least 3ft (1m) away from buildings or other structures. Keep at least 5ft (152cm) of clearance on all sides of generator including overhead. • Only operate generators in a dry, well ventilated area. •...
- Page 25 STARTING YOUR GENERATOR Recoil Start CAUTION When starting the engine with the recoil start, set the toggle switch in the “ON” position before pulling the starter handle. 1. Make sure all appliances are disconnected from the generator. START 2. Move engine choke lever to the “START”...
- Page 26 STARTING YOUR GENERATOR Electric Start 1. Make sure all appliances are disconnected from the generator. 2. Turn the choke lever to the “START” position. (When the engine is warm or temperature is high, start engine with the choke lever in the “RUN” position). 3.
- Page 27 STARTING YOUR GENERATOR 1-2. For LPG • Connect the LPG gas hose to the propane fuel source. • Connect the small end of the LPG gas hose to the LPG regulator on the generator and then snug with a wrench to prevent leakage. •...
- Page 28 STARTING YOUR GENERATOR Recoil Start CAUTION When starting the engine with the recoil start, set the toggle switch in the “ON” position before pulling the starter handle. 1. Make sure all appliances are disconnected from the generator. 2. For recoil start, firmly grasp the recoil handle and pull slowly until increased resistance is felt.
- Page 29 OPERATION Using Electric Power WARNING Risk of electrocution. Make sure that the appliance generator. • DO NOT move the generator while it is running. Connecting Electrical Loads 1. Let engine run stable and warm up for a few minutes after starting. 2.
- Page 30 OPERATION/ STOPPING THE GENERATOR • Most electrical tools require 1.2 to 3 times their wattage for running under load during use. For example, a 5000 watt generator can power a 1800 to 4000 watt electrical tool. • Loads such as submersible pumps and air compressors require a very large force to start.
- Page 31 MAINTENANCE Maintenance Schedule CAUTION Make sure the engine is stopped before starting any maintenance, servicing or repair. NOTE: It is recommended to use ear protection when performing operation, maintenance and repair of the generator. Maintenance, replacement or repair of the emission control devices and systems must be performed by an authorized service provider.
- Page 32 MAINTENANCE Changing Engine Oil Change oil after the first 8 hours of operation. Thereafter it should be changed every 50 hours. 1. Drain oil by removing the drain plug and the oil filler cap while the engine is warm. 2. Reinstall the drain plug and fill the engine with oil until it reaches the upper level on the oil filler cap.
- Page 33 MAINTENANCE CAUTION Since the fuel (gasoline) will deteriorate with time, replace fuel (gasoline) with fresh fuel periodically; every three months or add a fuel stabilizer. Spark Arrester The spark arrester must be cleaned regularly to keep it functioning as designed. A clogged spark arrester: •...
- Page 34 TRANSPORTING WARNING To prevent fuel spillage due to the vibration and impact, never transport the generator with fuel (gasoline) in the tank. Secure the tank cap. To avoid the risk of the gasoline flammability, never leave the generator in an area exposed to direct sunlight or high temperatures for a long period time.
- Page 35 STORAGE DANGER NEVER store engine with fuel in tank indoors or in enclosed, poorly ventilated areas where fumes may reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer or other gas appliance. Drain fuel into approved container outdoors, away from open flame.
- Page 36 A-iPower will provide warranty for any of its products purchased through any authorized A- iPower dealer in North America to the original purchaser and will be warranted against defects in material or workmanship for a period of two (2) years for Consumer use from date of purchase, subject to exclusions noted herein.
- Page 37 Warranty limits and Implications and Consequential Damages A-iPower is not obligated to cover any loss of time, use of product, freight cost, or any other incidental or consequential claim from the use of this product. This warranty is in Lieu of all other warranties, express or implied This warranty gives you specific legal rights which vary from state to state.
- Page 38 A-iPower Corp. MERCHANDISE RETURN GUIDELINES All products must be returned in original or equivalent packaging. Improperly packaged • returns will not be accepted. Must have adequate packing for transportation • Federal Law requires that all machines that utilize gasoline, oil, or other flammable liquids •...
- Page 40 A-iPower Corp. 10887 Commerce Way Unit A Fontana, CA 92337 USA 32082-01217-01 If you need assistance with the assembly or operation of your generator please call 1-855-888-3598 or visit our website at: http://www.a-ipower.com...
