  • Page 1 HH-808 8 Channel Thermocouple Data Logger User Manual...

  • Page 2: Table Of Contents

    (HH-808) 8 Channel Thermocouple Data Logger User Manual Table of Contents Section 1 - Introduction ......................3 Section 1.1 - Features ..............................3 Section 1.2 - Application .............................. 3 Section 1.3 - Data Logger Model ..........................3 Section 1.4 - Temperature Data Logger Appearance ....................4 Section 1.5 - Temperature Data Logger Screen ......................

  • Page 3: Section 1 - Introduction

    Section 1 - Introduction The HH-808 thermocouple temperature data logger is a high precision instrument which has passed all required strict calibrations and professional testing. The datalogger supports 8 types of thermocouples (K, J, E, T, R, S, N, B), including a thermocouple temperature compensation function, and can measure temperature from -200 to 1800°C.

  • Page 4: Section 1.4 - Temperature Data Logger Appearance

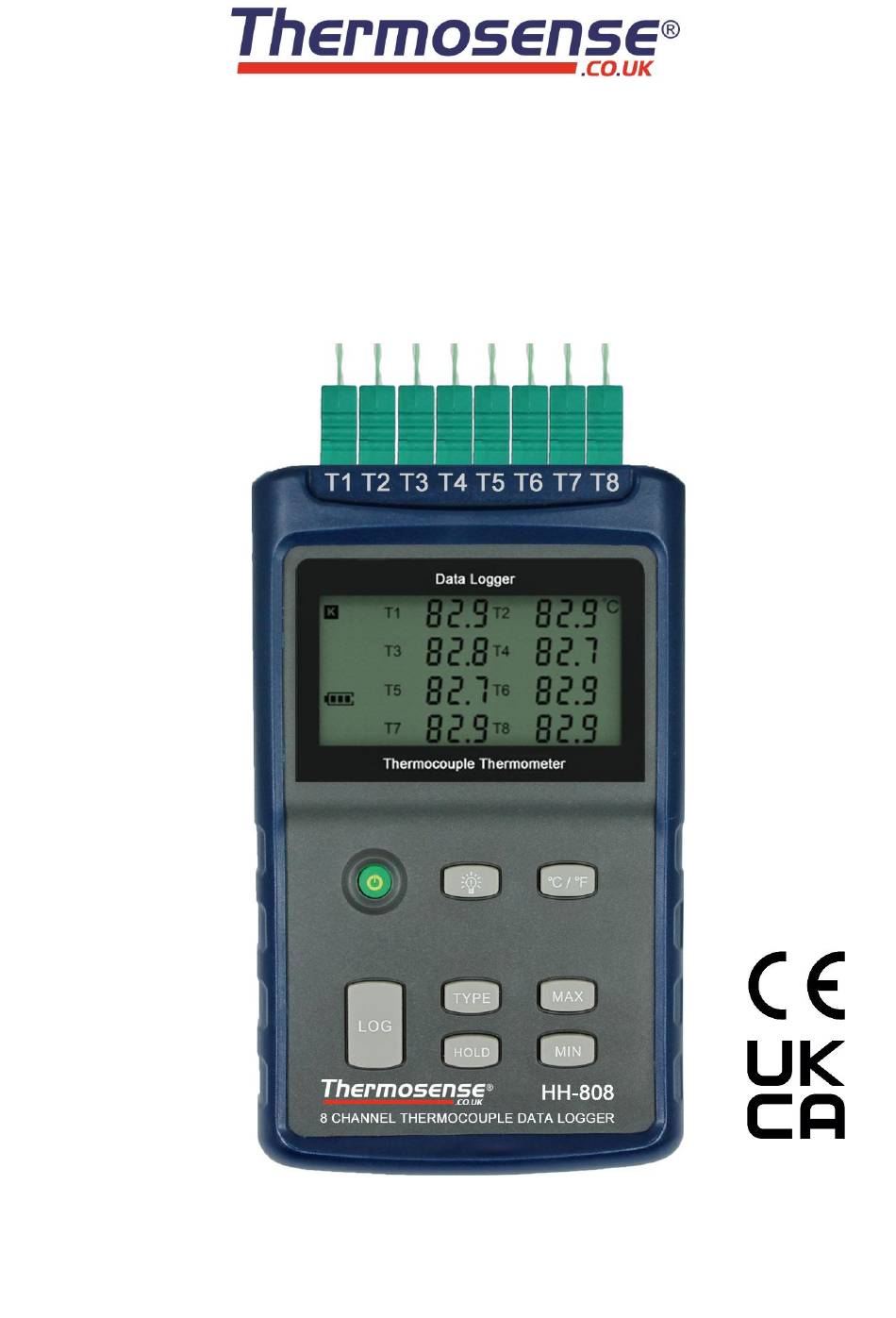

    (HH-808) 8 Channel Thermocouple Data Logger User Manual Section 1.4 - Temperature Data Logger Appearance LCD Screen MAX: Display maximum recorded value for all channels Power On/Off MIN: Display minimum recorded value for all channels LOG: Recording function button USB & 9V DC power interface...

  • Page 5: Section 1.6 - Button Function Instructions

    (HH-808) 8 Channel Thermocouple Data Logger User Manual Section 1.6 - Button function instructions Power ON/OFF (1) When logger power is off, push this button to turn the logger on. (2) When logger power is on, push this button to turn the logger off.

  • Page 6: Section 2 - Installation And Instruction

    (HH-808) 8 Channel Thermocouple Data Logger User Manual Section 2 - Installation and Instruction This section will explain how to use the software to upload, read, configure and synchronize the settings, how to turn the logger on/off and enter/exit the logging mode, and how to delete and download the logging data.

  • Page 7: Section 2.2 - How To Read And Configure The Logger

    (HH-808) 8 Channel Thermocouple Data Logger User Manual Section 2.2 - How to Read and Configure the Logger 2.2.1 - Read and Configure the Logger's Settings 1. Turn on and connect the data logger to the computer 2. Start the LogPro software on the PC 3.

  • Page 8: Setting Parameters

    (HH-808) 8 Channel Thermocouple Data Logger User Manual 2.2.2 - Setting Parameters Setting Parameter Text Description Name English letters or numbers Name of the logger Must be the same as the one in the label 10 characters of logger Sampling Interval (secs)

  • Page 9: Section 2.3 - Turn Instrument On/Off & Start/Stop Logging

    (HH-808) 8 Channel Thermocouple Data Logger User Manual Section 2.3 - Turn Instrument On/Off & Start/Stop Logging Turn On Instrument: press the power button and the LCD display will turn on. Start Logging: when the instrument is on and in standby mode (the “LOG” logo is not displayed), press the “LOG”...
  • Page 10 (HH-808) 8 Channel Thermocouple Data Logger User Manual Turn Off Instrument: press the power button and the LCD display will turn off. Log Full: the device won't record data if the memory is full. You must download the data and delete it using the LogPro software.

  • Page 11: Section 2.4 - Download The Logging Data

    (HH-808) 8 Channel Thermocouple Data Logger User Manual Section 2.4 - Download the Logging Data 1. Connect the data logger to the computer via the USB cable 2. Start LogPro software on the PC 3. From the toolbar select Connect 4.

  • Page 12: Section 2.5 - View Data Sheet

    (HH-808) 8 Channel Thermocouple Data Logger User Manual Section 2.5 - View Data Sheet Click the “Data List” button on the toolbar and the data list window is shown below. The data pane lists the data samples collected by the logging device.

  • Page 13: Section 2.7 - Delete Records In The Logger

    (HH-808) 8 Channel Thermocouple Data Logger User Manual Section 2.7 - Delete Records in the Logger • From the toolbar select Delete Section 2.8 - Check the Save File in File list • From the toolbar select File List •...

  • Page 14: Section 3 - Attention

    (HH-808) 8 Channel Thermocouple Data Logger User Manual Section 3 - Attention • The ABS plastic shell should be retardant, but not resistant to acid and alkali • If repair is needed, only an authorized technician can do the repair •...
