Thermosense HH-521BT Instruction Manual

4-channel thermocouple data logger (with bluetooth) (types k, j, t, n, e, r, s)
Hide thumbs
Table of Contents

Advertisement

Quick Links

HH-521BT
4-Channel Thermocouple Data Logger (with Bluetooth)
(Types K, J, T, N, E, R, S)
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HH-521BT and is the answer not in the manual?

Questions and answers

Related Manuals for Thermosense HH-521BT

Summary of Contents for Thermosense HH-521BT

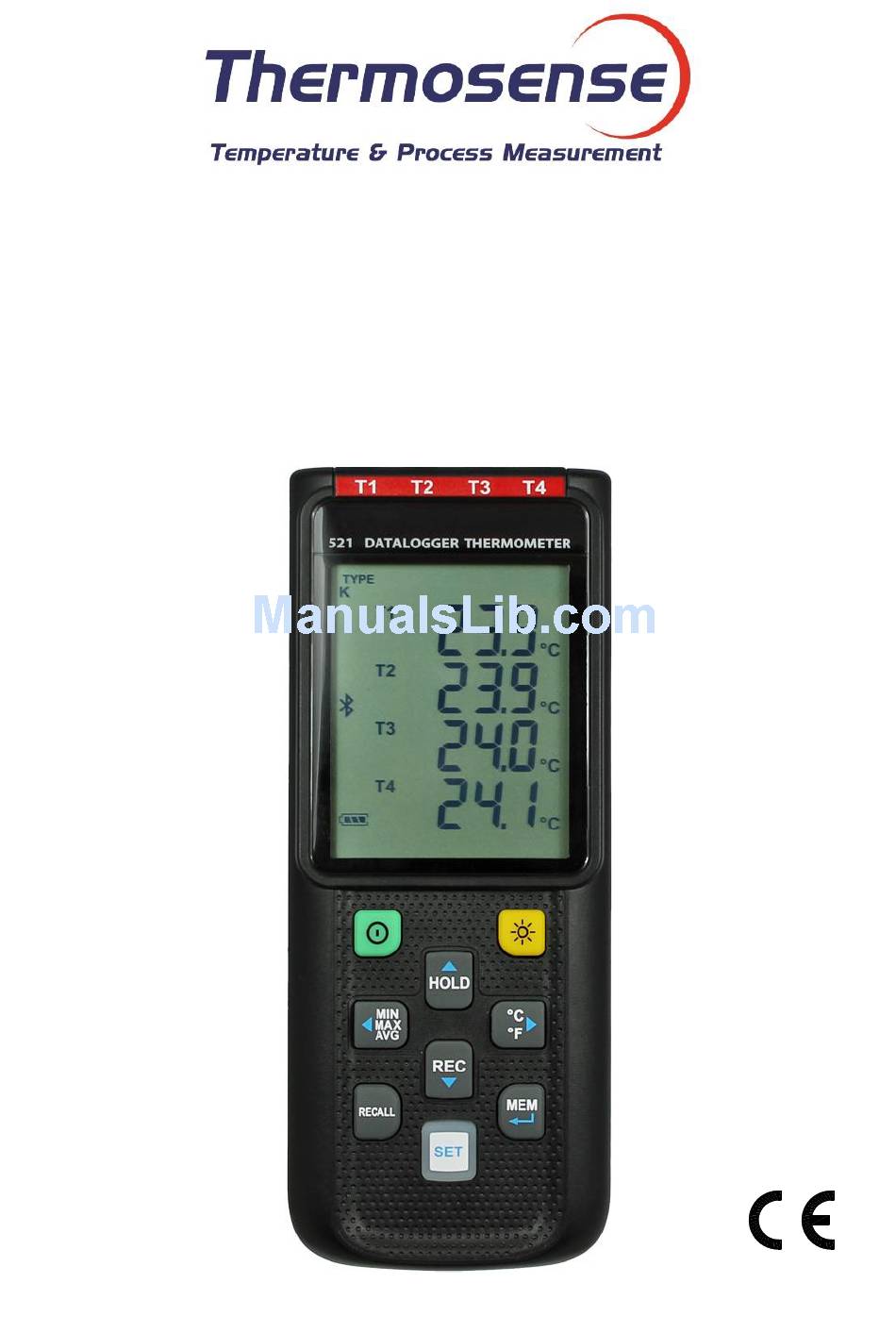

  • Page 1 HH-521BT 4-Channel Thermocouple Data Logger (with Bluetooth) (Types K, J, T, N, E, R, S) Instruction Manual...

  • Page 2: Table Of Contents

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 CONTENTS 1. GENERAL DESCRIPTION ......................2 2. SAFETY INFORMATION ......................... 2 3. FEATURES ............................2 4. SPECIFICATIONS ........................... 3 5. SYMBOL DEFINITION & BUTTON LOCATION ................4 6. BUTTON INSTRUCTIONS ......................6 6.1 Power ON/OFF Button ......................

  • Page 3: General Description

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 1. GENERAL DESCRIPTION Thank you for choosing our data logger thermometer. To ensure the safety and the best performance of this instrument, we recommend you to read and follow the manual carefully before operation.

  • Page 4: Specifications

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 4. SPECIFICATIONS K: -200°C ~1372°C (- 328°F ~ 2501°F) Measurement range： J: -200°C~1000°C (- 328°F ~ 1832°F) E: -200°C~750°C (- 328°F ~ 1382°F) T: -200°C~400°C (-328 °F ~ 752°F) N:-200°C ~1300°C(- 328°F ~ 2372°F) R, S: 0°C ~1767°C( 32°F ~ 3212°F)

  • Page 5: Symbol Definition & Button Location

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 5. SYMBOL DEFINITION & BUTTON LOCATION : Battery condition indicator : Minimum indicator : Maximum indicator : Average indicator : Setup option indicator : Auto Power Off enabled indicator : Recording data logger indicator...
  • Page 6 HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 (1) Thermocouple Input (9) RECALL Saved Reading Button (2) Display Screen (10) SETUP Button (3) Power ON/OFF Button (11) MEM Button (Set 100 Memory) (4) Back Light Button (12) USB Interface (5) MAX MIN AVG Button...

  • Page 7: Button Instructions

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 6. BUTTON INSTRUCTIONS 6.1 Power ON/OFF Button Press the button to turn on the meter. Press and hold button for 3 seconds to turn off. 6.2 Backlight Button Press to turn on the LCD backlight. This makes it easier to read in dark environment. Press again to turn off backlight.

  • Page 8: Max/Min/Avg Button

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 6.7 MAX/MIN/AVG Button Under this mode, the unit simultaneously monitors and stores the maximum, minimum and average value in the memory. The unit will keep updating/refreshing the data. To start: button. “...
  • Page 9 HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 Fig.2 Set thermocouple type. Fig.3 Set interval time for data logging. Fig.4 Set offset to compensate for probe errors. Fig.5 Set alarm point. Fig.6 Set T1-T2 subtraction mode. Thermosense Limited www.thermosense.co.uk Page 8...

  • Page 10: Menu Description

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 Fig.7 Set auto power off time. Fig.8 Set system clock. 7.3 Menu Description 7.3.1 Set Bluetooth ON/OFF Press the button to turn on or off. (see Fig.9 or Fig.10) Fig.9 Fig.10 Note: When Bluetooth function is turned ON, it is entering standby/pairing mode, the blue LED built in flashes once every 3 seconds.

  • Page 11: Setting Interval Time For Data Storing

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 7.3.3 Setting interval time for data storing (1) Press the button to set minute or second. (see Fig.12) (2) Press the button to increase / decrease value. Note: Set interval time range: 1 Second (00:01) to 60 minutes 59 seconds (60:59) Fig.12...

  • Page 12: Set T1-T2 Subtraction Mode

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 7.3.6 Set T1-T2 subtraction mode Press the button to turn on or off T1-T2 subtraction mode. (see Fig.17 or Fig.18) Note: When setting T1-T2 subtraction mode on, T1-T2 will display at the bottom of LCD. (see Fig.19) Fig.19...

  • Page 13: Clearing Instant Read-Out Memory

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 7.5 Clearing Instant Read-out Memory (1) Turn off the unit. (2) Press and hold button and then press power button to turn on the unit. " and “ SUrE (3) Keep holding (power) buttons, then LCD will show "...

  • Page 14: Bluetooth Adapter Installation

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 8.2 Bluetooth Adapter Installation (1) Power off (2) Open the cover of the Bluetooth cabinet by a screwdriver. (3) Install the Bluetooth adapter into its compartment, push up the adapter to the connector.

  • Page 15: Testlink Se-521 Software

    HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 10. TESTLINK SE-521 SOFTWARE 10.1 The SE-521 package contains:  Software CD disk  Micro USB cable 10.2 System Required: Windows XP/ VISTA/ Windows 7/ Windows 8/ Windows 10 10.3 Minimum Hardware Required: ...
  • Page 16 HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 10.5 How to save the recorded real time data to a file? (1) Click the graph window you want to save and the graph window will become active, then choose File | Save from main menu or click from the tool bar .
  • Page 17 HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 10.6 How to load the recorded data from the memory of 4 Channel Thermometer and save it to a file? (1) Power on the 4 Channel Thermometer. (2) Press the “ ” button of the meter to start recording data.
  • Page 18 HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 DataLogger: By opening the DataLogger Window, the user can load recorded data of meter to PC in this window. Output To Graph - Graphing tabular data. Com port of bluetooth device –...
  • Page 19 HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 for examples: It will transfer first data set to graph on the right hand side. The user can also click at any other data set to choose that set for graph. Graph: Tool Bar: - Display or hide Statistic1.
  • Page 20 HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 - When selected, the mouse cursor will become a cross sign when moving to the graph, click on the graph to mark a cross sign on the graph. This is available only when " Split "...
  • Page 21 HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 Note: When the Split is unchecked, graph will use T1 as the Y axis display range. - To Undo the Zoom You can Zoom this graph by using mouse: To Zoom: (1) Press the left mouse button and drag the cursor to select the new extents.
  • Page 22 HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 10.10 Bluetooth Pairing: 10.10.1 Via ACTION CENTER (Windows 10) (1) Open [ ACTION CENTER ]; (2) Click [ All Settings ]; (3) Click [ Devices ]; (4) Select [ Bluetooth ]; (5) Turn On;...
  • Page 23 HH-521BT 4-Channel Thermocouple Data Logger Instruction Manual v1.1 10.10.2 Via Control Panel (1) Click [ START ] and then click [ Devices and Printers ]; (2) Click [ Add a device ]; (3) Choose BT-XXXXX Bluetooth Adapter , then click [ Next ].
  • Page 24 Thermosense Limited 11 Eghams Court, Boston Drive, Bourne End, Bucks, SL8 5YS, UK Telephone: +44 (0)1628 531166 Fax: +44 (0)1628 531499 Email: sales@thermosense.co.uk Web: www.thermosense.co.uk...
