Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner's Manual for future reference.
Tools Needed
• 5/16" nut driver
• Pliers
• Slotted screwdriver

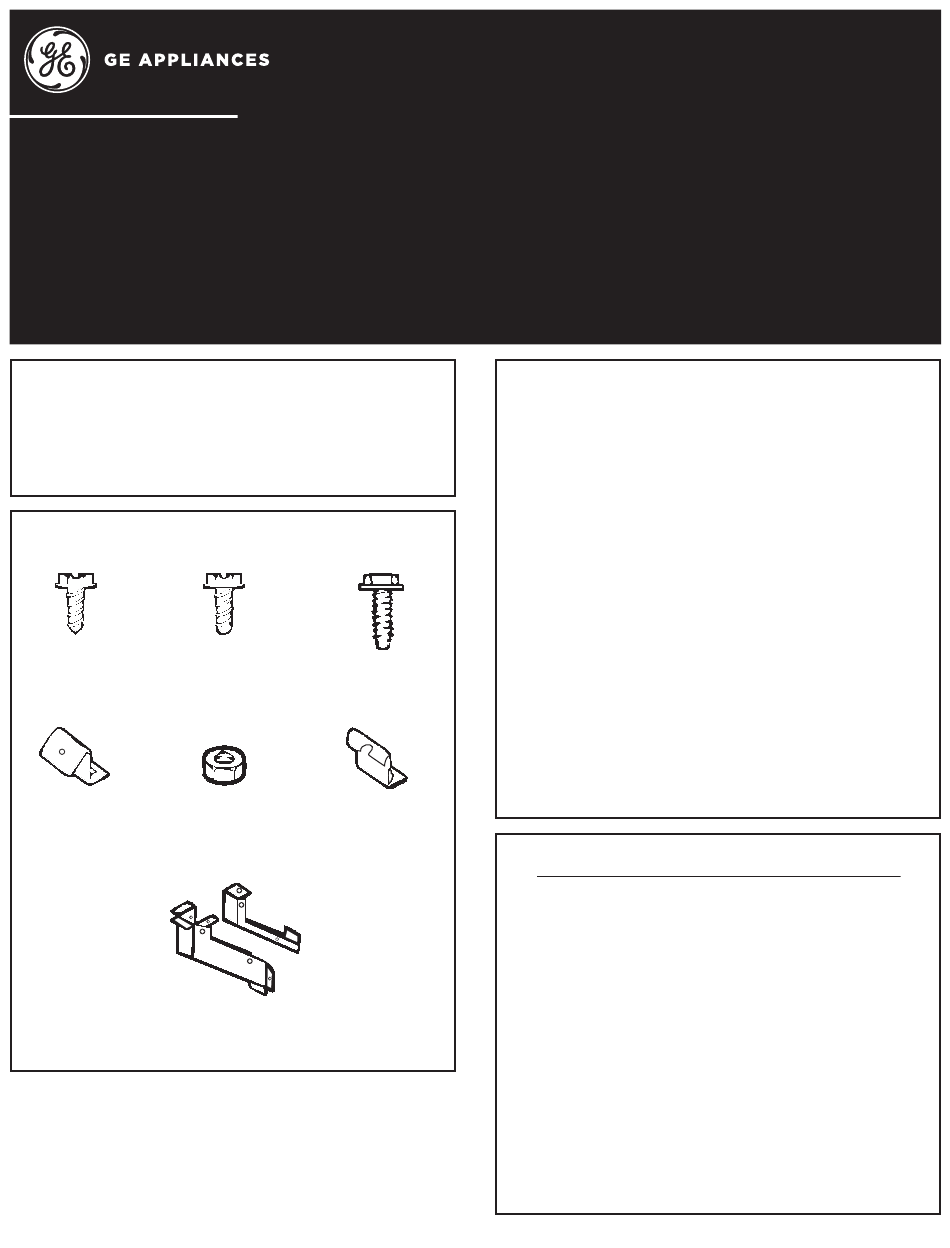

Parts Included In Bag with Sub-Base
Type A
Type B
10 required
2 required
Type D
4 nuts
2 mounting clips
for metal case
Chaseway
Type C
2 required
Type E
2 mounting clips
for molded case
and cover
Installation Instructions
for your new
RAK204U, RAK204E15, RAK204E20,
RAK204E30, RAK204D15P, RAK204D20P,
RAK204D30P, RAK204D15PA, RAK204D15C,
RAK204D20PA, RAK204D20C, RAK204D30PA,
RAK204D30C
Sub-base
Important Notes
• This unit must be properly grounded.
• Read this instruction before installing the
sub-base to the molded or metal case.
• CAUTION: The sub-base must be assembled to
the case before securing the case in the wall.
• ELECTRICAL REQUIREMENTS:
1. Electrical wiring may enter the sub-base
through any of the knockout holes provided in
the sub-base bottom or rear.
2. Refer to the unit nameplate for branch circuit
requirements.
3. All wiring should be done in accordance with
the local electrical codes and regulations.
4. Not approved for aluminum wire application.
5. If electrical wiring is placed in or against
the sub-base enclosure, the sub-base must
be grounded. Grounding holes have been
provided in the back surface of the enclosure.
See diagram. Green grounding screws and
securing nuts are included.
Kit Number
RAK204U
RAK204E15
RAK204E20
RAK204E30
RAK204D15P
RAK204D20P
RAK204D30P
RAK204D15PA
RAK204D15C
RAK204D20PA
RAK204D20C
RAK204D30PA
RAK204D30C
RAK205CW
RAK4002A
RAK4002C
1
Description
NON-ELECTRICAL SUB-BASE
265/277V
15A
265/277V
20A
265/277V
30A
230/208V
15A
230/208V
20A
230/208V
30A
230/208V
15A
230/208V
15A
230/208V
20A
230/208V
20A
230/208V
30A
230/208V
30A
CHASEWAY
(For use with RAK204U)
JUNCTION BOX
JUNCTION BOX
Pub No. 30-7774-6
03-16 GE
