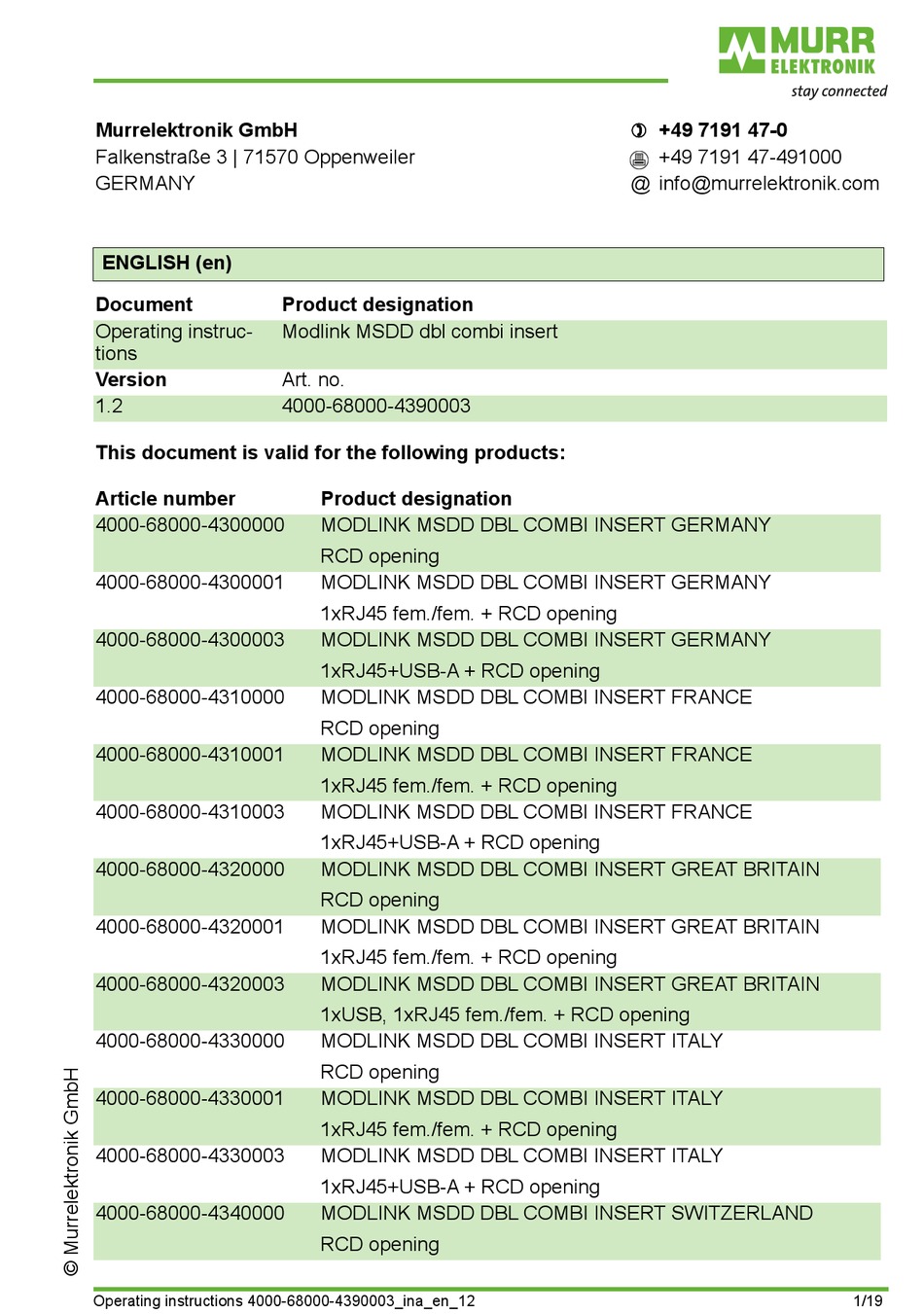

Murrelektronik GmbH
Falkenstraße 3 | 71570 Oppenweiler
GERMANY
ENGLISH (en)
Document
Operating instruc-
tions
Version
1.2
This document is valid for the following products:
Article number
4000-68000-4300000
4000-68000-4300001
4000-68000-4300003
4000-68000-4310000
4000-68000-4310001
4000-68000-4310003
4000-68000-4320000
4000-68000-4320001
4000-68000-4320003
4000-68000-4330000
4000-68000-4330001
4000-68000-4330003
4000-68000-4340000
Operating instructions 4000-68000-4390003_ina_en_12
Product designation
Modlink MSDD dbl combi insert
Art. no.
4000-68000-4390003
Product designation
MODLINK MSDD DBL COMBI INSERT GERMANY
RCD opening
MODLINK MSDD DBL COMBI INSERT GERMANY
1xRJ45 fem./fem. + RCD opening
MODLINK MSDD DBL COMBI INSERT GERMANY
1xRJ45+USB-A + RCD opening
MODLINK MSDD DBL COMBI INSERT FRANCE
RCD opening
MODLINK MSDD DBL COMBI INSERT FRANCE
1xRJ45 fem./fem. + RCD opening
MODLINK MSDD DBL COMBI INSERT FRANCE
1xRJ45+USB-A + RCD opening
MODLINK MSDD DBL COMBI INSERT GREAT BRITAIN
RCD opening
MODLINK MSDD DBL COMBI INSERT GREAT BRITAIN
1xRJ45 fem./fem. + RCD opening
MODLINK MSDD DBL COMBI INSERT GREAT BRITAIN
1xUSB, 1xRJ45 fem./fem. + RCD opening
MODLINK MSDD DBL COMBI INSERT ITALY
RCD opening
MODLINK MSDD DBL COMBI INSERT ITALY
1xRJ45 fem./fem. + RCD opening
MODLINK MSDD DBL COMBI INSERT ITALY
1xRJ45+USB-A + RCD opening
MODLINK MSDD DBL COMBI INSERT SWITZERLAND
RCD opening
+49 7191 47-0
+49 7191 47-491000
@ info@murrelektronik.com
1/19
Advertisement
Related Manuals for Murrelektronik MODLINK MSDD DBL COMBI INSERT
Summary of Contents for Murrelektronik MODLINK MSDD DBL COMBI INSERT
- Page 1 1xRJ45 fem./fem. + RCD opening 4000-68000-4310003 MODLINK MSDD DBL COMBI INSERT FRANCE 1xRJ45+USB-A + RCD opening 4000-68000-4320000 MODLINK MSDD DBL COMBI INSERT GREAT BRITAIN RCD opening 4000-68000-4320001 MODLINK MSDD DBL COMBI INSERT GREAT BRITAIN 1xRJ45 fem./fem. + RCD opening 4000-68000-4320003 MODLINK MSDD DBL COMBI INSERT GREAT BRITAIN 1xUSB, 1xRJ45 fem./fem.
- Page 2 1xRJ45+USB-A + RCD opening 4000-68000-4400001 MODLINK MSDD DBL COMBI INSERT FRANCE SC 1xRJ45 fem./fem. + RCD opening 4000-68000-4410001 MODLINK MSDD DBL COMBI INSERT FRANCE WITH LED 1xRJ45 + RCD opening 4000-68000-4410003 MODLINK MSDD DBL COMBI INSERT FRANCE WITH LED 1xRJ45+USB-A + RCD opening...
-
Page 3: Products And Accessories
Damage to the device and/or the system. NOTE Other technical information and notes of Murrelektronik GmbH. RECOMMENDATION Notes with this symbol are recommendations of Murrelektronik GmbH. PRODUCTS AND ACCESSORIES This symbol indicates accessories or product recommendations. Instruction for An arrow marks instructions. - Page 4 If you want to dispose of the product, it may be returned free of charge to Murrelektronik GmbH. This also applies to the original packaging and batteries or accumulators. Devices contaminated with hazardous substances will not be taken back, neither for repair nor for disposal.
- Page 5 NOTE Interventions in the hardware and software of the device dare, if they are not described in this document, only be carried out by qualified person- nel from Murrelektronik GmbH. Designated use The device has been designed and manufactured for: ...
- Page 6 Technical Data Technical Data Socket yellow VDE type, Socket yellow VDE type, FK - according to DIN VDE 0620 Parameter Conditions Value Rated voltage 250 V Frequency 50 Hz Rated current 16 A Number of poles 2 + protective earthing contact Connection type Spring clamp terminals...
- Page 7 Technical Data Socket France type, SK Socket France type, SK - according to NFC 61-314 Parameter Conditions Value Rated voltage 250 V Frequency 50 Hz Rated current 16 A Number of poles 2 + protective earthing contact Connection type Screw terminals (SK) Connecting cable ≤2 x 4 mm²...
- Page 8 Technical Data Socket Italy type, SK Socket Italy type, SK - according to CEI 23-50 Parameter Conditions Value Rated voltage 250 V Frequency 50 Hz Rated current 16 A Number of poles 2 + protective earthing contact Connection type Screw terminals (SK) Connection cross-section ≤2 x 4 mm Stripped insulation...
- Page 9 Technical Data Socket England type, Socket England type, SK - British Standard BS 1363 Parameter Conditions Value Rated voltage 250 V Frequency 50 Hz Rated current 13 A Number of poles 2 + protective earthing contact Connection type Screw terminals (SK) Connecting cable ≤2 x 4 mm Stripped insulation...
- Page 10 Technical Data Socket China type, SK Socket China type, SK Parameter Conditions Value Rated voltage 250 V Frequency 50 Hz Rated current 10 A Number of poles 2 + protective earthing contact Connection type Screw terminals (SK) Connecting cable single-wire ≤2 x 4.0 mm Connecting cable finely stranded...
- Page 11 Technical Data RJ45 female / fe- male 8-pole RJ45 female / female, shielded Parameters Conditions Value Rated voltage UL Rating ≤42.4 V 30 V Operating current UL Rating ≤175 mA Specification According to DIN EN 50173- Cat 5e (100 MHz) 1;2011 Connection type Both sides...
- Page 12 Technical Data Environmental characteristics Climatic Parameter Conditions Value Installation height Above sea level ≤2000 m Climate class EN 50178 Article number Parameter Conditions Value 4000-68000-4390003 Storage tempera- -10 °C ... +60 °C ture 4000-68000-4310000 4000-68000-4320000 -5 °C ... +50 °C Operating tem- 4000-68000-4330000 perature...
- Page 13 Technical Data Article number Parameter Conditions Value 4000-68000-4400001 Storage tempera- -10 °C ... +70 °C ture -5 °C ... +50 °C Operating tem- perature Article number Parameter Conditions Value 4000-68000-4410001 Storage tempera- -10 °C ... +70 °C ture 4000-68000-4410003 -5 °C ... +35 °C Operating tem- perature Electrical safety...
- Page 14 Technical Data Mechanical data Dimension of insert Parameter Conditions Value Dimension (H) 87,5 mm Dimension (B) 115,5 mm Dimension (T) 69 mm Fig. 3-1: Full equipment, exemplary assembly 14/19 Operating instructions 4000-68000-4390003_ina_en_12...
- Page 15 Mounting Mounting Fig. 4-1: Mounting in mounting frame, exemplary assembly Operating instructions 4000-68000-4390003_ina_en_12 15/19...
- Page 16 Mounting Fig. 4-2: Mounting of RJ45 Fig. 4-3: Mounting of USB 0.5 Nm +/- 0.1 Nm Art.-No. 7000-98001-0000000 16/19 Operating instructions 4000-68000-4390003_ina_en_12...
- Page 17 Mounting NOTE The shielding plate has to be connected according to Directive EN 61439-1. NOTE Grounding strap (see Accessories), M4 and M5 toothed washers, M4 nut not included in scope of delivery. Grounding strap fastening 1 | M5 DIN 6797 2 | M4 3 | M4 DIN 6797 4 | M4 DIN 934...
- Page 18 Installation Installation WARNING! High electrical voltages Electric shock may cause life-threatening injuries. Only an electric installer is allowed to connect the device! Protective mea- According to IEC 60364 -Protection against electric shock sures during connection work WARNING! Risk of fire due to short circuit or overload This may result in death or serious injuries.
- Page 19 Clean soiled contacts using oil-free compressed air or a leather cloth only. Do not use contact spray. Accessories PRODUCTS AND ACCESSORIES You will find a wide range of products in our catalog or in our Murrelektronik online shop http://shop.murrelektronik.com Notes Operating instructions 4000-68000-4390003_ina_en_12 19/19...
